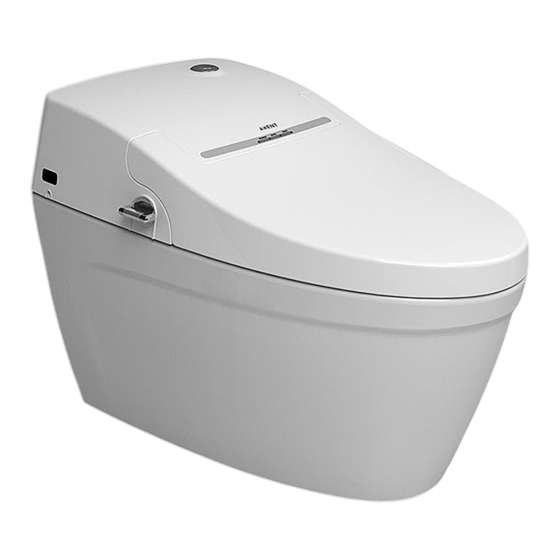

Axent COLIN User Manual

Hide thumbs Also See for COLIN:

Advertisement

Quick Links

Download this manual
COLIN
USER MANUAL

Advertisement

loading

Related Manuals for Axent COLIN

Summary of Contents for Axent COLIN

  • Page 1 COLIN USER MANUAL...
  • Page 2 THANK YOU Thank you for selecting an AXENT Switzerland product. To ensure proper installation, please review these instructions carefully before use. Care- fully unpack and examine the intelligent toilet before installation. For any questions, contact us at 1-800-769-4857. Thank you again for choosing AXENT.

  • Page 3: Table Of Contents

    USER MANUAL COLIN Safety Introduction Operation Maintenance Troubleshooting Technical Data Guarantee...

  • Page 4: Safety

    NORMAL USAGE The intelligent toilet’ s spray arm attachment should only be used for Any other usage will not be deemed as normal usage. AXENT under- the rear wash and front wash cleaning functions. The product may takes no liability for abnormal usage.
  • Page 5 SAFETY Keep the cord away from heated surfaces. Do not block the air vents on this product. Do not place the toilet on or by objects such as long window curtains that could potentially obstruct the air vents during normal usage. Keep air vents free of lint, hair, and other debris. Never use while sleepy or drowsy.
  • Page 6 SAFETY GROUNDING INSTRUCTIONS This product must be grounded when plugged in. The power cord on If repair or replacement of the power cord or plug is necessary, do not this product has a grounding plug and must be plugged into an outlet connect the grounding wire to either flat blade terminal.

  • Page 7: Introduction

    INTRODUCTION OVERVIEW Colin E006-0331 Model Remote Control...
  • Page 8 INTRODUCTION REMOTE CONTROL Activate the remote control by inserting the batteries. The remote is ready anytime someone is seated on the intelligent toilet. INDICATOR Blue Green When power supplied, POWER indicator on. When Power Saving is activated, SAVE INDICATOR on and HEAT indicator off. When Power Saving is deactivated, SAVE indicator off.
  • Page 9 INTRODUCTION Manual Flush MANUAL FLUSH The Manual Flush button is located on the top right side of the toilet tank. This flush requires no electrical power and can be used at any time to flush the toilet. SENSING AREA The intelligent toilet has a safety sensor to prevent accidental misuse or discharge of the bidet wand.

  • Page 10: Operation

    OPERATION REAR WASH Rotate the Control Knob clockwise after being seated to start the rear wash. - Rotate the Control Knob clockwise to increase the water volume, - Rotate the Control Knob counter clockwise to reduce the water volume. Rotate the Control Knob counter clockwise to the STOP position to stop the Rear Wash. FRONT WASH Rotate the Control Knob counter clockwise after being seated to start the Front Wash.
  • Page 11 OPERATION WAND OSCILLATING The washing wand can oscillate during use of the Rear Wash and Front Wash. OPERATION WITH THE CONTROL KNOB While the knob is in either the Rear Wash or Front Wash setting, press the button in the middle of the knob to activateor deactivate oscillating wand mode.
  • Page 12 OPERATION OPERATION WITH THE CONTROL KNOB Press the button on the knob after you are seated. Press on the button again to stop the dryer. The dryer will automatically stop after being unseated for more than 5 seconds. Note that the air is heated.
  • Page 13 OPERATION FLUSH The toilet may be flushed with the flush button, control knob, remote control, or automatically. MANUAL FLUSH Press the Manual Flush button to start the Flush. This flush requires no electrical power and can be used at any time to flush the toilet. OPERATION WITH THE CONTROL KNOB Hold down the button on the knob for 3 seconds to flush.
  • Page 14 OPERATION NIGHT LIGHT OPERATION WITH THE CONTROL KNOB While unseated, press the button on knob to turn on or off. OPERATION WITH THE REMOTE CONTROL While unseated, press « Light » to turn on or off. Light Stop Flush Dry temp Water temp Seat temp Temp setting...
  • Page 15 OPERATION POSITION The nozzle position can be controlled during use of the Rear wash and Front wash. OPERATION WITH THE REMOTE CONTROL Press « Nozzle forward » to move the nozzle forwards while washing. Nozzle forward Press « Nozzle backward » to move the nozzle backwards while washing. Nozzle backward Stop...
  • Page 16 OPERATION POWER SAVING Turning on the Power Saving mode will turn off the water heater until someone is seated. OPERATION WITH THE REMOTE CONTROL Press « Power saving » for 3 seconds to activate or deactivate the Power Saving mode. Power saving Stop Flush...
  • Page 17 OPERATION ADDITIONAL SETTINGS MODE PROFILE SETTING MODE ALLOWS YOU TO ADJUST THE TWO FOLLOWING SET- TINGS - Deodorizer setting ON / OFF - Auto flush setting ON / OFF ACTIVATE ADDITIONAL SETTINGS MODE Press « Oscillating » for 3 seconds. All icons on the remote will appear. Oscillating Stop Flush...

  • Page 18: Maintenance

    MAINTENANCE EMPTY CISTERN DURING VACATION If this product will not be in use for an extended period of time, please disconnect the electrical power. - Disconnect the electrical power. - Shut off the Inlet Valve. - Press Manual Flush button. WINTERIZATION Please ensure water temperatures will not drop below 39 °F.
  • Page 19 MAINTENANCE REPLACING THE ACTIVE CARBON FILTER Replace the active carbon filter approximately every 6 months. - Open the cover of the filter on the side of the toilet seat. - Relace the active carbon. - Reassemble back all parts. SPRAY ARM CLEANING - Pull the Spray Arm out.
  • Page 20 These steps ensure the performance of the AXENT Easy Clean finish for many years. Recommended cleaners for sanitary ceramic surfaces include acidic cleaners with a pH value between 1 and 4. Cleaners with a pH value between 5 and 8 are not always effective. AXENT strong rec-...

  • Page 21: Troubleshooting

    ELECTRICAL SHOCK! FATAL DANGER! Never open the unit in order to repair it yourself. Never modify the device or add any additional modules. The AXENT intelligent toilet carries live power when plugged in and opening it exposes those present to fatal danger! Warranty and liability claims as a result of wrong handling are specifically excluded.
  • Page 22 TROUBLESHOOTING Malfunction Cause Remedy Page Seat fails to sense seated Ensure proper seating over sensor in seat. Water temperature unstable Incoming water pressure Regulate incoming water pressure. beyond normal range Oscillation function on Attempted to start oscilla- Restart oscillation during wash cycle. nozzle does not work tion before wash cycle Dryer does not work...
  • Page 23 TROUBLESHOOTING REPLACEMENT PARTS LIST There will be instructions with the new replacement part. Intelligent Toilet Seat Remote Control Activated Carbon Filter Inlet Hose-set Three-way Valve Fill Valve Flush Valve AST Check Valve 12” Flange Bowl Mounting Hardware / Plug...

  • Page 24: Technical Data

    Any commitment by AXENT results from the respective warranty. These include the complete and authoritative warranty obligation AXENT. The statements in this manual do not constitute an extension or a restriction of the claims under the warranty provisions.

  • Page 25: Guarantee

    2. AXENT’ s sole and maximum liability for breach of its warranties herein is limited to the obligation, at AXENT’ s sole discretion to repair, replace, or make appro- priate adjustments to bring the product back to normal operating function. AXENT reserves the right to inspection of the product and verification of normal residential usage conditions during the warranty period before warranty claims are handled.
  • Page 26 Place serial number sticker here for reference: AXENT Corporation Ltd. www.axentbath.us support@axentproducts.com 1-800-769-4857...
