Summary of Contents for Elcometer 112

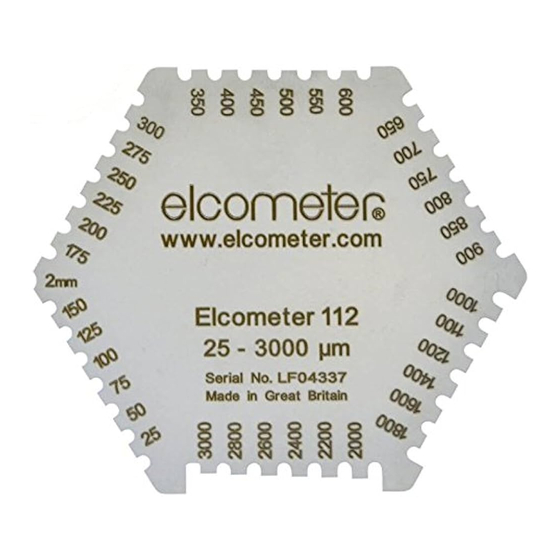

- Page 1 Elcometer 112 • 115 • 154 • 3230 • 3236 • 3238 Wet Film Combs and Wheel Operating Instructions...
- Page 2 (electronic, mechanical, magnetic, optical, manual or otherwise) without the prior written permission of Elcometer Limited. A copy of this Instruction Manual is available for download on our Website via www.elcometer.com Doc.No. TMA-0365 Issue 08 Text with Cover No: 19811...
- Page 3 Elcometer Wet Film Combs ........
- Page 4 An aluminium version is available (Elcometer 112AL); this model is not as accurate as the high precision versions but it does provide a low cost alternative for measurement of wet film thickness.
- Page 5 1250 µm (50 mils). Each comb has 10 measurements (or teeth) per comb. Elcometer 154 Made from ABS plastic, the Elcometer 154 Wet Film Combs are designed to be used only once and kept as a record of wet film thickness measurement for your ISO or customer requirements. Both Metric and Imperial values are on the same comb, 50 to 800 µm on one side, 2 to 32 mils on the other.
- Page 6 1.3 STANDARDS Your Elcometer Wet Film Comb/Wheel can be used in accordance with the following National and International Standards (depending upon model). Standard Elcometer Models 3230 3236 3238 AS/NZS 1580.107.3 ASTM D 1212-A ...
- Page 7 2 USING A WET FILM COMB Before you start, ensure your Elcometer Wet Film Comb is clean and undamaged. 1. Hold the comb perpendicular to the wet film and press the edge of the comb into the film until it is stable on the substrate.
- Page 8 3 USING A WET FILM WHEEL Take care to avoid damaging your Elcometer Wet Film Wheel. Damage to the circumference of the wheel will affect the readings and the gauge will have to be replaced. Before you start, ensure your Elcometer Wet Film Wheel is clean and undamaged. Read and understand the test procedure described in the applicable test standard.
- Page 9 Elcometer products are designed to give many years reliable service under normal operating and storage conditions. Regular calibration checks over the life of the gauge are a requirement of quality management procedures e.g. ISO 9000 and other standards. For checks and certification contact Elcometer or your local supplier. 6 TECHNICAL SPECIFICATION Material:...
- Page 10 7 ELCOMETER WET FILM COMBS Metric (microns) Imperial (mils) Model Scale (µm) Part Number Model Scale (mils) Part Number Elcometer 112: 25-3000 B112----1B Elcometer 112: 1-120 B112----2B Elcometer 112/AL: 25-3000 B112AL12473-3 Elcometer 112/AL: 1-118 B112AL12473-3 Elcometer 115: 20-325 B11529455M Elcometer 115/1:...
- Page 11 8 ELCOMETER WET FILM WHEELS Metric (microns) Imperial (mils) Model Scale (µm) Part Number Model Scale (mils) Part Number Elcometer 3230/1 0-25 K0003230M001 Elcometer 3230/1 K0US3230M001 Elcometer 3230/16 0-40 K0003230M016 Elcometer 3230/2 K0US3230M002 Elcometer 3230/2 0-50 K0003230M002 Elcometer 3230/3 K0US3230M003...
- Page 12 Elcometer Climatic Condition Testers • Elcometer Dry Coating Thickness Gauges For further information contact Elcometer or your local supplier. Details of Elcometer offices around the world are given on the outside cover of these operating instructions. Alternatively visit the Elcometer website, www.elcometer.com...
