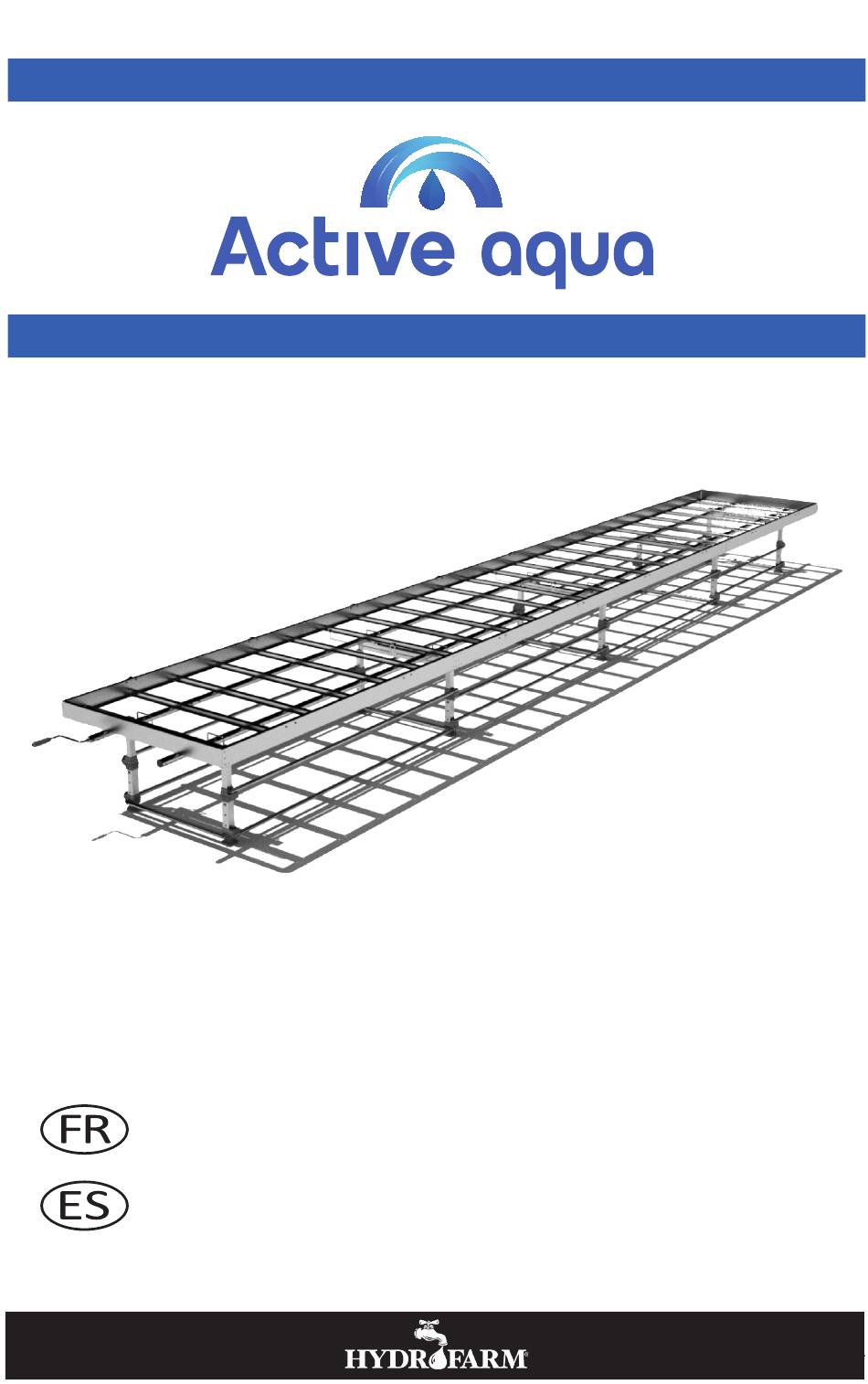

- Page 1 ASSEMBLY INSTRUCTIONS IZON ROLLING BENCH (KIT AAB42002 / AAB52002) AAB42002 – 4' width AAB52002 – 5' width Instructions en Français disponibles sur Hydrofarm.com Instrucciones en Español disponibles en Hydrofarm.com...
- Page 2 OVERVIEW START: It’s important to always start with Kit AAB42002/AAB52002 when you start building a new table. AAB42002 AAB52002 WARNING The Active Aqua Rolling Bench (AAB41001/AAB51001 and AAB42002/AAB52002) must always be placed on and anchored to a concrete surface that is level and void of any areas needing repair (cracked).
-
Page 3: Parts List
PARTS LIST PART DESCRIPTION PART DESCRIPTION Bolt (M6*10L) Roling Tube B Bolt (M6*20L) Side Panel A Bolt (M6*50L) Side Panel B Bolt (M6*80L) Tray Beam A Bolt (M6*90L) Tray Beam B Nut (M6) Connector ALSO INCLUDES ASSEMBLY TOOLS: Washer (M6) Bolt (M8*65L) Hex Wrench 4mm (x2) Nut (M8) - Page 4 ASSEMBLY STEP 1: GET THE EXTRA SET OF LEGS from the AAB41001/AAB51001 box First of all, open the kit AAB41001/AAB51001 box and remove all of the components shown highlighted in blue below. The blue highlighted components need to be used for the first section assembly of AAB42002/AAB52002.
- Page 5 ASSEMBLY ASSEMBLY STEP 2: ADJUST THE LEGS PART DESCRIPTION PART DESCRIPTION Bolt (M8*65L) Washer (M8) Nut (M8) Adjust leg to desired height The bench height can be adjusted to be 24.5" (fully extended as shown), 22.2" (middle position), or 19.9" (bottom position)
- Page 6 ASSEMBLY ASSEMBLY STEP 3: ASSEMBLE THE BRIDGE PART DESCRIPTION PART DESCRIPTION Bolt (M6*20L) Bridge Washer (M6) Small U-Rod Tube Roller Leveler...
- Page 7 ASSEMBLY STEP 4: ASSEMBLE THE LEGS PART DESCRIPTION PART DESCRIPTION Bridge Assembly...
- Page 8 ASSEMBLY STEP 5: INSTALL THE SHORT BEAM PART DESCRIPTION PART DESCRIPTION Bolt (M6*90L) Short Beam Nut (M6) Leg Assembly Washer (M6) Foot...
- Page 9 ASSEMBLY STEP 6: INSTALL THE LONG BEAMS PART DESCRIPTION PART DESCRIPTION Bolt (M6*50L) Long Beam Leg Assembly Bolt (M6*80L) w/Short Beam Nut (M6) Washer (M6)
- Page 10 ASSEMBLY STEP 7: INSTALL THE ROLLING TUBES PART DESCRIPTION PART DESCRIPTION Bolt *M6*50L) Rolling Tube A Nut (M6) Rolling Tube B Washer (M6)
- Page 11 ASSEMBLY STEP 8: ASSEMBLE THE TABLE PART DESCRIPTION PART DESCRIPTION Bolt (M6*10L) Tray Beam A Side Panel A Tray Beam B Side Panel B...
-
Page 12: Step 9: Install The Table
ASSEMBLY STEP 9: INSTALL THE TABLE PART DESCRIPTION Table top assembly... - Page 13 ASSEMBLY STEP 10: SET THE FIRST TABLE IN PLACE PART DESCRIPTION First table...
- Page 14 ASSEMBLY STEP 11: CONNECT TWO TABLES PART DESCRIPTION PART DESCRIPTION Bolt (M6*10L) Washer (M6) Bolt (M6*50L) Connector Nut (M6) Repeat STEPS 1–9 (except for the blue components in those steps) to install more Kit AAB42002/AAB52002.
- Page 15 ASSEMBLY STEP 12: CONNECT MULTIPLE TABLES You can install multiple sections (AAB42002/AAB52002), up to 47' total length, by repeating STEPS 2–9 and STEP 11.
- Page 16 ASSEMBLY STEP 13: INSTALL KIT AAB41001 Install the Kit AAB41001/AAB51001 after you installed the correct amount of Kit AAB42002/AAB52002. The installing of Kit AAB41001/AAB51001 is the same as the other except the Side Panels of the Kit AAB41001/AAB51001 are on top of the Side Panels of the Kit AAB42002/AAB52002.
- Page 17 ASSEMBLY STEP 14: INSTALL THE START PLATE PART DESCRIPTION PART DESCRIPTION Bolt (M6*10L) Start Plate...
- Page 18 ASSEMBLY STEP 15: INSTALL THE GUIDE WHEELS PART DESCRIPTION PART DESCRIPTION Bolt (M6*20L) #B-A Guide Wheel A Washer (M6) #B-B Guide Wheel B The Guide Wheels need to be in the first Tray Beam.
- Page 19 ASSEMBLY STEP 16: INSTALL THE U-RODS PART DESCRIPTION PART DESCRIPTION Bolt (M6*20L) U-Rod...
-
Page 20: Step 17: Install The Handle
ASSEMBLY STEP 17: INSTALL THE HANDLE PART DESCRIPTION PART DESCRIPTION Bolt (M6*10L) Rod Retainer Bolt (M6*50L) Handle Rod Nut (M6) Handle Washer (M6) Round Cap... - Page 21 ASSEMBLY RESULT: KIT AAB41001/AAB51001 and AAB42002/AAB52002...
- Page 22 ADJUSTMENT ADJUSTMENT: HEIGHT AND SLOPE To adjust the height of the table, unscrew the M8 bolt and choose the right height before rescrewing the bolt (STEP 1). To adjust the slope of the table, screw and unscrew the big bolt of the leveler (STEP 3).
- Page 23 ADJUSTMENT ASSEMBLY ADJUSTMENT: HEIGHT These are the different height settings depending on the three holes on the legs. The ±1.575" is caused by the adjustment made by the plastic screw on the leveler. You can add or subtract 1.575" of the height setting.
- Page 24 SLIDING SLIDING: LATERAL TRAVELING The maximum table traveling is 9" on each side for a 4-ft table and 10" on each side for a 5-ft table..
- Page 25 ADJUSTMENT ADJUSTMENT: RANGE OF AAB41001/AAB51001...
- Page 26 ASSEMBLY TRAY TRAY: TRAY COMPATIBILITY The 4' bench fits a standard 4' wide tray with ½" space on each lateral side. The 5' bench fits a standard 5' wide tray with ½" space on each lateral side.
- Page 27 ASSEMBLY LENGTH LENGTH: LENGTH FOR THE SMALLEST ADJUSTABLE TABLE POSSIBLE LENGTH: MAX LENGTH...
-
Page 28: Limited Warranty
; les limites ou exclusions mentionnées ci-dessus peuvent donc ne pas être applicables à votre cas. Hydrofarm se réserve le droit de réparer ou remplacer le moniteur AAB42002 et AAB52002 couvert par cette garantie si celui-ci est renvoyé au lieu d’achat d’origine. Pour solliciter le service de garantie, veuillez renvoyer le moniteur AAB42002 et AAB52002 avec sa facture et son emballage à...
