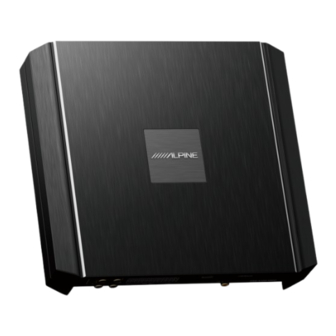

Alpine PXE-X120-10DP Manual

12-sound track high sound quality audio processor
Hide thumbs Also See for PXE-X120-10DP:

Advertisement

Quick Links

Download this manual
12-Sound Track High Sound Quality Audio
● For iPhone users, please search "PXE-X120-10DP Tuning APP" in the APP Store to
download and install; for Android users, please scan the QR code on the right to download
and install the app directly.
● Or you may use a wired controller sold separately for easy control of the device.
PXE-X120-10DP
Processor
Tuning APP

Advertisement

loading
Need help?

Need help?

Do you have a question about the PXE-X120-10DP and is the answer not in the manual?

Questions and answers

Related Manuals for Alpine PXE-X120-10DP

Summary of Contents for Alpine PXE-X120-10DP

  • Page 1 12-Sound Track High Sound Quality Audio Processor ● For iPhone users, please search "PXE-X120-10DP Tuning APP" in the APP Store to download and install; for Android users, please scan the QR code on the right to download and install the app directly.
  • Page 3 Contents Operating Instructions Description of APP Type of precautions ............2 Description of mobile APP - Homepage (full sound field) ..8 Description of mobile APP - Homepage (sound zone) ..... 9 Description of mobile APP - Delay ........... 10 Copyright notice Description of mobile APP - Channel ........
  • Page 4 Any function that may influence your attention should be Copyright notice The text mark and logo of Bluetooth® are the registered trademarks held by Bluetooth SIG, Inc. Alpine Electronics has been authorized to use these text mark and logo. Other trademarks and names all belong to their holders.
  • Page 5 Tools that may be required Panel removal tool Socket Electric drill Torx screwdriver Phillips screwdriver Sleeve wrench Wrench Wire cutter Wire crimper Wire stripper Spectrum analyzer Oscilloscope Accessory list 2×13P Input line 2×12P Input line 2×8P Power cord USB 2.0 cable Machine tooth screw ×4 Self-tapping screw ×4 Mounting bracket...
  • Page 6 Diagram of device interfaces External Bluetooth Wired controller or Alpine media player (sold separately) External power amplifier (sold separately) Vehicle audio player (sold separately) Vehicle b tt...
  • Page 7 When High-Definition Bluetooth is selected as the input signal or External Bluetooth input PXE-X120-10DP mobile Tuning APP is successfully connected, interface the Bluetooth icon is constant on. Wired controller interface A system extension interface.
  • Page 8 Wire pin arrangement Yellow 16AWG ......+12V Yellow 16AWG ......+12V Yellow 16AWG ......+12V Yellow 16AWG ......+12V Yellow 16AWG ......+12V Yellow 16AWG ......+12V Black 16AWG ......GND Black 16AWG ......GND Black 16AWG ......GND Black 16AWG ......GND Black 16AWG ......GND Black 16AWG ......GND Blue/White 20AWG ....REM OUT Red 20AWG ......ACC White/Black 20AWG ....Output channel 1- White 20AWG ......Output channel 1+...
  • Page 9 Wire pin arrangement White/Black 22AWG....High level input channel 1- White 22AWG......High level input channel 1+ White/Black 22AWG....High level input channel 2- White 22AWG......High level input channel 2+ White/Black 22AWG....High level input channel 3- White 22AWG......High level input channel 3+ White/Black 22AWG....High level input channel 4- White 22AWG......High level input channel 4+ White/Black 22AWG....High level input channel 5- White 22AWG......High level input channel 5+...
  • Page 10 Description of mobile APP - Homepage (full sound field) 1 Mute button Mute the master volume 2 Master volume Pull the fader up and down to adjust the master volume. Master audio Switch master audio source (optical, coaxial, high level, Bluetooth and low level). source 4 Sound zone switch Switch sound zone on or off (off by default).
  • Page 11 Description of mobile APP - Homepage (sound zone) Click to turn on the sound zone switch in Homepage for sound zone setting, you can match the audio sources of the front and rear sound fields of sound zone I and sound zone II flexibly and freely. For example, set front sound field of sound zone I to CH1~CH6 and select high level as master audio source, set rear sound field of sound zone II to CH7~CH12 and select optical as master audio source, then CH1~CH6 of front sound field will play music from high level audio source and CH7~CH12 of rear sound field will play music from optical audio...
  • Page 12 Description of mobile APP - Delay Select the corresponding speaker, push the fader left and right on the pop-up Speaker window to adjust the delay, or click "+" and "-" to adjust the delay. Delay group There are 6 delay groups to choose from for each channel. Units of delay to choose from include ms, cm, and in.
  • Page 13 Description of mobile APP - Channel The debugging modes to choose from include “Copy channel EQ / volume from Debugging left to right” or “Copy channel EQ / volume from right to left”. Locking You can lock the current channel type. Select the divider slope (-6dB/Oct, -12dB/Oct, -18dB/Oct -24dB/Oct -30dB/Oct, - Slope 36dB/Oct, -42dB/Oct, or -48dB/Oct).
  • Page 14 Description of mobile APP - EQ 1 Reset EQ Reset EQ setting. Restore EQ, Direct Switch the tuned EQ data to direct state, click it again to restore the EQ data before Direct EQ setting. Slide left and right to select the output channel for EQ adjustment. There are 12 3 Output channel channels to choose from.
  • Page 15 Description of mobile APP - Frequency combination 1 Output channel Slide left and right to select the output channel for combined frequency setting. There are 12 channels to choose from. 2 Active or passive Keep the default setting as "Passive". Warning: if changed, you will lose the sound input mixer setting of this channel.
  • Page 16 Interface of PC software (full sound field)
  • Page 17 Description of PC software (full sound field) Temperature display Detect the temperature on the device surface. File Load or save scene files on PC, load or save all scene files. DSP high pitch protection, firmware update, noise gate, built-in power amplifier, Options restore factory settings, shutdown delay, switch between English and Chinese, check the version number.
  • Page 18 Interface of PC software (sound zone)
  • Page 19 Description of PC software (sound zone) When sound zone switch is turned on, the sound zone interface is shown in the figure above 1 Sound zone switch Turn on sound zone switch to make sound zone settings. You can match the audio sources of the front and rear sound fields of sound zone I and sound zone II flexibly and freely on the Homepage.
  • Page 20 Specification parameters Dynamic range ≥100dB Signal to noise ratio (RCA) ≥100dB High level CH1~CH4: 58uVrms, CH5~CH8: 113uVrms, Background noise CH9~CH10: 115uVrms; RCA: 8.8uVrms Channel resolution ≥80dB ≤0.01% Input voltage High level: 30Vpp; RCA: 6.5Vpp High level CH1~CH4: 28Vpp, CH5~CH8: 40Vpp, Output voltage CH9~CH10: 58Vpp;...
  • Page 21 Functional parameters 12-Channel high level, 2-channel RCA audio, high-definition Bluetooth, Input signals optical/coaxial Output signals 10-Channel high level, 2-channel RCA audio Signal gain of output channel Range: mute, -60dB~+6dB Type: parametric EQ, graphic EQ Frequency: 20Hz~20kHz, resolution: 1Hz Output signal equalizer Q value (slope or gradient): 0.404~28.852 Gain: -12.0dB~+12.0dB, resolution: 0.1dB~0.5dB~1.0dB Each output channel is equipped with an independent multi-order high-...
