Summary of Contents for Alpine PXE-R600

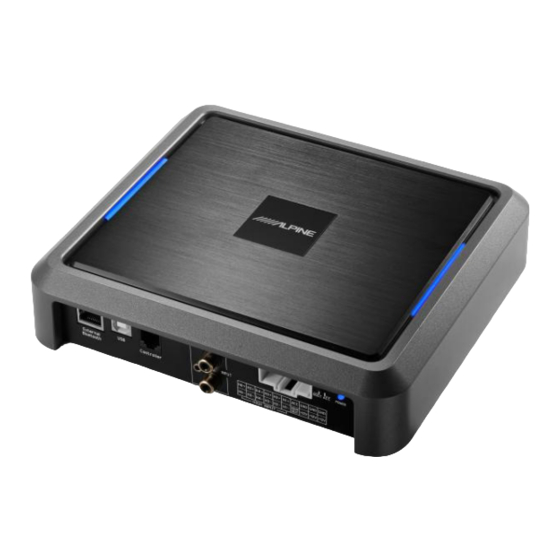

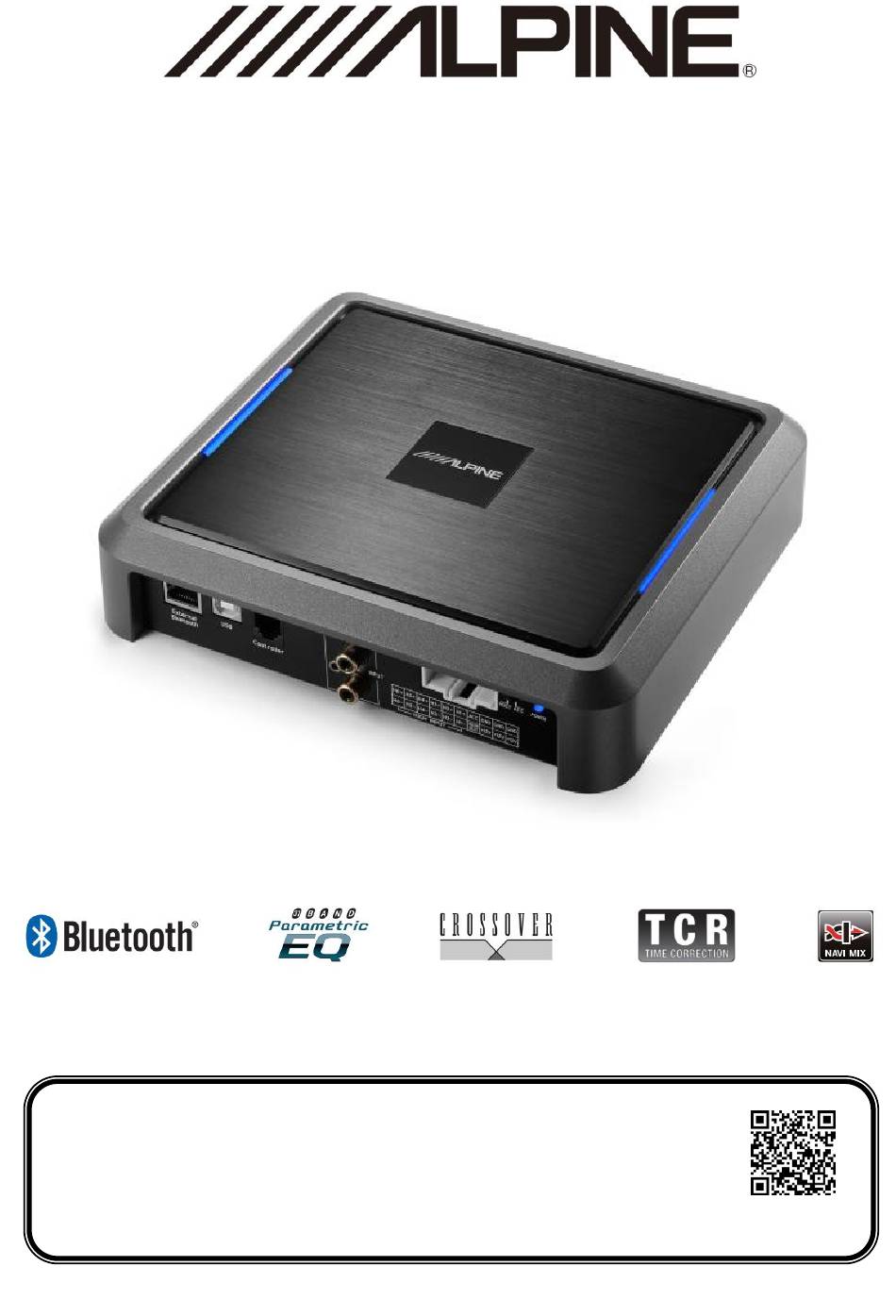

- Page 1 Built-in 8-Channel Power Amplifier Audio Processor PXE-R600 • If you are an iPhone mobile phone user, please search the PXE-R600 tuning APP in APPStore and download for installation • Android mobile phone users can scan the QR code on the right to...
-
Page 2: Table Of Contents
Contents Contents Operating Instructions Function Menu ........8 Warning ..........1 Sound Source Selection ....9 Caution ..........1 Master Volume Settings ..... 9 Sound Effect Setting ......9 Machine Introductions Settings of Output Channel, Mute, and Combined Adjusting ..9 Machine Interface Diagram ....2 Settings of Channel Delay, Introductions for Machine Phase Position and Volume ..... -
Page 3: Operating Instructions
Please clean this product regularly with a dry soft Please return this product to Alpine's authorized cloth. If the dirt is difficult to remove, please wet the dealer, or to a nearby Alpine service center for repair. soft cloth with water only. Any other solvent may dissolve it. -
Page 4: Machine Introductions
Machine Introductions Machine Interface Diagram wire controller Bluetooth module On-board CD/DVD player (sold separately) On-board CD/DVD player External power amplifier... -
Page 5: Introductions For Machine Interfaces And Functions
CD/DVD player. ⑭ Vehicle-mounted CD/DVD player +12V +12V +12V Accessories List The following accessories shall be included in the PXE-R600 packing case. For any accessory missing, please contact Alpine's authorized dealer. Accessories Quantity Bluetooth module 1 (PC) Bluetooth module X 1... -
Page 6: Instructions For Mobile Phone App
Instructions for Mobile Phone APP Device Connection After successfully installing the PXE-R600APP on the mobile phone, start the PXE-R600 device. The Bluetooth icon shows red [ ] indicateing that Open your mobile phone, go to "Settings" → "Enable the Bluetooth of the mobile phone is disconnected; The Bluetooth"... -
Page 7: Delay Interface
Output Channel Settings Delay Interface Type: Click the Output Channel Type button ] and select the channel type from the pull-down menu. High frequency, intermediate frequency, intermediate and low frequency, low frequency and full frequency are available for front speaker; High frequency, intermediate frequency, intermediate and low frequency, low frequency and full frequency are available for rear speaker;... -
Page 8: Frequency Combination Interface
Frequency Combination The channel EQ has two interfaces: graphic equalizer (GEQ) and parametric equalizer (PEQ). Interface GEQ Interface PEQ Interface There are 31 segments of EQ for adjustment. Drag the fader up and down or click the gain value, drag On the frequency combination interface, the volume the fader left and right or click the "+"... -
Page 9: Instructions For The Computer Software
Instructions for the Computer Software After installing the PXE-R600 software, you can tune and set parameters of the PXE-R600 device on your computer. * This function is applicable for manufacturers and dealers only. Notes for Software Installation • The software can only be used with Microsoft® Windows® operating system. -
Page 10: Function Menu
Main Interface Function Menu 2. Click "Option" : The connection icon shows red [ ] before it is online, and shows green [ ] after it is successfully online. Menu bar: File, Option and Encryption function. A. Select "Frequency Combination Settings" to 1. -
Page 11: Sound Source Selection
* When the current sound source is selected, it E. Select "Language" to switch between Chinese cannot be superimposed with this sound surce and English. F. Select "About" to view the device version. mode, otherwise the auxiliary sound source will be invalid. -
Page 12: Settings Of Channel Delay, Phase Position And Volume
and full frequency are available for rear speaker; B. Delay unit: millisecond, centimeter, inch; Front and center-channel high frequency, front C. Adjustment range: 0.000~8.000 ms, 0~277 and center-channel intermediate frequency, rear cm, 0~109 inches. and center-channel high frequency and rear 2. -
Page 13: Introductions For Frequency Combination Settings And Functions
Introductions for Frequency Combination Settings and Functions After setting the sound source signal on the PXE-R600 device and entering the audio processor, divide the frequency to the volume of each output channel. The volume of each sound source of the channel can be adjusted to achieve audio mixing and frequency mixing. - Page 14 Example 2: High level active two divided-frequency mixing input, stereo full frequency output of the original car host. High Front frequency CH1 left full left frequency output Intermedi- ate and low frequency High level High two divided- frequency Front frequency CH2 right full right output of the...
-
Page 15: Instructions For Wire Controller
Instructions for Wire Controller The PXE-R600 device can be tuned and set by the Figure 4-1. Turn the knob to select the auxilliary sound RUX-C600 wire controller. Please connect the wire source: high level(Hi.L), Bluetooth (BT), low level controller correctly to the device before using and make (AUX), turn off. -
Page 16: Specification Parameter
Specification Parameter Dynamic range ≥100dB Signal to noise ratio (RCA) ≥100dB Ground noise High level: 90.96uVrms; RCA: 7.66uVrms Channel resolution ≥80dB Total harmonic distortion ≤0.01% Input voltage High level: 32Vpp; RCA: 8Vpp Output voltage 9Vpp Rated power 8CH×25W (4Ω,14.4V,1kHz,10%THD) Maximum power 8CH×50W (4Ω,14.4V,1kHz,10%THD) AUX input/output sensitivity (RCA) 1:1.125 (no power amplification) -
Page 17: Hazardous Substance Composition
南京市栖霞区经五路兴都晴轩中 1 幢 108 室 210003 025-86630368 138-5819-6041 杭州维修站 杭州市富阳区文教路 80-6 号 311400 189-5751-6008 厦门维修站 厦门市后埭溪路 248 号六、七、八号店面 361004 0592-5170118 乌鲁木齐维修站 乌鲁木齐市青年路 308 号 830002 0991-8871299 南昌维修站 南昌市新洲路 98 号丰源嘉会朝阳居一楼店面 330029 0791-86566758 成都维修站 成都市成华区驷马桥东立国际广场 B1 区 1333 号 610051 028-84397796 获取最新最详细的维修站信息，请登录 www.alpine.com.cn 查询。...
