Page 3: Intended Use

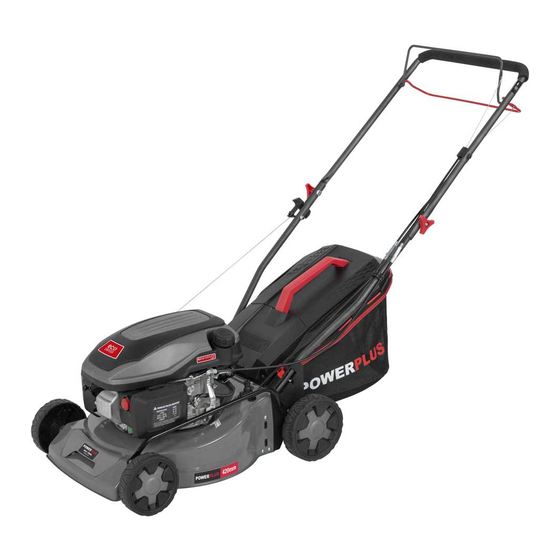

POWEG63773X LAWNMOWER: GASOLINE OPERATED 145CC 420MM POWEG63773X INTENDED USE The purpose of this lawn mower is to cut grass. This lawn mower has been designed for cutting grass areas in a domestic garden. Not suitable for professional use. WARNING! Read this manual and general safety instructions carefully before using the appliance, for your own safety. -
Page 4: Symbols
POWEG63773X SYMBOLS In this manual and/or on the machine the following symbols are used: In accordance with Denotes risk of essential applicable safety personal injury or standards of European damage to the tool. directives. Do not touch a hot silencer or cylinder. - Page 5 POWEG63773X Poisonous fumes or toxic gases- Keep hands and feet away. Asphyxiation Petrol is flammable. Attention – petrol is highly Allow engine to cool for flammable! Explosion at least 2 minutes hazard! Do not spill fuel! before refuelling. Mandatory use of eye Wear gloves.
-
Page 6: General Safety Rules
POWEG63773X Warning: Keep the safety signs clear and visible on the equipment. Replace the safety signs if they are missing or illegible. GENERAL SAFETY RULES WARNING: When using petrol tools, basic safety precautions, including the following, should always be followed to reduce the risk of serious personal injury and/or damage to the unit. -
Page 7: Maintenance And Storage
POWEG63773X ▪ Be careful when working with the lawn mower on slopes and nearby rubbish dumps, ditches or embankments. ▪ Mow only in daylight or in good artificial light. ▪ Avoid operating the equipment in wet grass, where feasible. ▪... -
Page 8: Safety Warnings
POWEG63773X ▪ To reduce the fire hazard, keep the engine, silencer, battery compartment and petrol storage area free of grass, leaves, or excessive grease. ▪ Check the grass catcher frequently for wear or deterioration. ▪ Replace worn or damaged parts for safety. -
Page 9: Folding Handle (Fig. 1)
POWEG63773X Folding handle (Fig. 1) ▪ Insert the lower handle (16) into the corresponding holes in the deck (17) and fix the lower handles with the two locking knobs (15). (Fig. 1A) ▪ Screw the upper handle (18) with the two locking knobs. (Fig. 1B) Caution: Traction and starter cables must always be positioned on top of the cross bar of the push handle. -
Page 10: Operation
POWEG63773X CAUTION: Wipe off any spilled oil or fuel. Do not store, spill or use gasoline near an open flame CAUTION: Alcohol blended fuels (called gasohol or using ethanol or methane can attract moisture which leads to separation and formation of acids during storage). -
Page 11: Stop Engine
POWEG63773X 10.2 Stop engine ▪ Release the drive lever (3). ▪ Release the brake lever (2). WARNING! The blade will continue to rotate for a few seconds after the engine has stopped. Disconnect the spark plug cap if the lawnmower is to be left unattended. -
Page 12: 11 2 In 1
POWEG63773X 2 IN 1 These lawn mowers can be retrofitted from its normal function, based on the application purpose: ▪ From lawn mower with rear discharge to mulching mower or as side-discharge mower. 11.1 What is mulching When mulching, the grass is cut in one working step, then finely chopped and returned to the grass strip as natural fertilizer. -
Page 13: Blade
POWEG63773X The replacement of the cutting device should be done by a qualified specialist! Rework or sharpening blades is not recommended unless it is done by a repair service or a similarly qualified specialist! ▪ Keep all nuts, bolts and screws tight to be sure the equipment is in safe working condition. -
Page 14: Replacement
POWEG63773X 12.2.2 Replacement Unclip the plastic edges of the bag from the frame, remove the bag from the upper cover. Insert the fabric bag into the upper cover, clip the plastic edges of the bag onto the frame. 12.3 Water Nozzle (Fig. 14) The left side of the mower deck (17) is fitted with a water nozzle (14) for washing the deck. -
Page 15: To Clean Air Filter (Fig. 17)
POWEG63773X 12.6 To clean air filter (Fig. 17) NOTICE: Operating the engine without an air cleaner, or with a damaged air cleaner, will allow dirt to enter the engine, causing rapid engine wear. ▪ Press down on the cover tab and remove the cover. -
Page 16: Technical Data
POWEG63773X TECHNICAL DATA Model POWEG63773X Cylinder capacity 145cc Engine power 2.6kW Engine type 4-stroke Rotation speed 2800min Cutting width 420mm Collect box / bag Cutting height 20-70 mm Number of height positions Self-propelled Oil tank capacity 0.5l Fuel tank capacity... -
Page 17: Transportation
We also disclaim all liability for any bodily injury resulting from inappropriate use of the tool. ▪ Repairs may only be carried out by an authorised customer service centre for Powerplus tools. ▪ You can always obtain more information at the number 00 32 3 292 92 90. -
Page 18: Environment
VARO – Vic. Van Rompuy N.V. – Joseph Van Instraat 9 – 2500 Lier – Belgium, declares that, product Lawnmower: Gasoline operated 145 cc 420 mm trade mark PowerPlus model POWEG63773X is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards.
