Page 1: Table Of Contents
POWXG2017 APPLICATION ................... 3 DESCRIPTION ................... 3 PACKAGE CONTENT LIST .............. 3 SYMBOLS ..................4 GENERAL SAFETY WARNINGS ............4 Work area ........................4 Personal safety ......................4 Engine tool use and care ..................5 Service ........................5 PETROL SAFETY WARNINGS ............5 FUEL .................... - Page 2 POWXG2017 Air filter (Fig. 21)...................... 11 Fuel tank ........................11 Fuel filter ........................11 Spark plug ....................... 11 Gear box ........................11 Carburettor ......................12 Repair ........................12 STORAGE ..................12 STARTING UP AFTER LONGER PERIODS OF INACTIVITY ..12 MAINTENANCE TABLE ..............
-
Page 3: Application

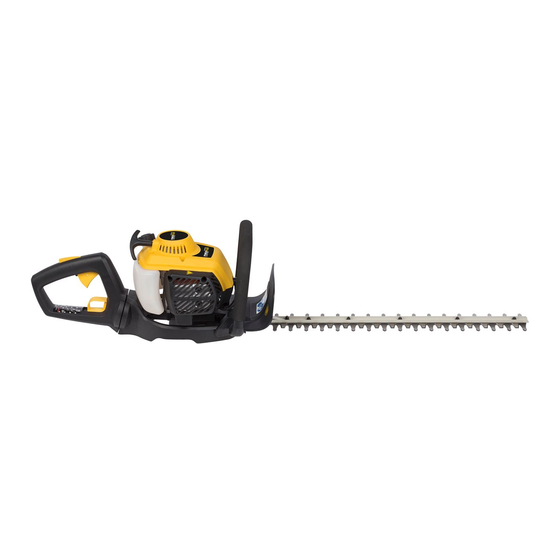

POWXG2017 HEDGE TRIMMER 26cc 600mm POWXG2017 APPLICATION The hedge trimmer should be used only for trimming hedges, bushes and shrubs. Other uses of the trimmer not mentioned in this manual may damage the trimmer or seriously injure the operator and are therefore expressly excluded from the application range. It is not designed for commercial use. -
Page 4: Symbols
POWXG2017 SYMBOLS The following symbols are used in this manual and/or on the machine: Denotes risk of personal injury or damage to the Wear a mask In dusty conditions tool. Never operate the machine in the rain or in damp or wet conditions. -
Page 5: Engine Tool Use And Care
POWXG2017 ▪ Remove any adjusting key or wrench before turning the tool on. A wrench or a key left attached to a rotating part of the tool may result in personal injury. ▪ Do not overreach. Keep proper footing and balance at all times. This enables better control of the tool in unexpected situations. -
Page 6: Fuel
POWXG2017 FUEL Note: this product is not supplied with fuel-oil mixture in the engine! Before operating this product it is essential to fill it with fuel-oil mixture! Fuel and oil mixture For best results use regular unleaded petrol mixed with 2-stroke air-cooled engine oil on a ratio of 40:1. -
Page 7: Storage Of Fuel
POWXG2017 Storage of fuel ▪ Fuel cannot be stored for an unlimited period of time. ▪ Purchase only the quantity required for a 4-week operating period. ▪ Use approved fuel storage containers only. Recommended petrol ▪ Some standard petrols are enriched with oxygen-containing compounds such as alcohol or ether to comply with regulations on clean air. -
Page 8: Starting/Stopping
POWXG2017 Starting/stopping Keep the blades clear of everything around, since they will start moving as soon as the engine starts. Cold starting (Fig. 8 – 9) 8.2.1 If the engine is cold or if it has been stopped for more than 5 minutes or if fuel has been added to the engine. -
Page 9: Stopping The Engine
POWXG2017 NOTE: If the engine does not start, the engine may be flooded. Flooding is caused by too much fuel mixture applied at the wrong time and can prevent a product from starting. DO NOT prime the product again. Follow below procedure: Set the ignition switch (11) to "STOP"... -
Page 10: After Use
POWXG2017 NOTE: When shaping it is advisable to achieve a trapezoidal shape (Fig. 19). A trapezoidal cut corresponds to the natural growth of plants and results in optimal hedge growth, as it will expose more light to the lower end of the hedge. -
Page 11: Air Filter (Fig. 21)
POWXG2017 ▪ Keep the cutting device (1) clean and free of debris. Remove trimmings. ▪ Apply a small amount of suitable lubricant on the cutting device (1) to retain a good cutting performance (Fig. 20). ▪ Keep the cutting device (1) sharp. Have a worn or damaged cutting device replaced with a new one of the same type by a qualified specialist. -
Page 12: Carburettor
POWXG2017 Carburettor The carburettor is pre-set by the manufacturer. Should it be necessary to make any changes please contact an authorised service centre or a similarly qualified person. Do not attempt to make any adjustments by yourself. Repair This product does not contain any parts that can be repaired by the consumer. Contact an authorised service centre or a similarly qualified person to have it checked and repaired. -
Page 13: Technical Data
POWXG2017 TECHNICAL DATA Cylinder capacity 26cc Engine power 0.75kW Rotation speed 10000min Clutch engagement speed 4000min Idle speed 3000min Cutting length 550mm Engine stroke type 2 stroke Fuel tank capacity 0.46l Fuel mixing ratio 40:1 Spark plug type Torch Knife distance... -
Page 14: Trouble Shooting
POWXG2017 TROUBLE SHOOTING Suspected malfunctions are often due to causes that the user can fix themselves. Therefore, check the product using this section. In most cases the problem can be solved quickly. WARNING! Only perform the steps described within these instructions! All... -
Page 15: Environment
We also disclaim all liability for any bodily injury resulting from inappropriate use of the tool. ▪ Repairs may only be carried out by an authorised customer service centre for Powerplus tools. ▪ You can always obtain more information at the number 00 32 3 292 92 90. -
Page 16: Declaration Of Conformity
POWXG2017 DECLARATION OF CONFORMITY VARO N.V. - Joseph Van Instraat 9 - BE2500 Lier - BELGIUM, declares that, Product: Hedge trimmer 26cc Trade mark: POWERplus Podel: POWXG2017 is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards.
