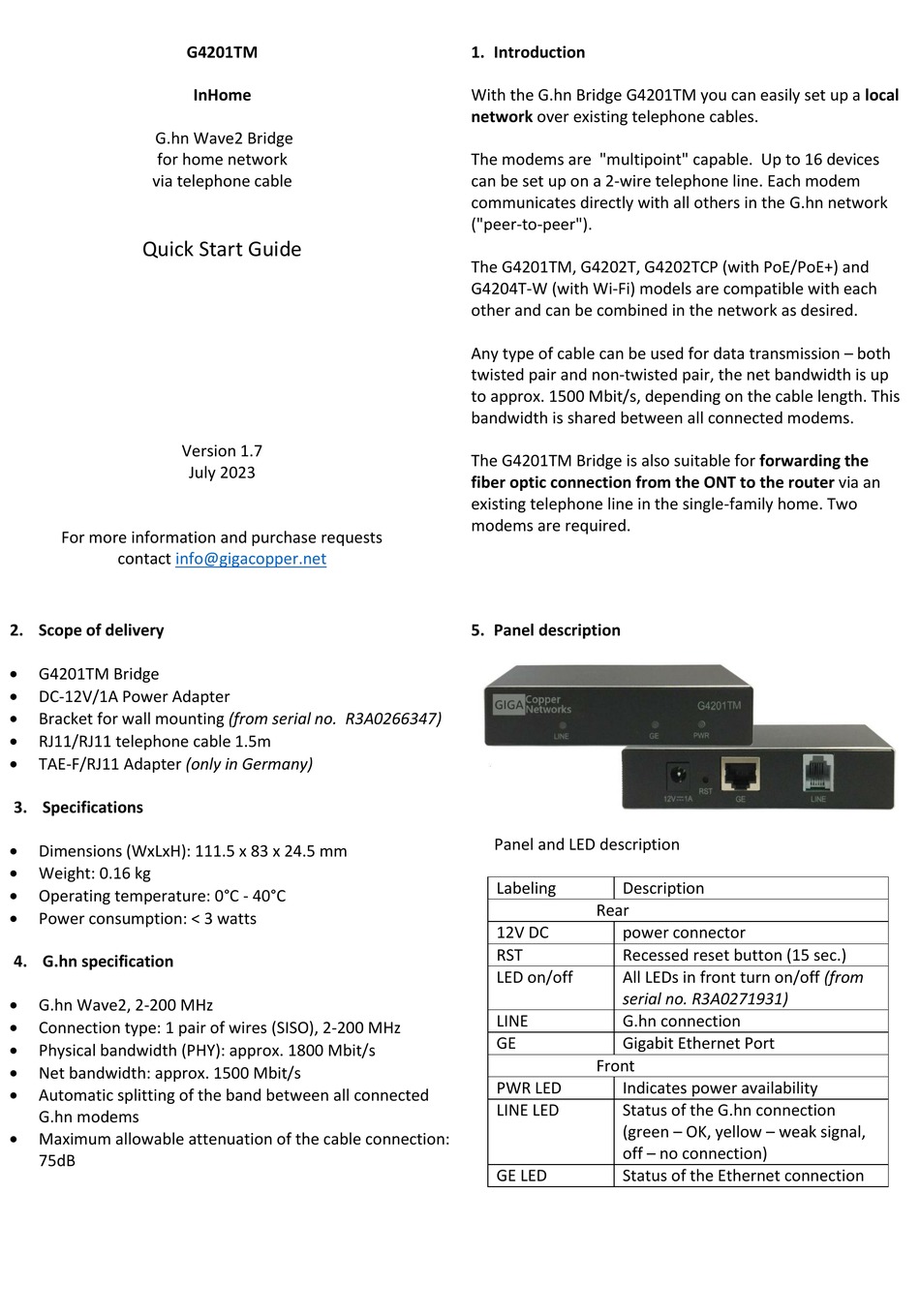

GIGA Copper G4201TM Quick Start Manual

G.hn Wave2 Bridge
for home network
via telephone cable
Quick Start Guide
Version 1.7
For more information and purchase requests
contact info@gigacopper.net

2. Scope of delivery


G4201TM Bridge

DC-12V/1A Power Adapter

Bracket for wall mounting (from serial no. R3A0266347)

RJ11/RJ11 telephone cable 1.5m

TAE-F/RJ11 Adapter (only in Germany)

3. Specifications


Dimensions (WxLxH): 111.5 x 83 x 24.5 mm

Weight: 0.16 kg

Operating temperature: 0°C - 40°C

Power consumption: < 3 watts

4. G.hn specification


G.hn Wave2, 2-200 MHz

Connection type: 1 pair of wires (SISO), 2-200 MHz

Physical bandwidth (PHY): approx. 1800 Mbit/s

Net bandwidth: approx. 1500 Mbit/s

Automatic splitting of the band between all connected
G.hn modems

Maximum allowable attenuation of the cable connection:
75dB
G4201TM
InHome
July 2023

1. Introduction

With the G.hn Bridge G4201TM you can easily set up a local
network over existing telephone cables.
The modems are "multipoint" capable. Up to 16 devices
can be set up on a 2-wire telephone line. Each modem
communicates directly with all others in the G.hn network
("peer-to-peer").
The G4201TM, G4202T, G4202TCP (with PoE/PoE+) and
G4204T-W (with Wi-Fi) models are compatible with each
other and can be combined in the network as desired.
Any type of cable can be used for data transmission – both
twisted pair and non-twisted pair, the net bandwidth is up
to approx. 1500 Mbit/s, depending on the cable length. This
bandwidth is shared between all connected modems.
The G4201TM Bridge is also suitable for forwarding the
fiber optic connection from the ONT to the router via an
existing telephone line in the single-family home. Two
modems are required.

5. Panel description

Panel and LED description
Labeling Description
Rear
12V DC power connector
RST Recessed reset button (15 sec.)
LED on/off All LEDs in front turn on/off (from
serial no. R3A0271931)
LINE G.hn connection
GE Gigabit Ethernet Port
Front
PWR LED Indicates power availability
LINE LED Status of the G.hn connection
(green – OK, yellow – weak signal,
off – no connection)
GE LED Status of the Ethernet connection
