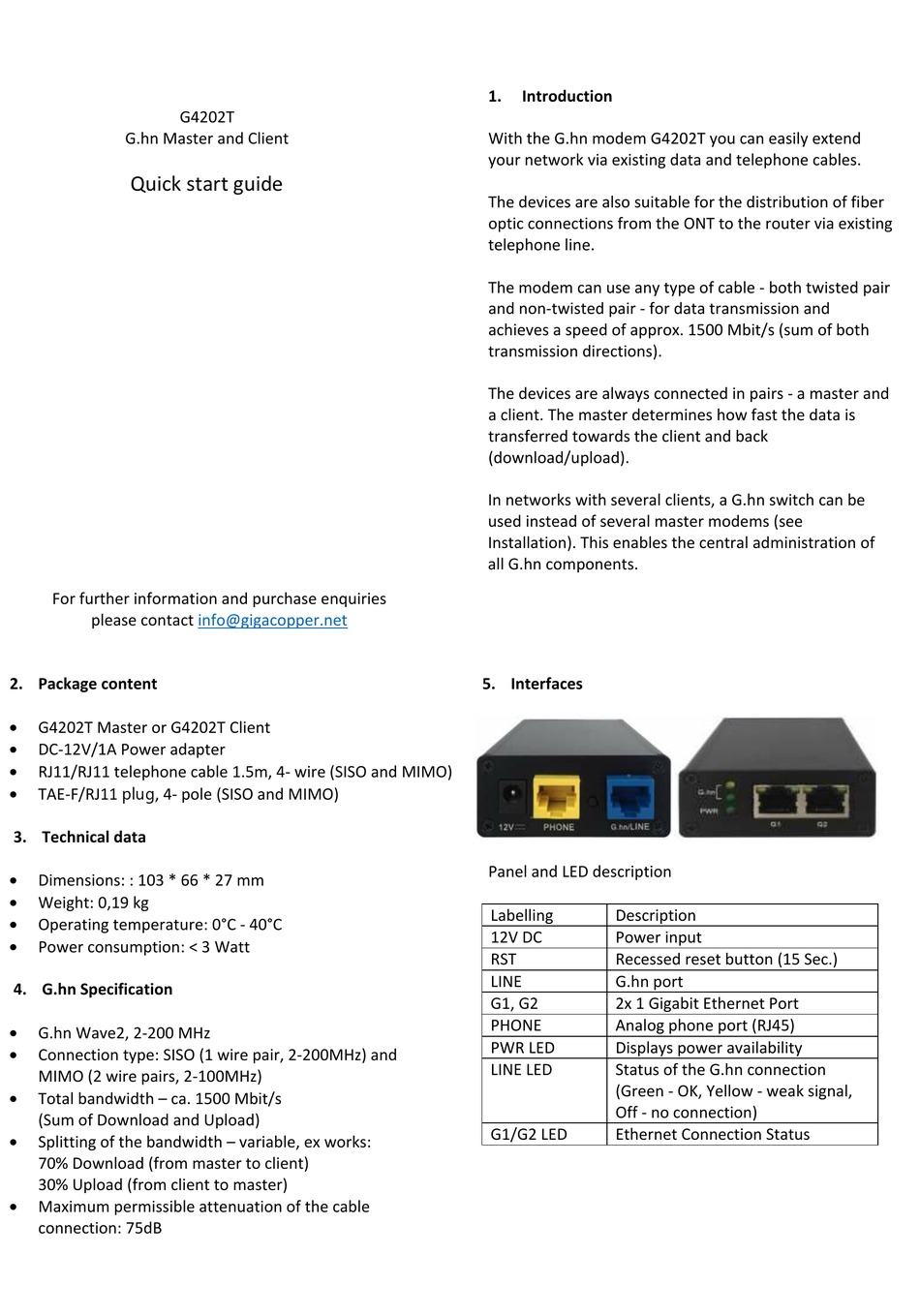

GIGA Copper G4202T Quick Start Manual

G4202T
G.hn Master and Client
Quick start guide
For further information and purchase enquiries
please contact
2. Package content

G4202T Master or G4202T Client

DC-12V/1A Power adapter

RJ11/RJ11 telephone cable 1.5m, 4- wire (SISO and MIMO)
TAE-F/RJ11 plug , 4- pole (SISO and MIMO)

3. Technical data

Dimensions: : 103 * 66 * 27 mm

Weight: 0,19 kg

Operating temperature: 0°C - 40°C

Power consumption: < 3 Watt
4. G.hn Specification

G.hn Wave2, 2-200 MHz

Connection type: SISO (1 wire pair, 2-200MHz) and
MIMO (2 wire pairs, 2-100MHz)

Total bandwidth – ca. 1500 Mbit/s
(Sum of Download and Upload)

Splitting of the bandwidth – variable, ex works:
70% Download (from master to client)
30% Upload (from client to master)

Maximum permissible attenuation of the cable
connection: 75dB
info@gigacopper.net
1. Introduction
With the G.hn modem G4202T you can easily extend
your network via existing data and telephone cables.
The devices are also suitable for the distribution of fiber
optic connections from the ONT to the router via existing
telephone line.
The modem can use any type of cable - both twisted pair
and non-twisted pair - for data transmission and
achieves a speed of approx. 1500 Mbit/s (sum of both
transmission directions).
The devices are always connected in pairs - a master and
a client. The master determines how fast the data is
transferred towards the client and back
(download/upload).
In networks with several clients, a G.hn switch can be
used instead of several master modems (see
Installation). This enables the central administration of
all G.hn components.
5. Interfaces
Panel and LED description
Labelling Description
12V DC Power input
RST Recessed reset button (15 Sec.)
LINE G.hn port
G1, G2 2x 1 Gigabit Ethernet Port
PHONE Analog phone port (RJ45)
PWR LED Displays power availability
LINE LED Status of the G.hn connection
(Green - OK, Yellow - weak signal,
Off - no connection)
G1/G2 LED Ethernet Connection Status
