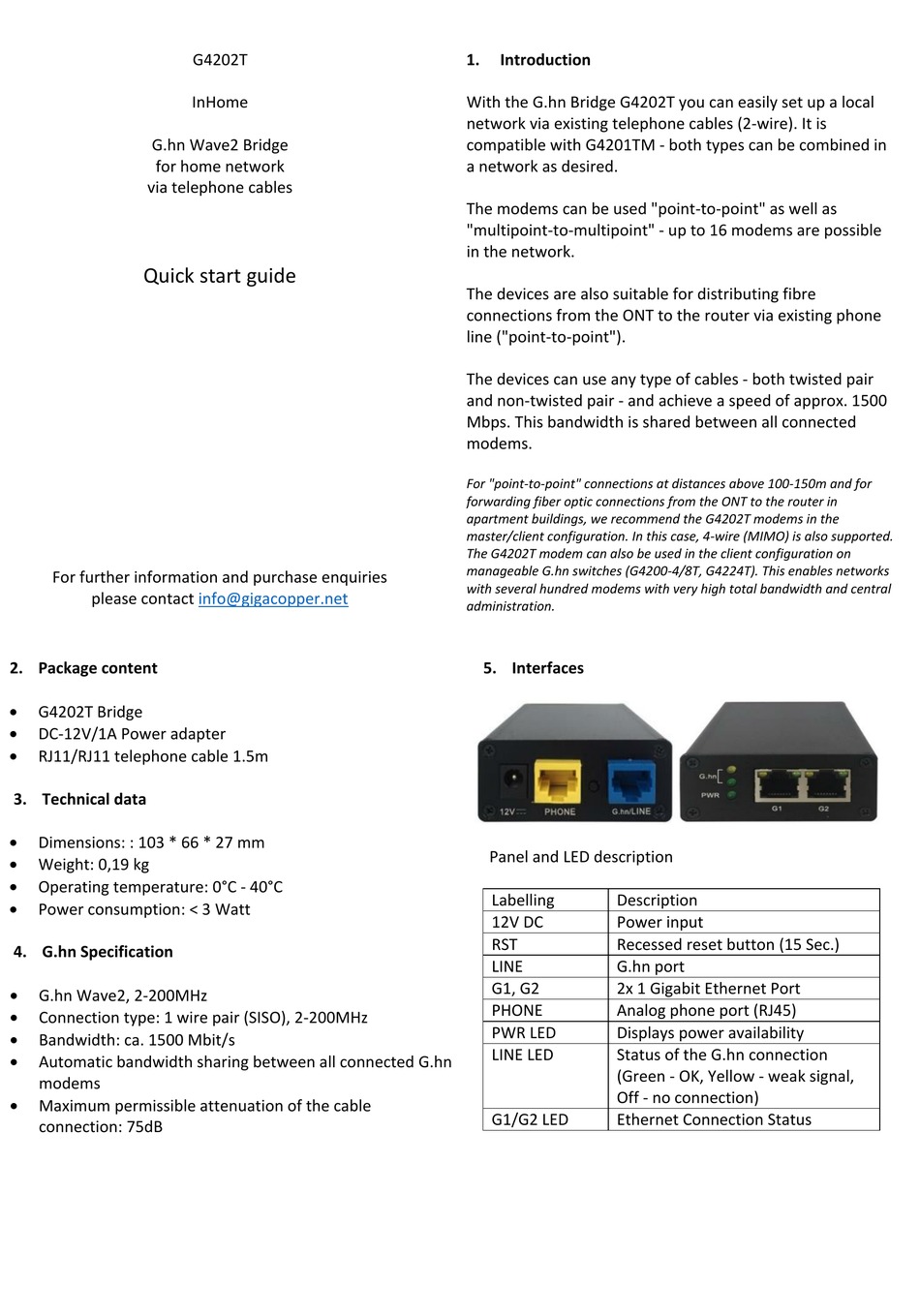

GIGA Copper InHome G4202T Quick Start Manual

G.hn Wave2 Bridge
for home network
via telephone cables
Quick start guide
For further information and purchase enquiries
please contact
2. Package content

G4202T Bridge

DC-12V/1A Power adapter

RJ11/RJ11 telephone cable 1.5m
3. Technical data

Dimensions: : 103 * 66 * 27 mm

Weight: 0,19 kg

Operating temperature: 0°C - 40°C

Power consumption: < 3 Watt
4. G.hn Specification

G.hn Wave2, 2-200MHz

Connection type: 1 wire pair (SISO), 2-200MHz

Bandwidth: ca. 1500 Mbit/s

Automatic bandwidth sharing between all connected G.hn
modems

Maximum permissible attenuation of the cable
connection: 75dB
G4202T
InHome
info@gigacopper.net
1. Introduction
With the G.hn Bridge G4202T you can easily set up a local
network via existing telephone cables (2-wire). It is
compatible with G4201TM - both types can be combined in
a network as desired.
The modems can be used "point-to-point" as well as
"multipoint-to-multipoint" - up to 16 modems are possible
in the network.
The devices are also suitable for distributing fibre
connections from the ONT to the router via existing phone
line ("point-to-point").
The devices can use any type of cables - both twisted pair
and non-twisted pair - and achieve a speed of approx. 1500
Mbps. This bandwidth is shared between all connected
modems.
For "point-to-point" connections at distances above 100-150m and for
forwarding fiber optic connections from the ONT to the router in
apartment buildings, we recommend the G4202T modems in the
master/client configuration. In this case, 4-wire (MIMO) is also supported.
The G4202T modem can also be used in the client configuration on
manageable G.hn switches (G4200-4/8T, G4224T). This enables networks
with several hundred modems with very high total bandwidth and central
administration.
5. Interfaces
Panel and LED description
Labelling Description
12V DC Power input
RST Recessed reset button (15 Sec.)
LINE G.hn port
G1, G2 2x 1 Gigabit Ethernet Port
PHONE Analog phone port (RJ45)
PWR LED Displays power availability
LINE LED Status of the G.hn connection
(Green - OK, Yellow - weak signal,
Off - no connection)
G1/G2 LED Ethernet Connection Status
