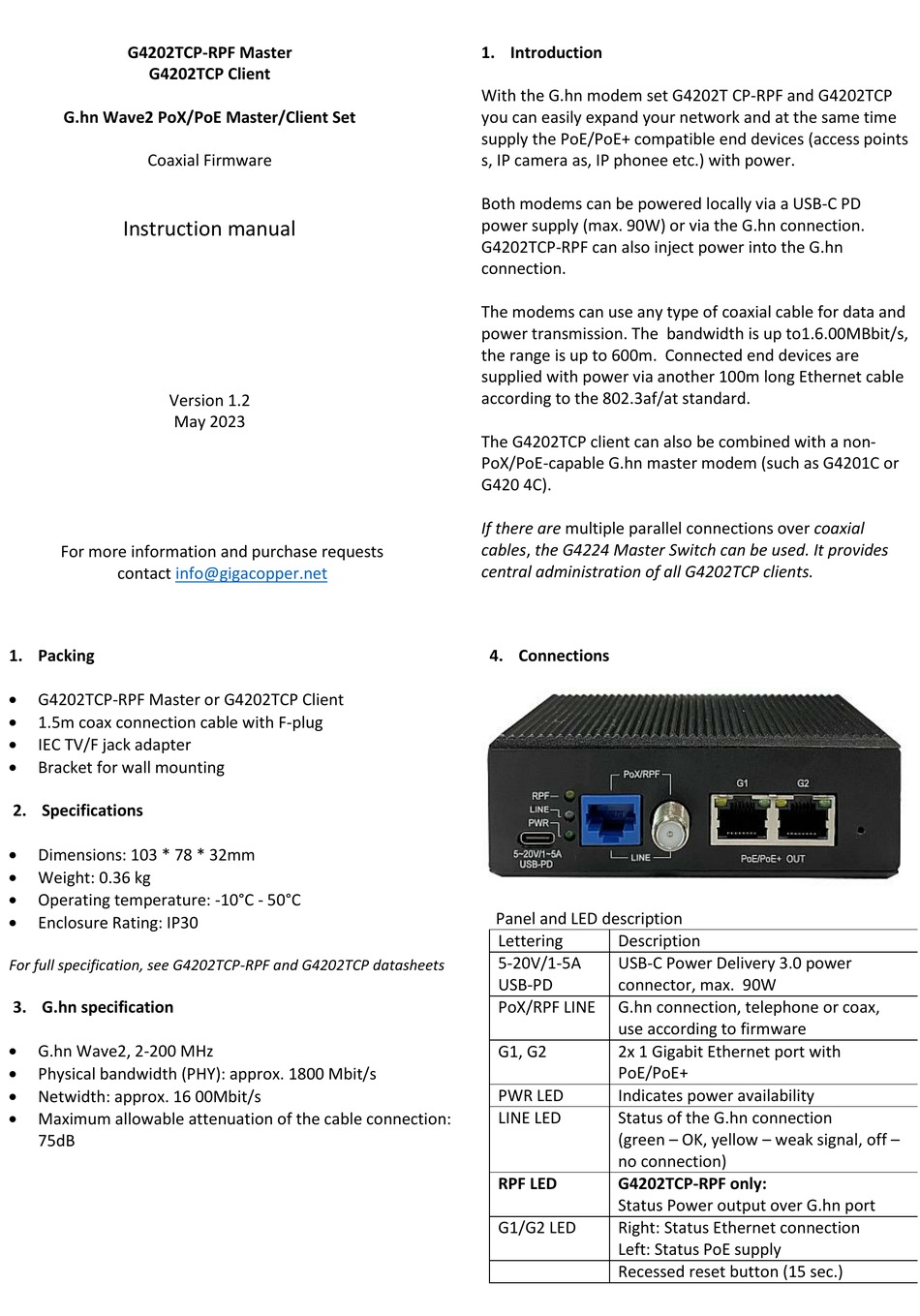

G4202TCP-RPF Master
G4202TCP Client
G.hn Wave2 PoX/PoE Master/Client Set
Coaxial Firmware
Instruction manual
Version 1.2
May 2023
For more information and purchase requests
contact
info@gigacopper.net

1. Packing

G4202TCP-RPF Master or G4202TCP Client
1.5m coax connection cable with F-plug
IEC TV/F jack adapter
Bracket for wall mounting

2. Specifications

Dimensions: 103 * 78 * 32mm
Weight: 0.36 kg
Operating temperature: -10°C - 50°C
Enclosure Rating: IP30
For full specification, see G4202TCP-RPF and G4202TCP datasheets

3. G.hn specification

G.hn Wave2, 2-200 MHz
Physical bandwidth (PHY): approx. 1800 Mbit/s
Netwidth: approx. 16 00Mbit/s
Maximum allowable attenuation of the cable connection:
75dB

1. Introduction

With the G.hn modem set G4202T CP-RPF and G4202TCP
you can easily expand your network and at the same time
supply the PoE/PoE+ compatible end devices (access points
s, IP camera as, IP phonee etc.) with power.
Both modems can be powered locally via a USB-C PD
power supply (max. 90W) or via the G.hn connection.
G4202TCP-RPF can also inject power into the G.hn
connection.
The modems can use any type of coaxial cable for data and
power transmission. The bandwidth is up to1.6.00MBbit/s,
the range is up to 600m. Connected end devices are
supplied with power via another 100m long Ethernet cable
according to the 802.3af/at standard.
The G4202TCP client can also be combined with a non-
PoX/PoE-capable G.hn master modem (such as G4201C or
G420 4C).
If there are multiple parallel connections over coaxial
cables, the G4224 Master Switch can be used. It provides
central administration of all G4202TCP clients.

4. Connections

Panel and LED description
Lettering
Description
5-20V/1-5A
USB-C Power Delivery 3.0 power
USB-PD
connector, max. 90W
PoX/RPF LINE
G.hn connection, telephone or coax,
use according to firmware
G1, G2
2x 1 Gigabit Ethernet port with
PoE/PoE+
PWR LED
Indicates power availability
LINE LED
Status of the G.hn connection
(green – OK, yellow – weak signal, off –
no connection)
RPF LED
G4202TCP-RPF only:
Status Power output over G.hn port
G1/G2 LED
Right: Status Ethernet connection
Left: Status PoE supply
Recessed reset button (15 sec.)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G4202TCP-RPF and is the answer not in the manual?

Questions and answers

Summary of Contents for GIGA Copper G4202TCP-RPF

  • Page 1 Both modems can be powered locally via a USB-C PD power supply (max. 90W) or via the G.hn connection. Instruction manual G4202TCP-RPF can also inject power into the G.hn connection. The modems can use any type of coaxial cable for data and power transmission.
  • Page 2 5. Typical applications Variant 1: G4202TCP-RPF Master + G4202TCP Client. Master draws power from the USB-C adapter, client - via G.hn link. Variant 2: G4202TCP as client together with G4201C Master. G4202TCP draws power from the USB-C adapter. Variant 3: G4202TCP as client on the G4224 switch. Eachswitch can power up to 24 clients, 4 of which are 90W.
  • Page 3 8. Administration IP-Address: 192.168.10.252 (master), 192.168.10.253 (client). Login Password: paterna Work-Reset Password: betera Registration via web interface  Connect your computer to the G.hn modem via the G1 or G2 port.  Assign your computer a fixed IP address, e.g. 192.168.10.100 (netmask 255.255.255.0). ...
  • Page 4 VLANs. Instead of external Ethernet switches, VLAN configuration can be done by the manageable G.hn switch G4224. Both Ethernet ports of the G4202TCP-RPF and the G4202TCP modem can be configured independently of each other. 12. Use of Multicast IP-TV For the transmission of multicast IP-TV (e.g.
