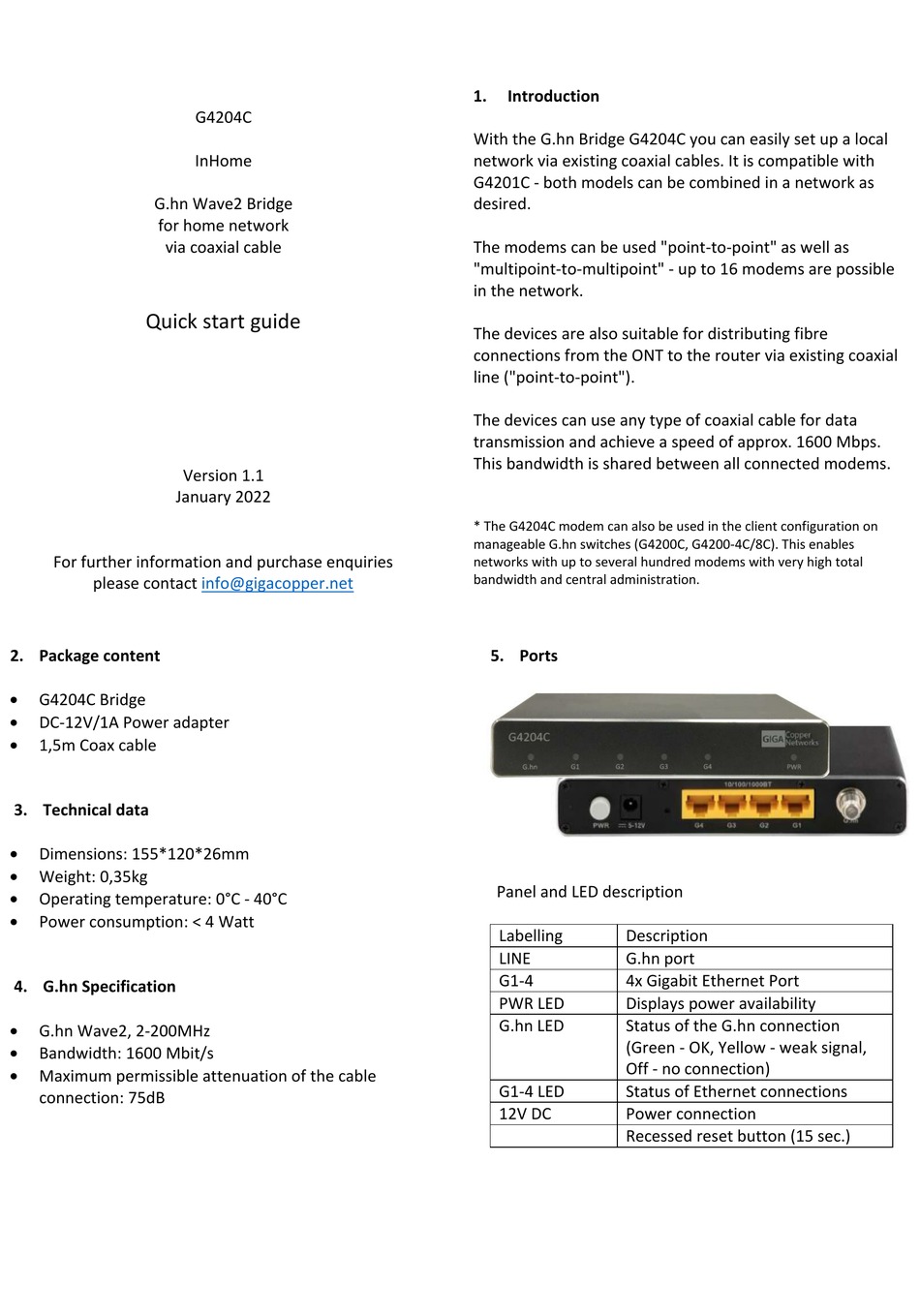

GIGA Copper G4204C Quick Start Manual

G.hn Wave2 Bridge
for home network
via coaxial cable
Quick start guide
Version 1.1
January 2022
For further information and purchase enquiries
please contact

2. Package content


G4204C Bridge

DC-12V/1A Power adapter

1,5m Coax cable

3. Technical data


Dimensions: 155*120*26mm

Weight: 0,35kg

Operating temperature: 0°C - 40°C

Power consumption: < 4 Watt

4. G.hn Specification


G.hn Wave2, 2-200MHz

Bandwidth: 1600 Mbit/s

Maximum permissible attenuation of the cable
connection: 75dB
G4204C
InHome
info@gigacopper.net
1.

Introduction

With the G.hn Bridge G4204C you can easily set up a local
network via existing coaxial cables. It is compatible with
G4201C - both models can be combined in a network as
desired.
The modems can be used "point-to-point" as well as
"multipoint-to-multipoint" - up to 16 modems are possible
in the network.
The devices are also suitable for distributing fibre
connections from the ONT to the router via existing coaxial
line ("point-to-point").
The devices can use any type of coaxial cable for data
transmission and achieve a speed of approx. 1600 Mbps.
This bandwidth is shared between all connected modems.
* The G4204C modem can also be used in the client configuration on
manageable G.hn switches (G4200C, G4200-4C/8C). This enables
networks with up to several hundred modems with very high total
bandwidth and central administration.

5. Ports

Panel and LED description
Labelling Description
LINE G.hn port
G1-4 4x Gigabit Ethernet Port
PWR LED Displays power availability
G.hn LED Status of the G.hn connection
(Green - OK, Yellow - weak signal,
Off - no connection)
G1-4 LED Status of Ethernet connections
12V DC Power connection
Recessed reset button (15 sec.)
