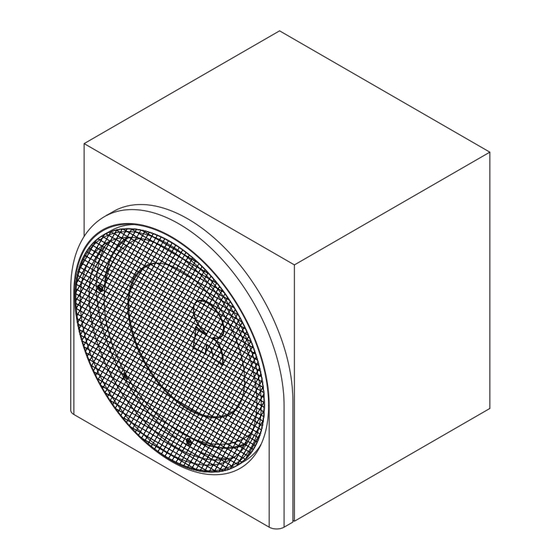

Revel Performa B15a Subwoofer
™
Owner's Manual
3 Oak Park, Bedford, MA, 01730-1413 USA | Telephone: 781-280-0300 | Fax: 781-280-0490 | www.revelspeakers.com
Customer Support: Telephone: 781-280-0300 | Sales Fax: 781-280-0495 | Service Fax: 781-280-0499
Please contact Customer Support for information about product shipments.
Part No.
352990-001
| Rev A | 01/04
"Revel," "Performa," and the Revel logo are registered trademarks of Harman International Industries. U.S. patent numbers and other
worldwide patents issued and pending.
©2004 Harman Specialty Group. All rights reserved.
This document should not be construed as a commitment on the part of Harman Specialty Group.The information it contains is subject
to change without notice. Harman Specialty Group assumes no responsibility for errors that may appear within this document.

Advertisement

Table of Contents
loading

Related Manuals for REVELL Performa B15a

Summary of Contents for REVELL Performa B15a

  • Page 1 Part No. 352990-001 | Rev A | 01/04 “Revel,” “Performa,” and the Revel logo are registered trademarks of Harman International Industries. U.S. patent numbers and other worldwide patents issued and pending. ©2004 Harman Specialty Group. All rights reserved. This document should not be construed as a commitment on the part of Harman Specialty Group.The information it contains is subject...
  • Page 2 The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operat- ing and maintenance instructions in the literature accompany- ing the product. REVEL PERFORMA B15a Owner’s Manual...

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Please read all instructions carefully and completely before operating your Revel Performa B15a subwoofer. 1. Always disconnect ac power before connecting or disconnect- ing any cables, or when cleaning any component. 2. This product uses a three-conductor power cord, which includes an earth-ground connection.

  • Page 4: Table Of Contents

    REAR PANEL LAYOUT ...13 CONNECTIONS ...14 STEREO POWER AMPLIFIER ...15 MULTI-CHANNEL CONTROLLER USING THE CONTROLLER’S CROSSOVER ...16 MULTI-CHANNEL CONTROLLER USING THE REVEL PERFORMA B-15a’s CROSSOVER ...17 MULTI-CHANNEL CONTROLLER WITHOUT HIGH-PASS CROSSOVER...18 MULTIPLE OPERATION ...19 STEREO BASS ...20 SYSTEM OPTIMIZATION ...21 TROUBLESHOOTING ...24 SPECIFICATIONS...25...

  • Page 5: Introduction

    Save these instructions for future reference. The Revel Performa B15a subwoofer is covered by a limited war- ranty, so save the bill of sale to protect your purchase and aid in any service-related questions.

  • Page 6: Description

    DESCRIPTION The Revel Performa B15a powered subwoofer system features a unique transducer that combines brute-force capabilities unprece- dented in home loudspeakers with a new level of low frequency nuance and refinement. Combined with the huge internal power capability, the result is a new standard of superb bass performance and adaptability for home entertainment systems.

  • Page 7: Electronics

    ELECTRONICS Each Revel Performa B15a contains an electronics section with the following attributes: • An extremely low-distortion, 1,000-watt (rms) amplifier with 1,400-watt burst capability produces peak bass output up to 126dB at 30Hz in an average-sized listening room. • Inaudible protection circuit to guard against thermal overload.

  • Page 8: Unpacking

    Refer to the Obtaining Service section on page 26 for additional information. 1. Set the packaged Revel Performa B15a subwoofer on a soft towel or carpeted surface in the upright position. Open the top flaps as shown in Step 1 of Figure 3 (below). Set aside the power cord and other items located on the top pad.

  • Page 9: Adjustable Spike Footing

    Figure 4.The Revel Performa B15a subwoofer with its inner packing materials. Warranty Card Power Cord Protective Bag 4. Place the B15a in the upright position without allowing the protective bag identified in Figure 4 (above). to become “stuck” under the spike footing.
  • Page 10 REVEL PERFORMA B15a Owner’s Manual B15a The spikes should be attached as shown here for loudspeaker placement on carpeted floors. Round End (Protective Cap Removed) Locking Ring Spike End Figure 5. The Revel Performa B15a subwoofer adjustable spike footing.

  • Page 11: Placement

    PLACEMENT Due to the long wavelengths being reproduced, low-frequency bass response from the Revel Performa B15a subwoofer is non-direction- al. However, optimum results can be obtained by making in-room measurements to determine the best locations for all of the speakers in your specific listening room (see System Optimization on page 21).
  • Page 12 Listening Position (e.g., on couch) Alternate Placement B15a L Speaker Listening Position (e.g., on couch) REVEL PERFORMA B15a Owner’s Manual R Speaker B15a R Speaker Figure 7. Preferred placement of two B15a subwoofers in a corner of a larger room.

  • Page 13: Rear Panel Layout

    AUX OUTPUT: Use stereo XLR (balanced) connectors or RCA (unbalanced) jacks to loop input audio signals to additional REVEL PERFORMA B15as (if present). Both outputs are 0 dBv (nominal)/+20 dBv (maximum). The XLR input is pin 2 high. HIGH PASS OUTPUT: Use stereo XLR (balanced) connectors or RCA (unbalanced) jacks for (high-pass) connection to the main amplifier’s inputs.

  • Page 14: Connections

    Also, be sure to observe the following: • Turn off all audio system power before making any connections. • Read the owner’s manuals that were included with your audio components to confirm their connection procedures. REVEL PERFORMA B15a Owner’s Manual...

  • Page 15: Stereo Power Amplifier

    Left Output Preamplifier (rear) REVEL PERFORMA B15a SUBWOOFER AND A STEREO POWER AMPLIFIER A common application is interconnecting the B15a subwoofer between a stereo preamplifier and the main power amplifier, as shown in Figure 10.

  • Page 16: Multi-Channel Controller Using The Controller's Crossover

    CONNECTIONS (Continued) REVEL PERFORMA B15a SUBWOOFER AND A MULTI-CHANNEL CONTROLLER USING THE CONTROLLER’S CROSSOVER In this application, the B15a subwoofer’s internal low-pass filter is bypassed and the multi-channel controller’s crossover is used instead, as shown in Figure 11. Multi-Channel Controller (Decoder)

  • Page 17: Multi-Channel Controller

    L/R Front and no SUB. REVEL PERFORMA B15a SUBWOOFER AND A MULTI-CHANNEL CONTROLLER USING THE B15a’s INTERNAL CROSSOVER In this application, the Revel Performa B15a subwoofer’s internal crossover is used to interconnect a home theater multi-channel controller, as shown in Figure 12. Left Input...

  • Page 18: Multi-Channel Controller Without High-Pass Crossover

    If the B15a subwoofer will be used without a high-pass crossover (see Figure 13), contact your Revel dealer for help in setting the crossover controls so the main speakers and the B15a subwoofer(s) will produce an optimum combined response.

  • Page 19: Multiple Operation

    #1 B15a to #3 B15a AUX OUTPUT INPUT REVEL PERFORMA B15a SUBWOOFERS IN MULTIPLE OPERATION Multiple B15a subwoofers (using their own crossovers) can be connected in a “daisy-chain” with a multi-channel controller and power amplifier, as shown in Figure 14. If all subwoofers are placed next to each other or in symmetrical room locations, set all level and phase controls for the same respective values.

  • Page 20: Stereo Bass

    CONNECTIONS (Continued) REVEL PERFORMA B15a SUBWOOFERS AND STEREO BASS Two B15a subwoofers can be interconnected with a preamplifier and power amplifier for stereo bass (see Figure 15). NOTE: Although stereo bass requires symmetrical placement, asym- metrical placement also has advantages (see “Placement” on page 11).

  • Page 21: System Optimization

    -octave measurements have inade- quate resolution, often resulting in misleading data and degraded sound quality. Simply use the REVEL LFO test signals disc and the LOW FREQUENCY OPTIMIZER will plot the results of the measurement at each speaker or listener (microphone) location.
  • Page 22 SYSTEM OPTIMIZATION PLACEMENT OVERVIEW (Continued) The REVEL LOW FREQUENCY OPTIMIZER provides a convenient way to save each set of measurements and to make notes so that the effect of various locations can be compared. Other sound measurement systems may also be used to help determine speaker and listener locations, as long as the selected 1 ⁄...
  • Page 23 Otherwise, select a location that is most desirable for aesthetic or other considerations. If the locations are to be determined by trial-and-error, begin with one Revel Performa B15a subwoofer in a front corner of the room (nearest the main loudspeakers).

  • Page 24: Troubleshooting

    TROUBLESHOOTING If the Revel Performa B15a subwoofer sounds distorted, stops play- ing, or otherwise seems to be malfunctioning, first determine whether the problem is in the subwoofer, the wiring, and/or other audio components. If the problem also affects the main speakers, the cause is most likely in your electronics.

  • Page 25: Specifications

    Our research has developed a series of tests that represent a great leap forward in making measurements that dramatically contribute to our goal of accurate- ly reproducing music or film. Revel Performa B15a specifications for the subwoofer and amplifier are as follows: SUBWOOFER...

  • Page 26: Amplifier

    Authorization (RMA) number. No products will be accepted with- out an RMA number issued from Harman Specialty Group. If a Revel product must be returned for repair, Harman Specialty Group will assume no responsibility for the product during ship- ment from the customer to Harman Specialty Group, whether the product is or is not covered under warranty.
  • Page 27 Do not return accessories such as power cord and owner’s manu- als unless instructed to do so. To contact Harman Specialty Group Customer Support: Telephone: 781-280-0300 Service Fax: 781-280-0499 Sales Fax: 781-280-0495 www.revelspeakers.com REVEL PERFORMA B15a Owner’s Manual...
  • Page 28 3 Oak Park, Bedford, MA, 01730-1413 USA | Telephone: 781-280-0300 | Fax: 781-280-0490 | www.revelspeakers.com Customer Support: Telephone: 781-280-0300 | Sales Fax: 781-280-0495 | Service Fax: 781-280-0499 Please contact Customer Support for information about product shipments. Part No. | Rev A | 01/04 352990-001...
