MT9J003I12STCVH-GEVB
MT9J003 Evaluation Board
User's Manual
Evaluation Board Overview
The evaluation boards are designed to demonstrate the features of
ON Semiconductor's image sensors products. This headboard is
intended to plug directly into the Demo 2X system. Test points and
jumpers on the board provide access to the clock, I/Os, and other
miscellaneous signals.
Features
•
Clock Input
Default – 10 MHz Crystal Oscillator
♦
Optional Demo 2X Controlled MClk
♦
•
Two Wire Serial Interface
Selectable Base Address
♦
•
Parallel Interface
•
HiSPi (High Speed Serial Pixel) Interface
•
ROHS Compliant

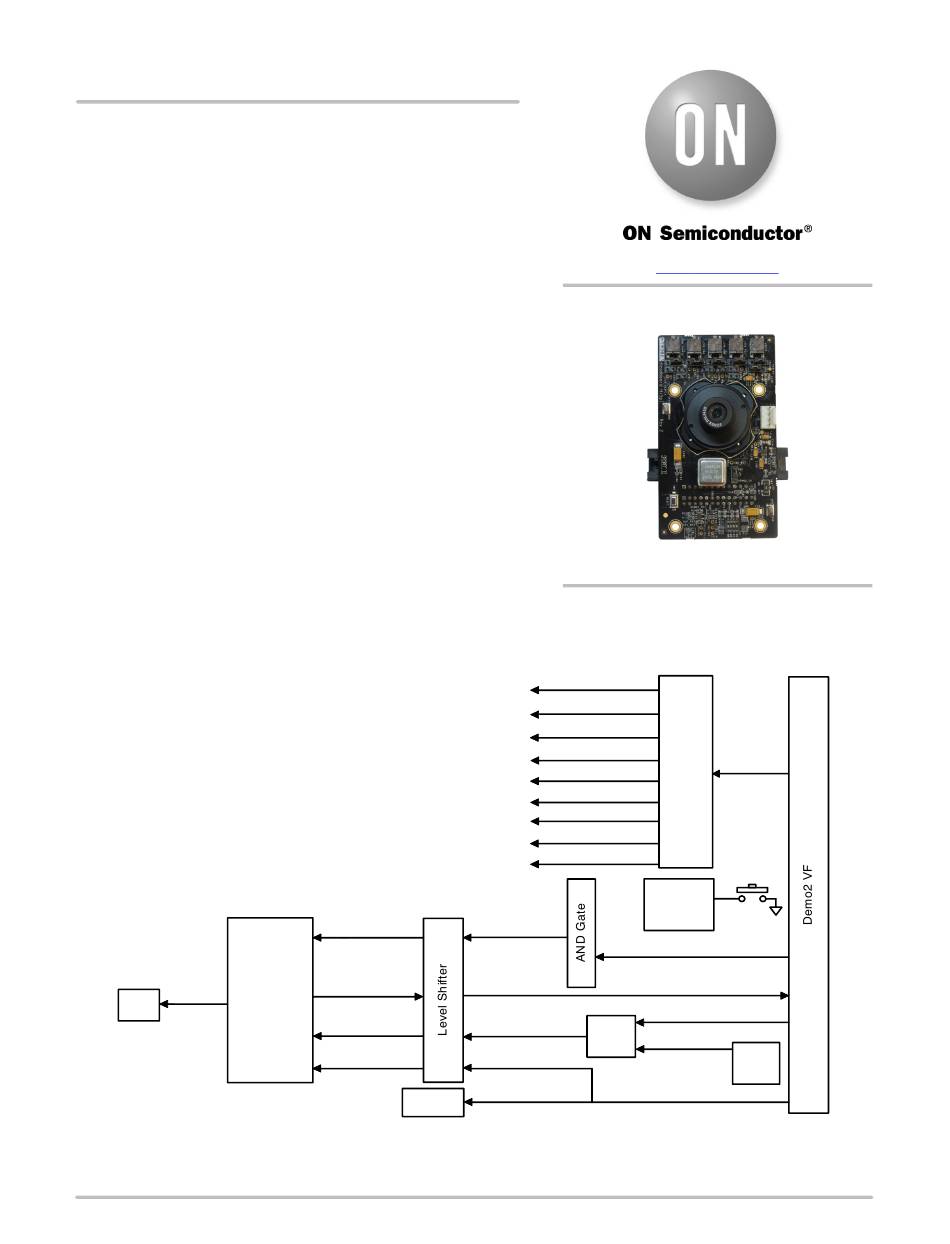

Block Diagram
HiSPi
(HiSPi)
RJ45
© Semiconductor Components Industries, LLC, 2016
July, 2016 − Rev. 0
All manuals and user guides at all-guides.com
SOC_RST_L
SOC_EXTCLK
2
I
C
EPROM
Figure 2. Block Diagram of MT9J003I12STCVH−GEVB
EVAL BOARD USER'S MANUAL

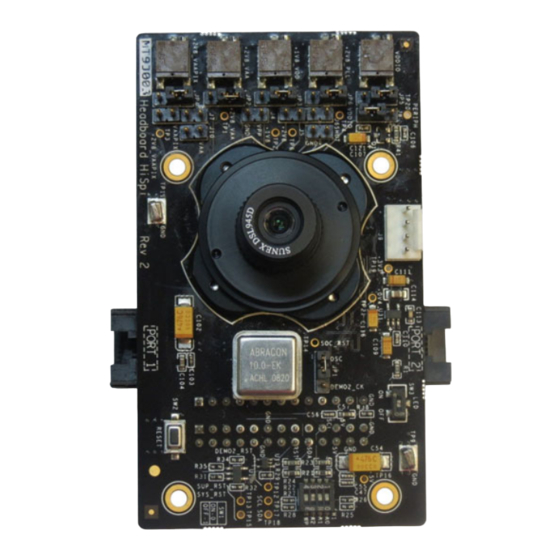

Figure 1. MT9J003 Evaluation Board
+3V3_HiSPi
+3V3_SERIAL
+2V8_PLL
+2V8_VAAPIX
+2V8_PLL
+1V8_SOC
+VDDIO_SOC
+VDDIO_PERIPH
+0V4
Supervisor
SYS_RST_L
DEMO2_RST_L
SOC_EXTCLK
Jumper
1
www.onsemi.com
+5VD_BUS
Power
Supply
Reset
DEMO2_MCLK
OSC_CLK
OSC
Socket
2
I
C
Publication Order Number:
EVBUM2419/D
Advertisement
Table of Contents
Related Manuals for ON Semiconductor MT9J003
Summary of Contents for ON Semiconductor MT9J003
- Page 1 Evaluation Board Overview www.onsemi.com The evaluation boards are designed to demonstrate the features of ON Semiconductor’s image sensors products. This headboard is EVAL BOARD USER’S MANUAL intended to plug directly into the Demo 2X system. Test points and jumpers on the board provide access to the clock, I/Os, and other miscellaneous signals.
- Page 2 All manuals and user guides at all-guides.com MT9J003I12STCVH−GEVB Top View +2V8_PLL JP6 +1V8_SOC JP3 +2V8_VAA JP2 +VDDIO_SOC JP5 +2V8_VAAPIX JP4 TEST J8 ATEST J7 GPIOs J6 SHUTTER J5 +VPP J4 CLK_SELECT JP1 ON_LED SW3 RESET SW2 EEPROM ADDR SW1 Figure 3. Top View of Evaluation Board − Default Jumpers Bottom View HiSPi Connector J50 HiSPi Connector J51...
- Page 3 All manuals and user guides at all-guides.com MT9J003I12STCVH−GEVB Jumper Pin Locations The jumpers on headboards start with Pin 1 on the leftmost side of the pin. Grouped jumpers increase in pin size with each jumper added. Pin 1 Pins 1−4 Figure 5.
- Page 4 Interfacing to ON Semiconductor Demo 2X Baseboard with P1 and P2 of the headboard. The four mounting holes The ON Semiconductor Demo 2X baseboard has a secure the baseboard and the headboard with spacers and similar 26-pin connector and 13-pin connector which mate screws.
- Page 5 All manuals and user guides at all-guides.com onsemi, , and other names, marks, and brands are registered and/or common law trademarks of Semiconductor Components Industries, LLC dba “onsemi” or its affiliates and/or subsidiaries in the United States and/or other countries. onsemi owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of onsemi’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf.
