Julian Bowen Limited KEN202 Assembly Instructions Manual

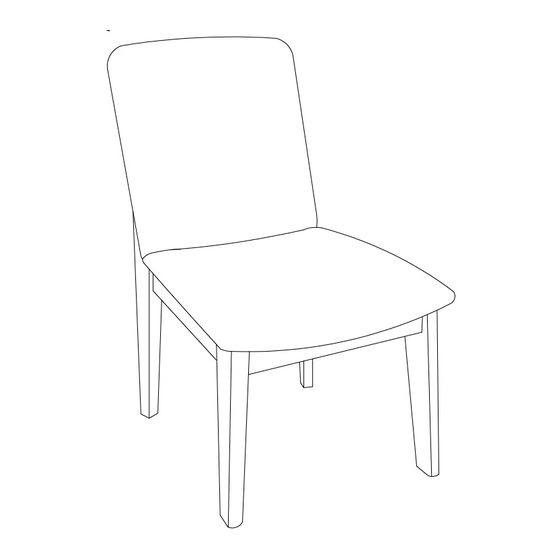

Dining chair

ASSEMBLY

Dining Chair

INSTRUCTIONS

Approximate Assembly Time

People Required to Assemble

Tools Required

0.5hr

Before you start...

Please carefully unpack and lay out all of the component parts to ensure nothing

is missing and to check each component for any obvious damage.

Should you identify any concerns at this stage please contact the retailer from

whom this product was purchased. Please quote your order number, details of

your issue, the product code, and the batch number from the cartons which will

help to resolve your issue as quickly as possible.

Version Number - 1.0

Product Code - KEN202

Table of Contents

Do you have a question about the KEN202 and is the answer not in the manual?

Page 1 Please quote your order number, details of your issue, the product code, and the batch number from the cartons which will help to resolve your issue as quickly as possible. Version Number - 1.0 Product Code - KEN202...
Page 3 Please check all hardware matches the list below. Should you notice any are missing please contact your retailer. 60mm 30mm 45mm M4x20mm 3.0x12mm 3.5x35mm 8x30mm M6 x 30mm JCBC M6 x 45mm JCBC M6 x 60mm JCBC Screw Screw Screw ∅...
Page 4 PARTS (4x) Please ensure you carefully check all the pieces, should you have any concerns please contact the retailer before assembly commences. Please have your order number, details of the issue, the product code, and the batch number from the cartons as this will help us to resolve your issue much faster.
Page 5 ASSEMBLY ADVICE Please take the time to carefully read through these instructions before you commence. Keep these instructions for future reference. We advise that the product is assembled in the room it is intended for. We advise that you keep the hardware in a bowl during assembly to avoid losing anything.
Page 8 GENERAL CARE & MAINTENANCE We advise that when cleaning the product that a damp cloth is used. Avoid the use of all household cleaners and abrasive. Never push or drag the furniture. Never attempt to move the furniture when fully loaded. We advise that periodically all fixing are re-tightened.
