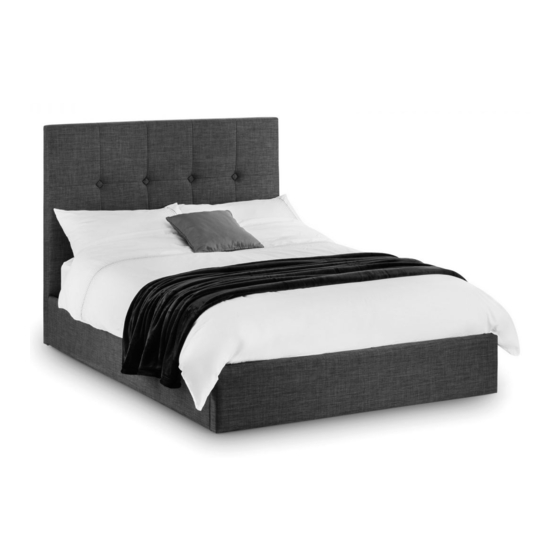

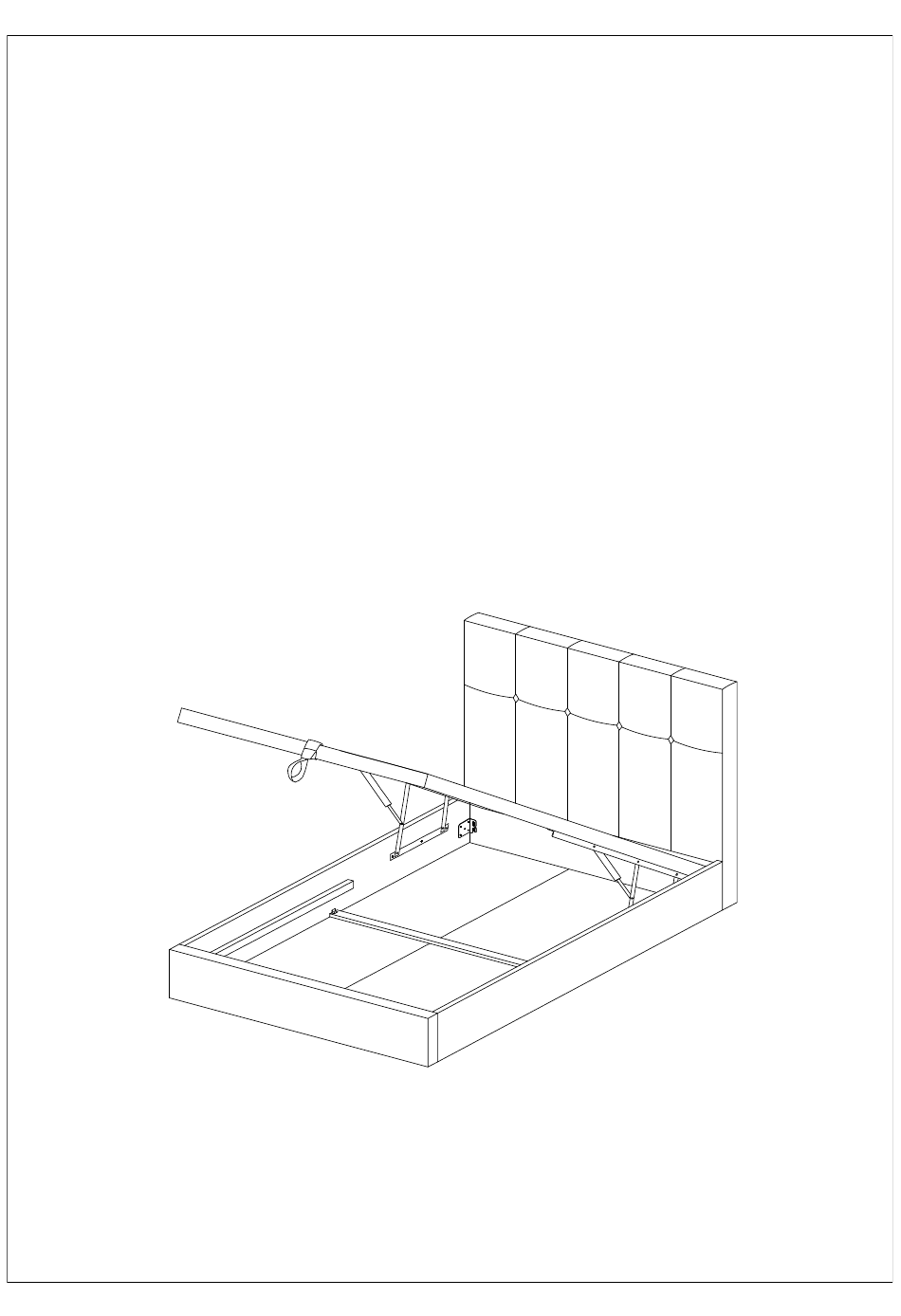

- Page 1 Julian Bowen Limited Sorrento Storage Bed 135cm Assembly Instructions VERSION : 160111...
- Page 3 HARDWARE M8 x 20mm (4 PCS) M8 x 30mm (14 PCS) M8 x 40mm (4 PCS) M8 x 65mm (8 PCS) FLANGE NUT (8 PCS) M4 x 30mm (2 PCS) SPRING WASHER M4 x 20mm (4 PCS) HANDLE (1 PC) FLAT WASHER (39 PCS) (6 PCS) Already inserted into...
- Page 4 Safety Advice Please take the time to carefully read through the whole of these instructions before you commence. Keep these instructions for future reference. Unpack, inspect and check off all of the contents. Please dispose of all packaging safely. Small component parts could choke a child if swallowed. We strongly recommend that you keep children well away from the work area.
- Page 5 Do not fully tighten the bolts as the brackets may need to be adjusted once the mattress frame is attached.
- Page 6 01 & 02 please note that Bolt (M) x 8 + Flat washer (I) x 8 are prefixed into parts 1 & 2...
- Page 7 X 14 X 28...
- Page 8 Check that the frame is central by adjusting the alignment of the frame and brackets before fully tightening all bolts. The metal frame should not contact the faux leather at any point.
- Page 9 Attention : Place the mattress onto the frame BEFORE closing or this could result in damage to the bed. (MATTRESS NOT INCLUDED) Note: It is imperative that the bed is aligned squarely to prevent the frame from catching on and damaging the upholstered side rails. Please use extra caution when opening and closing the bed for the first few times.
- Page 10 In the unlikely event that you have problems putting it together or have damaged or missing pieces, please contact our customer services on 01623 727374 Julian Bowen Limited Bentinck House, Park Lane Business Park, Kirkby-in-Ashfield, Notts, NG17 www.julian-bowen.co.uk...
