Summary of Contents for Julian Bowen Limited Santorini Fabric Drawer Bed

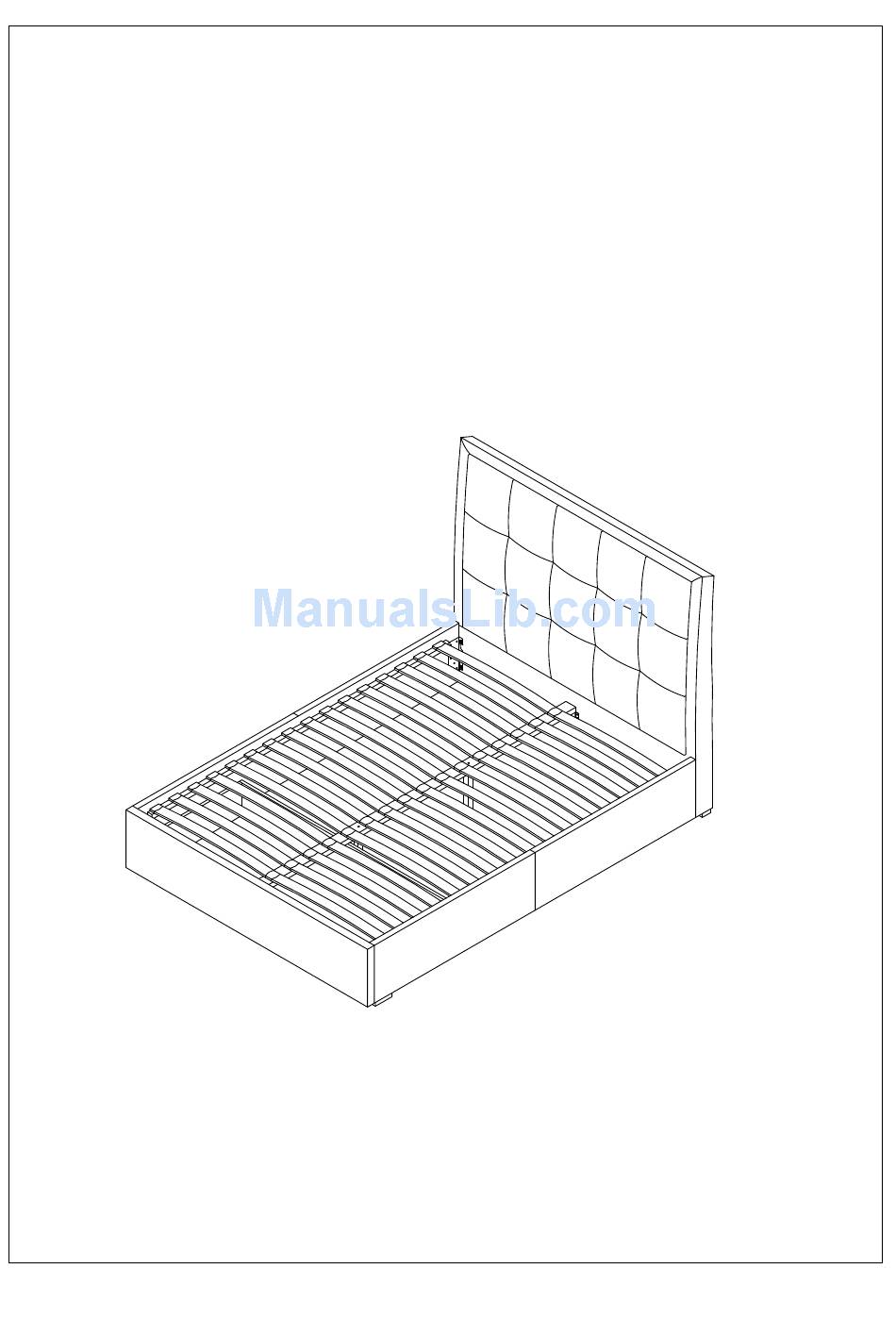

- Page 1 FABRIC 135CM 1 DRAWER BED Assembly Instructions VERSION: 171206 SAN201...
- Page 3 Hardware Already inserted into Head Ends Bolt M8 x 30mm +Spring Washer Bolt M8 x 30mm Screw M5 x 70mm +Flat Washer Bolt +Flat Washer Bolt Screw M3 x 20mm - 6 X - 4 X - 2 X - 4 X Middle Cap For Screw M4 x 30mm Non-Slip Pads...
- Page 4 Parts Headboard - 1 X Side Rail I - 1 X Centre Rail - 1 X Side Rail II - 1 X Cross Rail- 1 X Centre Support Legs Wooden Foot - 2 X Sprung Slat - 32 X - 2 X Wheel - 2 X Bottom Support Rail Drawer Front Panel I...
- Page 6 STEP 1 B & C STEP 2 Please note that the Bolt (1) x 6 are prefixed into parts A & B & C STEP 3...
- Page 7 STEP 4 B & C B & C STEP 5 STEP 6 8 X16...
- Page 8 STEP 7 PUSH PUSH PUSH STEP 8 Drawer Assembly Important: Make sure when you fit the nuts that the hole is in the correct alignment. Part J x 3...
- Page 9 STEP 9 Positions For Castors. FOLLOW LINE ON BACK OF DRAWER FACE PANEL STEP 10...
- Page 10 When correctly adjusted the centre support legs on this product should be raised by 5mm from the floor with the added weight of the mattress and bedding. his bed may fail if it is used on a wooden floor WT I T T HOU T U U U U U U U U U U U U U T t he use of non-slip pads on all support legs and bed posts.
