Summary of Contents for Julian Bowen Limited KYO202

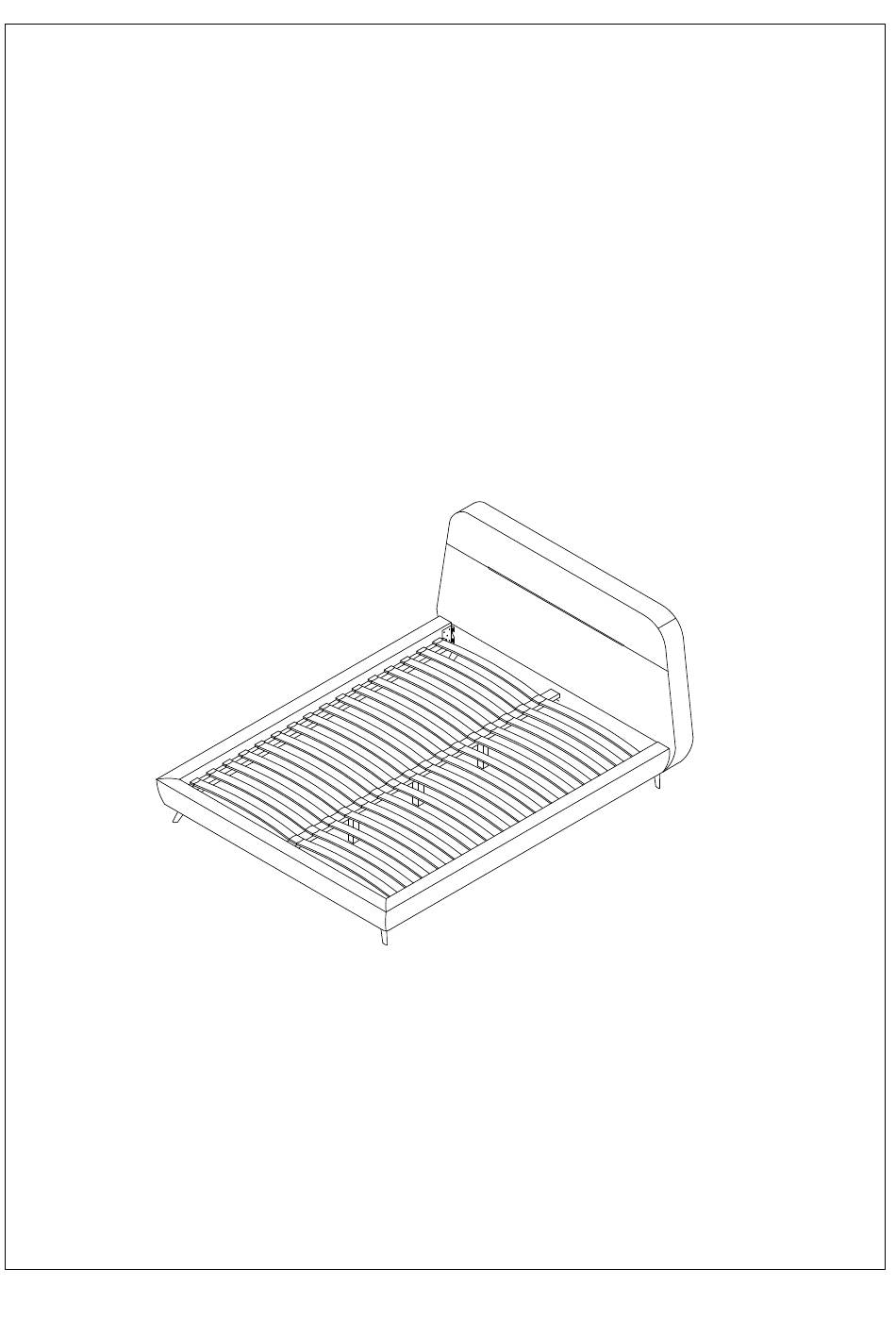

- Page 1 FABRIC BED 150CM Assembly Instructions VERSION: 191030 KYO202...
- Page 3 Hardware Already inserted into Head & Foot Ends Screw M5 X 70mm Middle Cap For Bolt M8 x 30mm - 3 X Sprung Base - 16 X +Spring Washer +Flat Washer - 8 X Bolt M8 x 25mm Allen Key (M5) - 1 X Slat Cap - 32 X +Spring Washer +Flat Washer...
- Page 4 We strongly urge that you do not use Power Tools, such as drills or electric screwdrivers during this assembly as this could cause irreparable damage to your product and will invalidate the warranty.
- Page 5 STEP 1 Please note that the Bolt (1) x 8 are prefixed into parts A & B STEP 2...
- Page 6 STEP 3 STEP 4 A & B A & B STEP 5...
- Page 7 STEP 6 PUSH PUSH PUSH...
- Page 8 5mm from the floor with the added weight of the mattress and bedding. If the bed is to be moved, carefully lift the product rather than dragging to ensure that the centre legs do not become twisted and buckle.
