Megaboost Log Periodic
LMBK
Amplified TV Aerial Kit
User Guide
27885V
User Guide
Introduction
The ultra compact Megaboost aerial with signal
booster offers a quick and economic method of
providing good digital signals to your TV/set top box.
Suitable for outdoor or loft installation, it can be mounted on a
1"-1½" mast or on to masonry/brickwork or wood using the bracket,
pole and fixings supplied.
This aerial is suitable for use in most areas of the UK, with the
exception of areas with very low or very high signal strength and
receives all available UHF, DVB-T and DVB-T2 frequencies.
This aerial is also 5G and 4G ready - the booster has a built in filter to prevent
interference & channel loss on your TV caused by signals from 5G and 4G transmitters.
For optimum reception of digital signals the kit contains high quality RG6 digital cable.
General Safety Precautions
Do not undertake work outdoors at height
unless you are competent in the use of
ladders and other access equipment.
Always use correct equipment, observe
appropriate safety precautions and follow
manufacturers instructions. If in doubt consult
a professional installer.
Before starting installation check structure is
sound and check for hidden wiring or plumbing.
When working on an installation outside, beware
of overhead power lines.
Observe safe working practices, tread carefully
on roofs and ensure adequate lighting is
available if working in loft or roof space.
Before making any connections switch electricity
off at the mains.

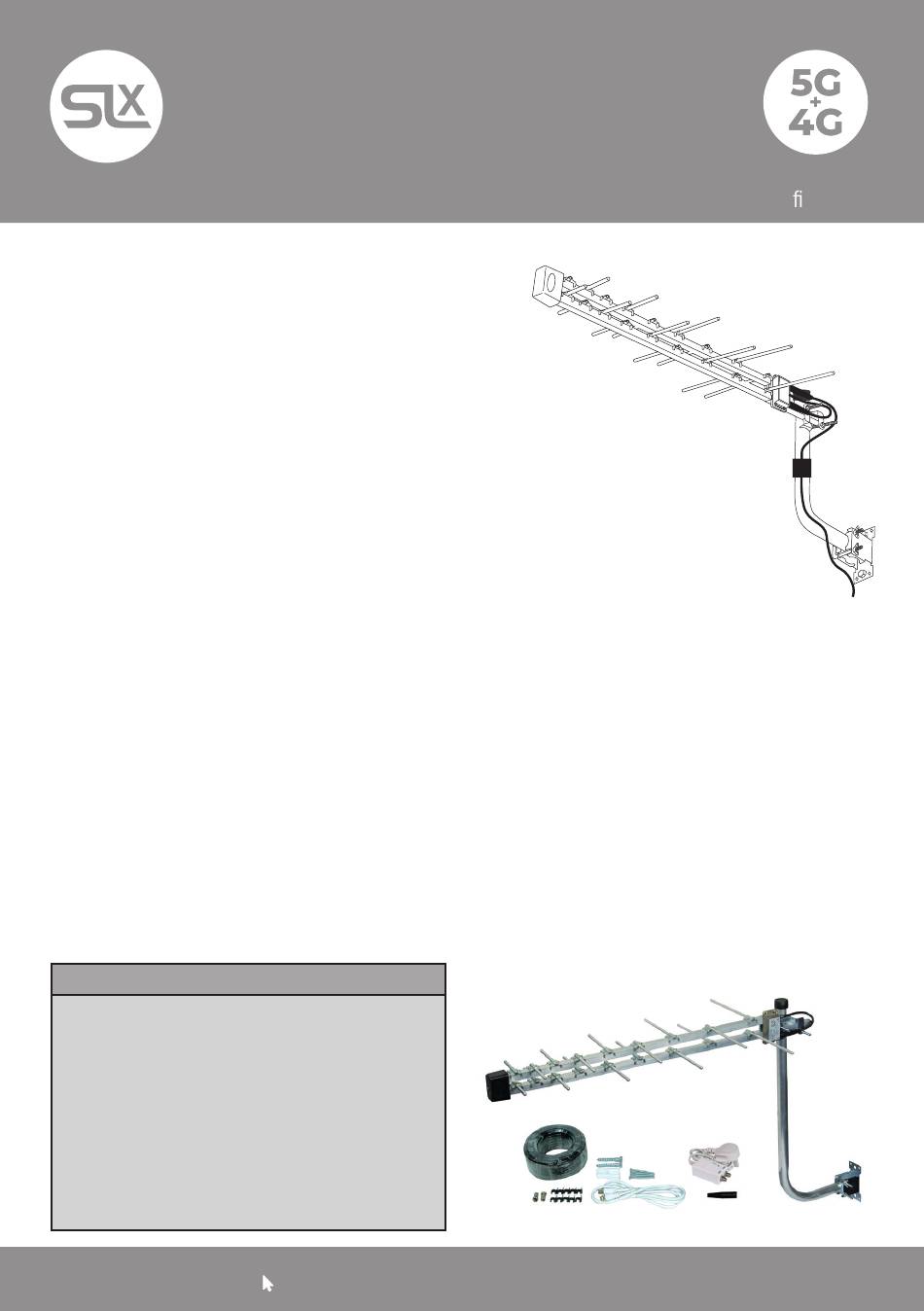

Contents of kit
1x Aerial with fitted signal booster
1x 12VDC power supply for signal booster
2x F connectors & 1x Rubber boot
1x Mast clamp
1x L pole with cap
1x Mounting bracket including fixing screws
and wall plugs
1x 10m RG6 Coax cable
10x Cable clips
1x 1.5m Flylead - coax plug to F plug
Megaboost TV
Aerial Kit GRP K
www.philex.com/products/technical-support/
To avoid injury always route cables or
wiring carefully. Ensure cable is correctly
routed before fixing into position, taking care not
to overtighten cable clips.
This kit contains small parts - keep out of reach
of children.
After installation make regular maintenance
checks for wear and tear.
Power Unit - Safety Precautions
Follow the safety advice on page 2 in "Install
and connect the power unit " regarding
positioning and ventillation required for
power unit.
If you need to replace the fuse in the fitted
plug a 3 Amp ASTA or BSI approved fuse must
be used.
5G & 4G
lter
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SLX 27885V
Summary of Contents for SLX 27885V
- Page 1 Megaboost Log Periodic Aerial Kit GRP K LMBK Amplified TV Aerial Kit User Guide 5G & 4G 27885V User Guide lter Introduction The ultra compact Megaboost aerial with signal booster offers a quick and economic method of providing good digital signals to your TV/set top box.
- Page 2 Preparing the Downlead Cable end of Fig. 2 Fig. 1 cut or tear insulation away foil should be flush with this face inner wire screw connector fold braid back body onto cable 2mm approx. 6.5mm over sheath Measure cable run first and cut the cable to fit with a bit to spare. Slide one of the weather boots provided over the aerial end of the cable.
- Page 3 Fig. 5 Horizontal Polarisation Vertical Polarisation Connecting and running cables Fig.6 First connect the ‘F’ lead from the aerial to the IN socket booster on the booster, remove the dust cap from the booster “OUT” socket right hand socket. Offer up the cable, with ‘F’ plug attached, ensuring that its inner wire enters the socket’s centre contact.
- Page 4 Installing and connecting the power unit The power unit provides 12VDC power for the aerial’s amplifier, choose a location within 1.5m of the TV/VCR or Freeview™ receiver location, so that the flylead supplied will reach the relevant aerial socket and within approx. 80cms of a 3 pin 13 Amp mains socket. PLEASE NOTE: the following safety precautions before installation and use •...
- Page 5 Additional technical data ErP/EuP directive No. (EU) 2019(1782) for Power Supply PSUFC Frequency 470-694MHz Manufacturer Philex Electronic Ltd. Overall Gain 22dB Address Kingfisher Wharf, Impedance 75Ω London Road, Bedford, Connectors F Connectors (Female) Trade mark United Kingdom. Registration The “CE” mark on a product or product packaging indicates that it complies Registration No.
- Page 6 Waste electrical and electronic products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority for recycling advice. UK Distributor EU Distributor Philex Electronic Ltd. Philex Electronic Ireland Ltd. Kingfisher Wharf, London Road, Robwyn House, Corrintra, Bedford MK42 0NX, Castleblayney, Co.
