SLX 27887VK User Manual

32 element medium gain outdoor tv aerial kit

Advertisement

32 Element Medium Gain
Outdoor TV Aerial Kit
27887VK
Congratulations on the purchase of your medium gain Yagi
TV aerial. The aerial is ideal for the reception of all available
signals in medium and strong signal areas.
• Tuned to prevent interference from 5G/4G mobile signals
• Easy to assemble with clip-on dipole
• Receives UHF, DVB-T and DVB-T2 frequencies
• Connection: F type

General Safety Precautions

Do not undertake work outdoors at height unless you are
competent in the use of ladders and other access equipment.
Always use correct equipment, observe appropriate safety
precautions and follow manufacturers instructions. If in doubt
consult a professional installer.
Before starting installation check structure is sound and check for
hidden wiring or plumbing.
When working on an installation outside, beware of overhead power lines.
Observe safe working practices, tread carefully on roofs and ensure
adequate lighting is available if working in loft or roof space.
Before making any connections switch electricity off at the mains.
To avoid injury always route cables or wiring carefully. Ensure cable
is correctly routed before fixing into position, taking care not to
overtighten cable clips.
This kit contains small parts - keep out of reach of children.
After installation make regular maintenance checks for wear and tear.

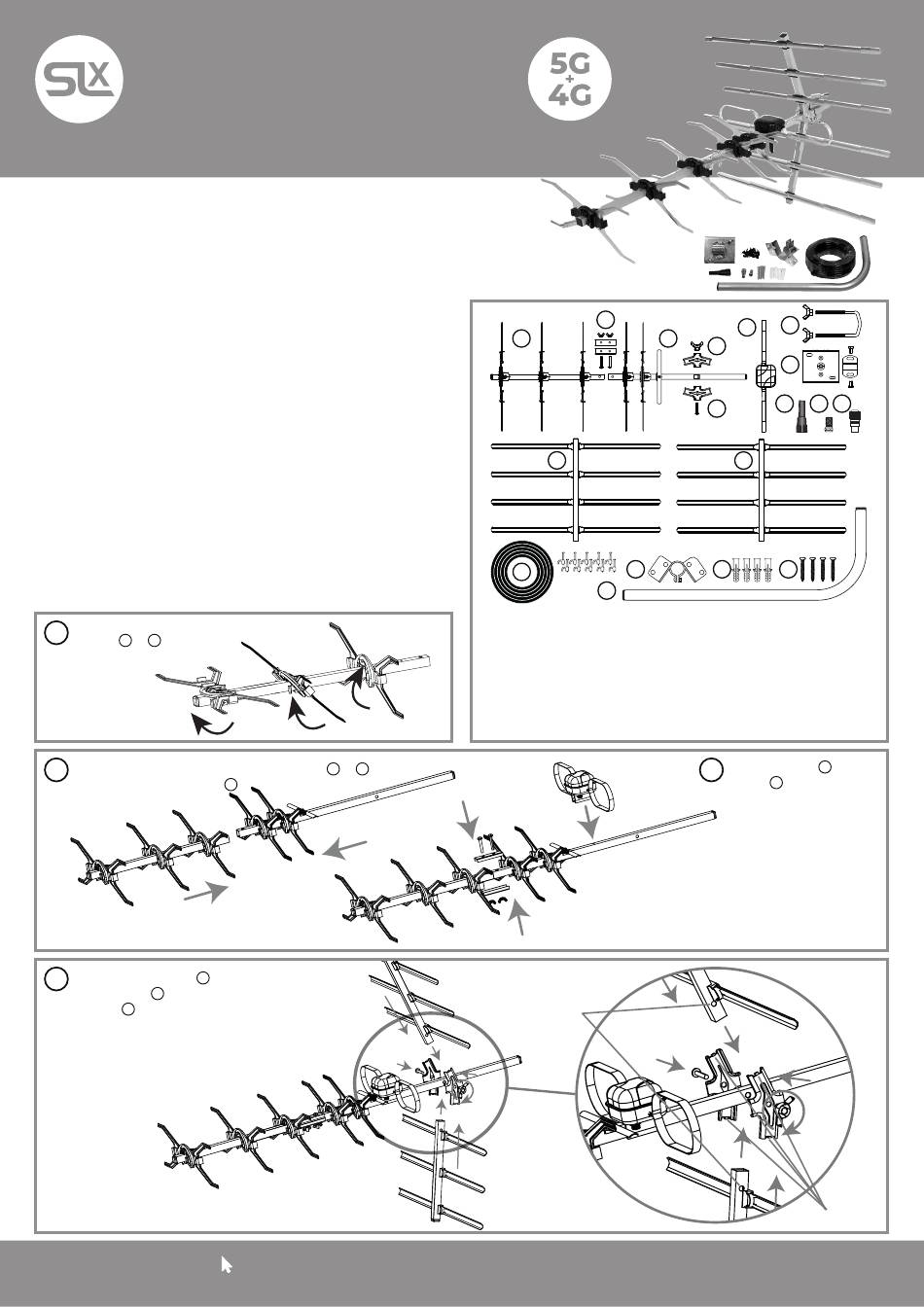

Aerial assembly

Rotate all the butterfly elements on the
A
boom
1
&
3
through 90o
into an upright position.
B
Join the front and back parts of the boom
using the joining bracket
D
Attach the reflectors
11
of the boom
3
using the reflector
clamps
4
, bolt and wing nut.
Check that the reflector clamp
tabs locate in the locating holes
on the reflectors.
User Guide
1
&
3
2
to the back
Support: www.philex.com/products/technical-support/
5G & 4G
tuned

Box Contents

2
1
11
13
12
16
1. Boom (front) x1
2. Boom joining bracket x1
(inc. bolts & wing nuts)
3. Boom (back) x1
4. Reflector clamps x2
(inc. bolt & wing nut)
5. Balun and dipole x1
6. V-Bolt and nuts
7. Mast clamp assembly x1
Locating
holes
6
5
3
4
7
8
9
10
4
11
14
15
8. Weather Boot x1
9. F Plug x1
10. Coax Plug x1
11. Reflectors x2
12. 10m Coax cable and clips
13. Pole mounting bracket x1
14. Wallplugs x4
15. Coach screws x4
16. L Cranked pole x1
C
Clip the balun
5
to the
boom
3
locating the
pin on the underside
of the balun into the
corresponding hole on
the boom
Locating tabs
1
