Features Include:
•
Less than 0.5mm thick (aerial element - excluding connector)
•
Suitable for Digital/HD TV reception in strong signal areas
•
Receives all locally available digital TV signals
•
Thin profile ideal for positioning behind picture frames
•
Can be painted to match the surface it is to be mounted on

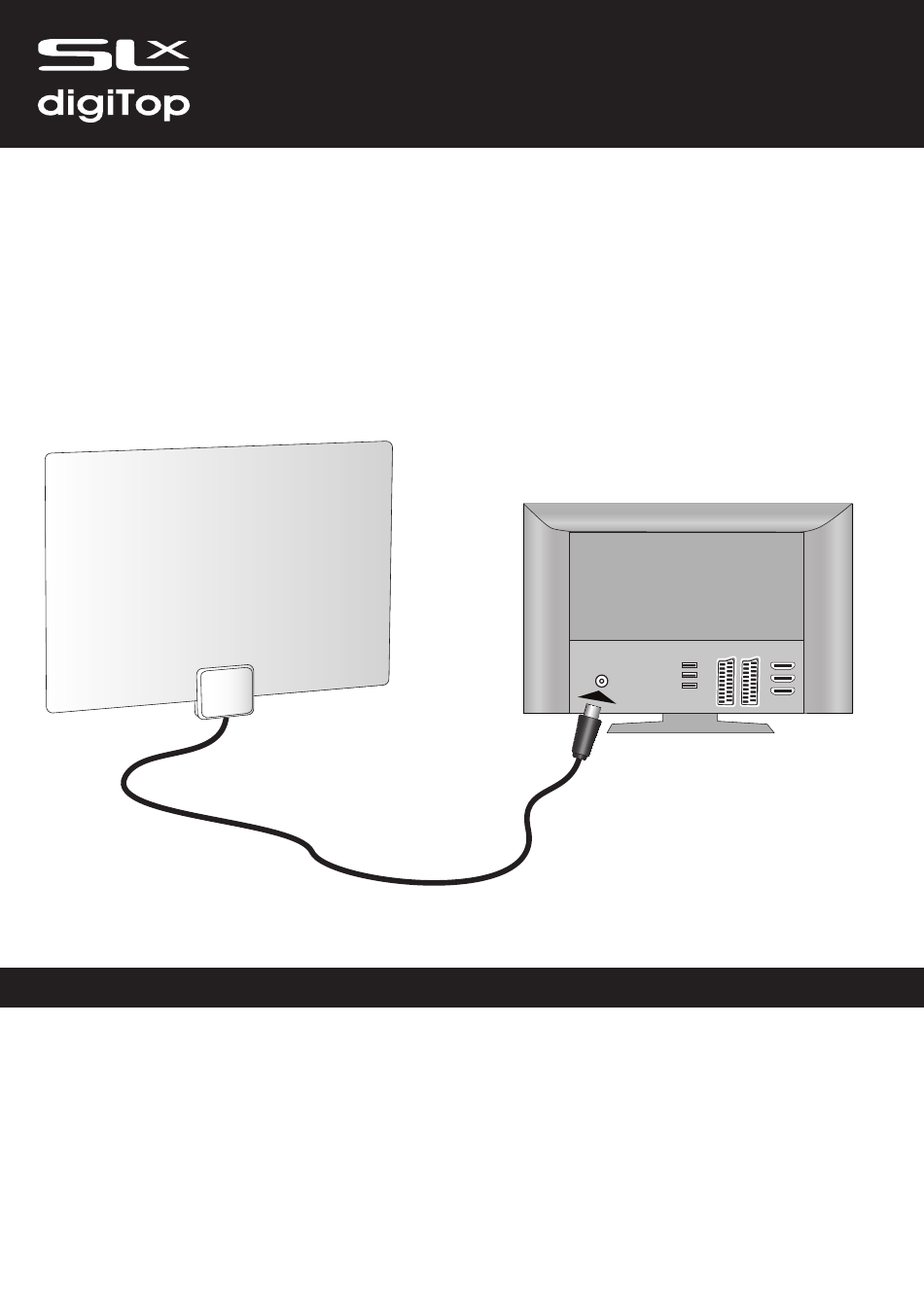

Fig. 1
Installation Instructions
1. If your TV has a built-in digital tuner, connect your aerial to the RF input on your TV using the
integrated coax cable supplied.
Alternatively you can use your aerial to provide TV signals to Freeview™ boxes, PVRs, VCRs and other
set top boxes. Connect the coax plug on your aerial lead to the ANT IN socket on your set top box and
connect the set top box to your TV using an HDMI, SCART or RF lead as appropriate (follow your set top
box instructions).
Ultra Thin Indoor Aerial
User GUIde
27800rG
ANT IN
Coax
Plug
TV
USB
SCART HDMI
Advertisement
Related Manuals for SLX digiTop 27800RG
Summary of Contents for SLX digiTop 27800RG
- Page 1 Ultra Thin Indoor Aerial User GUIde 27800rG Features Include: • Less than 0.5mm thick (aerial element - excluding connector) • Suitable for Digital/HD TV reception in strong signal areas • Receives all locally available digital TV signals • Thin profile ideal for positioning behind picture frames •...
-
Page 2: Troubleshooting
Aerial positioning and tuning You can attach the aerial to almost any flat vertical surface using the 2cm diameter adhesive pad supplied (peel off the backing on one side the adhesive pad and stick it to the balun in the position shown opposite).
