SLX 27884V User Manual

48 Element High Gain
Outdoor TV Aerial
27884V
Congratulations on the purchase of your high gain Yagi TV
aerial. The aerial is ideal for the reception of all available
signals in medium and weak signal areas.
• Tuned to prevent interference from 5G/4G mobile signals
• Easy to assemble with clip-on dipole
• Electronic 75Ω balun
• Connection: F type
General Safety Precautions
Do not undertake work outdoors at height unless you are
competent in the use of ladders and other access equipment.
Always use correct equipment, observe appropriate safety
precautions and follow manufacturers instructions. If in doubt
consult a professional installer.
Before starting installation check structure is sound and check for
hidden wiring or plumbing.
When working on an installation outside, beware of overhead power lines.
Observe safe working practices, tread carefully on roofs and ensure
adequate lighting is available if working in loft or roof space.
Before making any connections switch electricity off at the mains.
To avoid injury always route cables or wiring carefully. Ensure cable
is correctly routed before fixing into position, taking care not to
overtighten cable clips.
This kit contains small parts - keep out of reach of children.
After installation make regular maintenance checks for wear and tear.

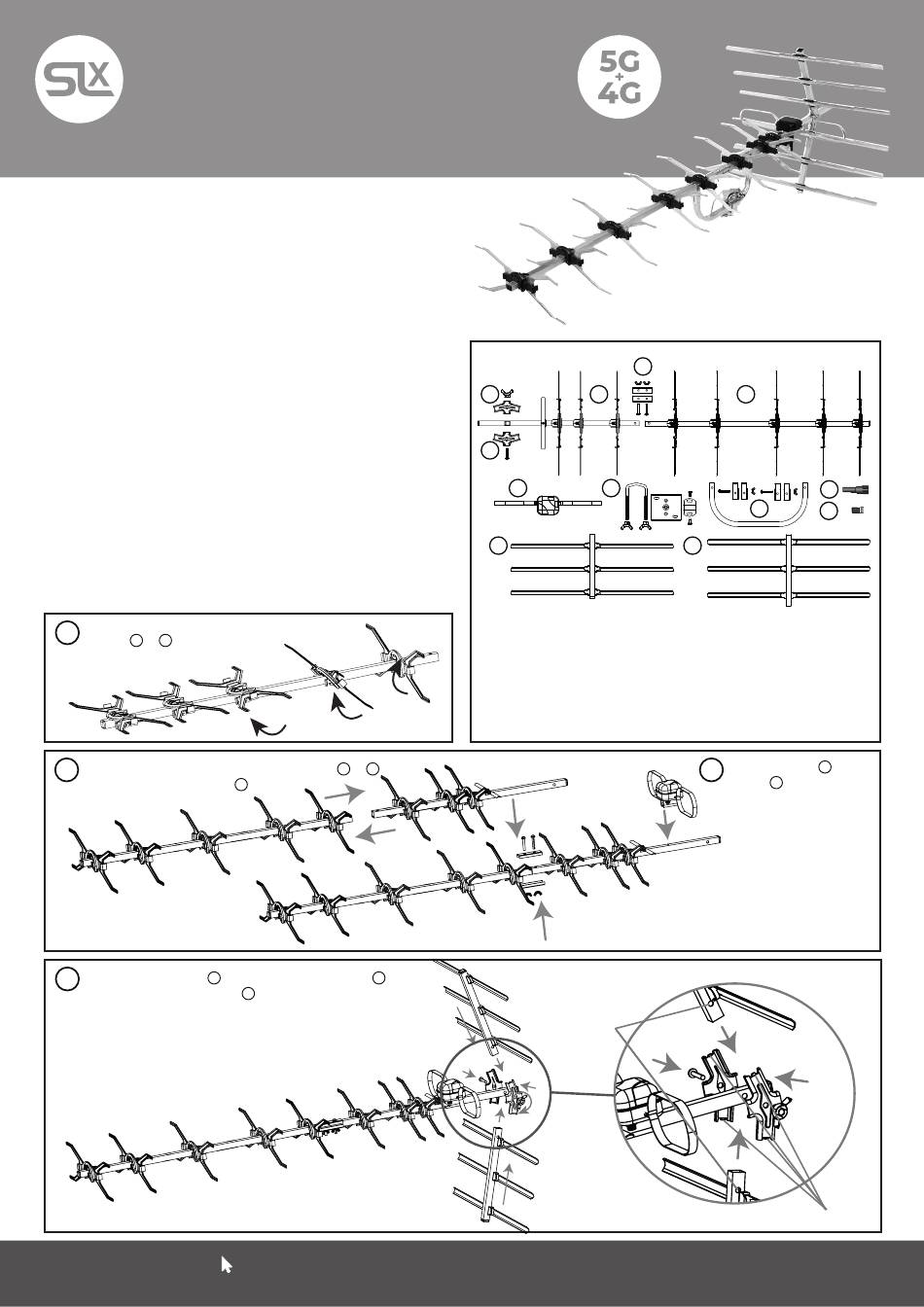

Aerial assembly
Rotate all the butterfly elements on the
A
boom 4 & 2 through 90o
into an upright position.
B
Join the front and back parts of the boom
using the joining bracket
D
Attach the reflectors 10
using the reflector clamps
Check that the reflector clamp tabs locate in
the locating holes on the reflectors.
User Guide
4 & 2
3
to the back of the boom 2
1 , bolt and wing nut.
Support: www.philex.com/products/technical-support/
5G & 4G
tuned
Box Contents
3
1 2
1
5 6
10
1. Reflector clamps x2
(inc. bolt & wing nut)
2. Boom (back) x1
3. Boom joining bracket x1
(inc. bolts & wing nuts)
4. Boom (front) x1
5. Balun and dipole x1
Locating
holes
4
8
7
9
10
6. Mast clamp assembly x1
7. Centre mount bracket x1
(inc. clips and fixings)
8. Weather Boot x1
9. F Plug x1
10. Reflectors x2
C
Clip the balun 5 to the
boom 2 locating the
pin on the underside
of the balun into the
corresponding hole on
the boom
Locating tabs
1
