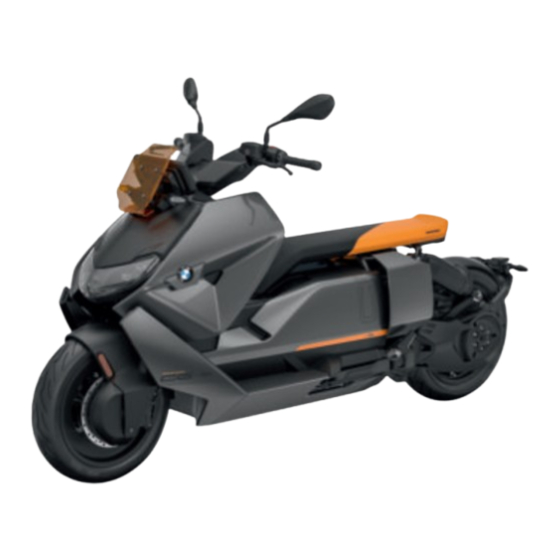

BMW Motorrad CE 04 Rider's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
BMW
MOTORRAD
RIDER'S MANUAL
(US MODEL)
CE 04
