TecTecTec KLYR Manual page 14

MODE: SLOPE
+
PIN SEEKER

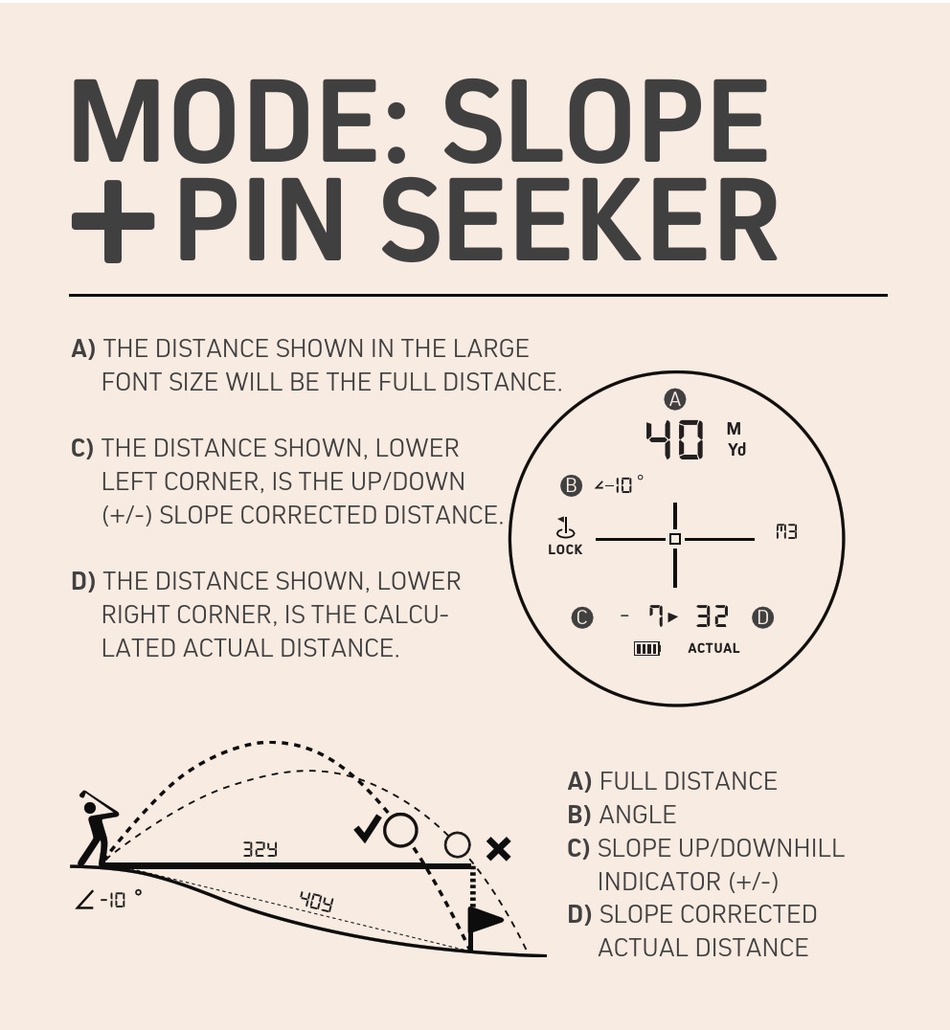

A) THE DISTANCE SHOWN IN THE LARGE
FONT SIZE WILL BE THE FULL DISTANCE.
C) THE DISTANCE SHOWN, LOWER
LEFT CORNER, IS THE UP/DOWN
(+/-) SLOPE CORRECTED DISTANCE.
D) THE DISTANCE SHOWN, LOWER
RIGHT CORNER, IS THE CALCU-
LATED ACTUAL DISTANCE.
32Y
-10
E
40
B
10
D
LOCK
-
7
C
A) FULL DISTANCE
B) ANGLE
C) SLOPE UP/DOWNHILL
INDICATOR (+/-)
D) SLOPE CORRECTED
ACTUAL DISTANCE
A
M
Yd
M3
32
D
ACTUAL
