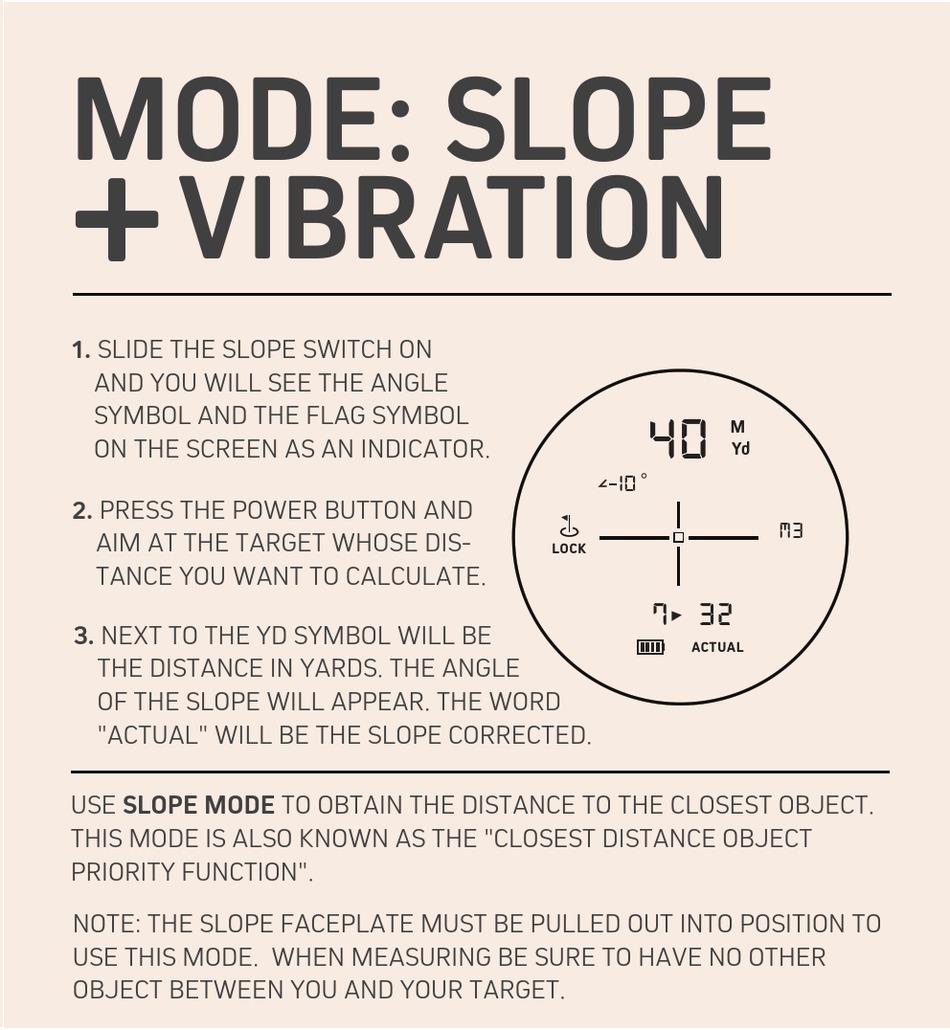

MODE: SLOPE
+
VIBRATION
1. SLIDE THE SLOPE SWITCH ON
AND YOU WILL SEE THE ANGLE
SYMBOL AND THE FLAG SYMBOL
ON THE SCREEN AS AN INDICATOR.
2. PRESS THE POWER BUTTON AND
AIM AT THE TARGET WHOSE DIS-
TANCE YOU WANT TO CALCULATE.
3. NEXT TO THE YD SYMBOL WILL BE
THE DISTANCE IN YARDS. THE ANGLE
OF THE SLOPE WILL APPEAR. THE WORD
"ACTUAL" WILL BE THE SLOPE CORRECTED.
USE SLOPE MODE TO OBTAIN THE DISTANCE TO THE CLOSEST OBJECT.
THIS MODE IS ALSO KNOWN AS THE "CLOSEST DISTANCE OBJECT
PRIORITY FUNCTION".
NOTE: THE SLOPE FACEPLATE MUST BE PULLED OUT INTO POSITION TO
USE THIS MODE. WHEN MEASURING BE SURE TO HAVE NO OTHER
OBJECT BETWEEN YOU AND YOUR TARGET.
40
M
10
LOCK
7 32
ACTUAL
Yd
M3
