Summary of Contents for TecTecTec ULT-S PRO

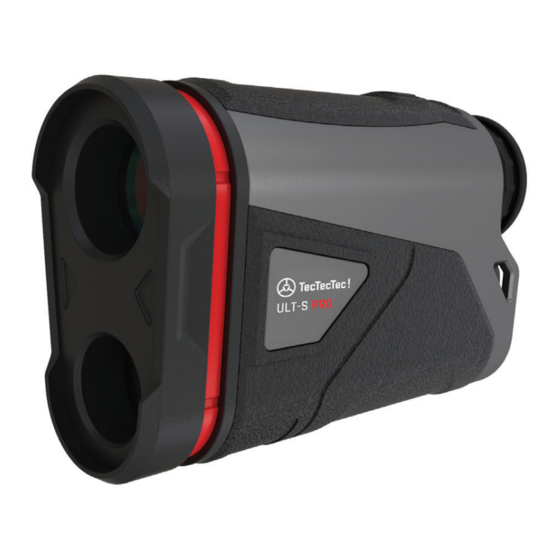

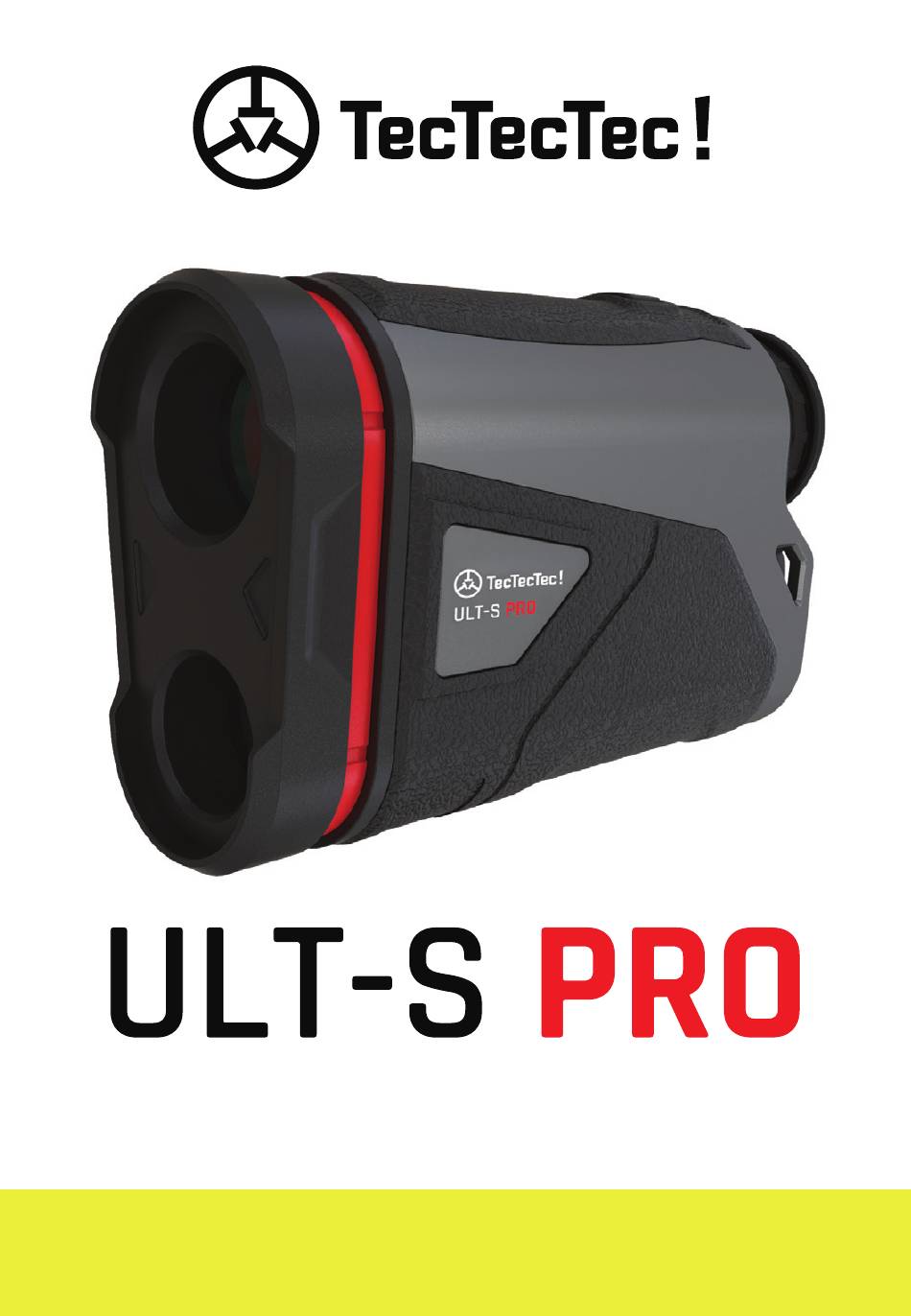

- Page 1 ® ™ STABILIZED GOLF RANGEFINDER WITH RED TOLED DISPLAY ENGLISH MANUAL...
- Page 2 VISIT US us.tectectec.com CALL US (833) 383-2669 EMAIL US us@tectectec.com FOLLOW US instagram.com/tectectecusa facebook.com/tectectecusa twitter.com/tectectecusa...
- Page 3 JUST OKAY IS NOT ACCEPTABLE WE WANT YOU TO BE HAPPY ® LOVE IT OR YOUR MONEY BACK!
- Page 4 WE PROUDLY STAND BEHIND OUR PRODUCTS HIGH-CLASS CUSTOMER SUPPORT (833) 383-2669...
- Page 5 THANK YOU You have made a great choice with TecTecTec ! We truly care that you are ® happy with your purchase. Please read this manual before use to learn how to operate and care for your rangefinder. If you have any questions or any issues at all, email or call us, we will work with you until you’re happy!
-
Page 6: Register Now
REGISTER NOW! us.tectectec.com/warranty... -
Page 7: Warranty
WARRANTY Please be sure to register the 2-Year Limited Warranty for your TecTecTec ! ® ULT-S Pro Rangefinder immediately! ™ Visit tectectec.com/warranty to validate and subscribe to this already included free service. We recommend that you do it now, so that you don’t miss out in case you need it. -
Page 8: What's In The Box
WHAT’S IN THE BOX 1x Rangefinder 1x Pouch 1x CR123 Battery 1x Wrist Strap 1x Microfiber Cloth 1x Manual FEATURES • USGA Tournament Rule 14-3 compliant • Visible Slope Switch • Red TOLED Display with four luminosity settings • Fog Mode •... - Page 9 SPECS Objective Lens 22mm Magnification Field of View 6° Exit Pupil Diameter 3.6mm Diopter Adjust Range ±3 Working Temperature -10 to 55° C Accuracy +-1 m(Y) Battery Type CR123 Battery Meter Stabilization Vibration Flag-Lock Weight 204g Dimensions 112x76x42mm...
-
Page 10: Let's Get Started
LET’S GET STARTED MODE BUTTON NORMAL/SCAN > PIN SEEKER Press briefly to change modes from Normal/Scan to Pin Seeker. Press and hold for 3 seconds to access the Settings. TARGET SEEKER SLOPE READY Advanced laser technology (See page 22). zeros in on the flag. - Page 11 TRUST YOUR RANGE MASTER YOUR GAME POWER BUTTON One button operation point. Automatic shut-off after 8 seconds unattended. EYEPIECE Rotate left or right to adjust the diopter until the view is in focus. WRIST STRAP SLOT To attach the wrist strap, loop it through the slot located on the bottom.
-
Page 12: Inserting The Battery
INSERTING THE BATTERY 1. Locate the battery compartment near the bottom of the unit, lift the flap and use it to turn the cover to open. CR123 2. Insert the lithium battery with the negative end is against the spring. 3. -
Page 13: Attaching The Strap
ATTACHING THE STRAP 1. Loop the wrist strap through the slot on the back of the rangefinder. 2. Pull the large end of the wrist strap through the small end to form a knot. 3. The wrist strap can be worn around your wrist to prevent the risk of the rangefinder accidentally falling out of you hands and becoming damaged. - Page 14 HOLDING THE RANGEFINDER 1. Hold the rangefinder straight with the Power Button facing up to the sky. 2. Look through the rubber eyepiece at the back of the rangefinder.
- Page 15 STABILIZATION The Optical Image Stabilization (OIS) will automatically turn on. There are no parameters to activate. The Optical Image Stabilization (OIS) will automatically reduce any slight movements for a smooth, steady view when aiming at a target. Holding the rangefinder steady is essential to getting an accurate reading.
-
Page 16: Adjusting The Eyepiece
ADJUSTING THE EYEPIECE 1. Look through the rubber eyepiece. 2. Rotate the dial left or right to adjust the diopter until the view is in focus. - Page 17 WEARING GLASSES 1. If you wear glasses or sunglasses, you can fold the rubber eyepiece backward in the direction of the front of the rangefinder. 2. Keep the rubber eyepiece unfolded when you are not wearing glasses. It keeps the outside light out to view the measurements most clearly.
- Page 18 ACTIVATED LASER The TecTecTec ! ULT-S Pro Rangefinder ™ ® uses eye-safe laser beams to measure the distance to objects up to 1093 yards away, by measuring the time it takes for the laser pulse to reflect off of the target and return.
- Page 19 ACTIVATED LASER Modes M1 and M2 will result in the distance measurement shown below the crosshairs (E) - the display will show nothing at the top above the crosshairs. Mode M3 for Pin Slope Mode will show DISTANCE BEING the slope corrected distance MEASURED at the top (A), pressing the Mode button will show...
-
Page 20: Power Button
POWER BUTTON TURN ON Press the Power Button to turn the rangefinder on. TURN OFF The rangefinder will automatically turn off after 8 seconds if left unattended. NOTE When you turn on the rangefinder, it will hold the last settings and mode set up. -
Page 21: Mode Button
MODE BUTTON 1. To access the Settings Menu, press and hold the Mode Button down MODE for 3 seconds. 2. To change Modes (M1, M2) press the Mode Button briefly to toggle MODE between each Mode: Normal/scan (M1) > Pin Seeker (M2) - Page 22 SLOPE READY TURN SLOPE ON Pull the Faceplate out to turn on Slope Ready Mode.
- Page 23 TURN SLOPE OFF Push the Faceplate in to turn off Slope Ready Mode. NOTE A closed faceplate is tournament legal. This rangefinder is USGA Tournament Rule 14-3 Compliant.
- Page 24 MODES & SETTINGS To recap, these are the measurement modes for your rangefinder: MODES Normal/Scan Mode Pin Mode Pin Slope Mode To customize your rangefinder, and to activate Fog Mode, these are the settings that you can access when you hold the Mode Button down for 3 seconds: MODE...
-
Page 25: Display Luminosity
DISPLAY LUMINOSITY There are four options for Display Luminosity (Auto/High/Med/Low). Press and hold the Mode Button to get to the MODE Settings. Press the Power Button change the level of luminosity. Auto will automatically adapt to the environment. AUTO HIGH... - Page 26 FOG MODE ON/OFF To activate Fog Mode, press and hold the To activate Fog Mode, press and hold the Mode Button Mode Button to access Settings. Then to access Settings. Then MODE press the Mode Button press the Mode Button once, and then once, and then MODE...
-
Page 27: Unit Of Measurement
UNIT OF MEASUREMENT Access Settings, then press the Mode Button twice. Press the Power Button MODE to change unit of measurement (yd/m). METERS YARDS CROSSHAIR/TARGET STYLES Access Settings then press the Mode Button three times. Press the MODE Power Button to change the style. -
Page 28: Normal Mode
NORMAL MODE "Normal Mode" will allow you to find the exact distance quickly. Use Normal Mode when you are measuring the distance to an area or a flag that is clearly defined with a simple background. Golfers tell us that they prefer Normal Mode for targets within 150 yards. - Page 29 NOTE NORMAL MODE will not show the FLAG ICON which is only visible in PIN SEEKER and PIN SLOPE MODES.
-
Page 30: Scan Mode
SCAN MODE Use "SCAN MODE" while in "NORMAL MODE" just by holding down the POWER BUTTON when determining the distance to hazards and when you want to have a comprehensive understanding of multiple distances on the course. Use SCAN MODE when it’s windy and for targets surrounded by background objects. - Page 31 YARDAS 179 YARD BUNKER 65 YARD NOTE SCAN MODE will not show the FLAG ICON which is only visible in Pin Seeker and Pin Slope Modes.
- Page 32 PIN SEEKER MODE + VIBRATION Use "Pin Seeker Mode" (to find the closest vertical object) the distance to a flagstick on a green with woods in the background; as well as when measuring overlapping targets. It is also good to use on a windy day.
- Page 33 The rangefinder will lock onto the nearest target (the flag) and display the distance. NOTE The rangefinder will vibrate when locked onto the flag, and flag will appear on the screen.
- Page 34 PIN SLOPE MODE + VIBRATION Slope Switch Pull the out. will appear on the screen for few seconds Mode 3 to indicate that you are in Power Button Press and hold the while aiming at a target whose distance you want to calculate. The corrected distance, will appear at the top part of the screen.
- Page 35 The rangefinder will vibrate when locked onto the flag, and flag will appear on the screen. A) Slope Corrected Distance/Angle B) Flag Indicator C) Actual Distance and Unit of Measurement...
-
Page 36: Maintenance
MAINTENANCE Remove dust or dirt on the lens surface using a soft, oil free brush before storing the rangefinder back in the carrying case. Remove smudges or fingerprints by gently rubbing with a soft glass cleaning cloth or a high-quality, oil-free tissue. - Page 37 If water vapor enters the unit place it in direct sunlight for two to three hours. DO NOT turn on. When storing the rangefinder for periods longer than 30 days, remove the battery first to avoid corrosion. Always store the rangefinder at room temperature or a controlled temperature in a dry place with low humidity.
-
Page 38: Troubleshooting
TROUBLESHOOTING NO DISPLAY 1. Reinsert the battery. 2. Check the polarity (+/-) of the battery. 3. Clean the battery contacts. 4. Make sure the battery is not drained. 5. Be sure battery contacts are straight and that nothing is blocking them. 6. - Page 39 CANNOT MEASURE 1. Be sure the device is powered on. 2. Be sure that nothing is blocking the lenses. 3. Make sure you are not trying to measure beyond the maximum measuring distance. 4. The target must be further away than 15 meters/16 yards.
- Page 40 SAFETY 1. KEEP AWAY from children TO AVOID INJURY, 2. DO NOT FOLLOW THESE power on while looking into the objective lens GUIDELINES or the light-receiving aperture on the front of the rangefinder 3. DO NOT aim at the eyes of people, animals, or at the sun 4.
