1260 VXI SWITCHING CARD
12 CHANNEL, 10A HIGH POWER
Tel: (800) 722-2528, (949) 859-8999; Fax: (949) 859-7139
5730 Northwest Parkway Suite 700, San Antonio, TX 78249
Tel: +33 (0)1 39 23 22 22; Fax: +33 (0)1 39 23 22 25
29-31 Cobham Road, Wimborne, Dorset BH21 7PF, United Kingdom
Tel: +44 (0) 1202 872800; Fax: +44 (0) 1202 870810
Tel: +39 (0)2 6123 901; Fax: +39 (0)2 6129 3606
Racal Instruments Group Limited, Technologie Park, D-51429 Bergisch Gladbach, Germany
Copyright 2005 by Racal Instruments, Inc. Printed in the United States of America. All rights reserved.
This book or parts thereof may not be reproduced in any form without written permission of the publisher.
SWITCH MODULE
MODEL 1260-21
PUBLICATION NO. 980673-065
RACAL INSTRUMENTS
United States
(Corporate Headquarters and Service Center)
4 Goodyear Street, Irvine, CA 92618
Tel: (210) 699-6799; Fax: (210) 699-8857
Europe
(European Headquarters and Service Center)
18 Avenue Dutartre, 78150 LeChesnay, France
Via Milazzo 25, 20092 Cinisello B, Milan, Italy
Tel: +49 2204 844205; Fax: +49 2204 844219
info@racalinstruments.com
sales@racalinstruments.com
helpdesk@racalinstruments.com
http://www.racalinstruments.com
info@racalinstruments.de
www.racalinstruments.de
PUBLICATION DATE: August 25, 2005

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1260 VXI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Racal Instruments 1260 VXI

  • Page 1 PUBLICATION DATE: August 25, 2005 Copyright 2005 by Racal Instruments, Inc. Printed in the United States of America. All rights reserved. This book or parts thereof may not be reproduced in any form without written permission of the publisher.
  • Page 2 THANK YOU FOR PURCHASING THIS RACAL INSTRUMENTS PRODUCT. For this product, or any other Racal Instruments product that incorporates software drivers, you may access our web site to verify and/or download the latest driver versions. The web address for driver downloads is: http://www.racalinstruments.com/downloads...
  • Page 3 Authorization is required from Racal Instruments before you send us your product for service or calibration. Call your nearest Racal Instruments support facility. A list is located on the last page of this manual. If you are unsure where to call, contact Racal Instruments, Inc. Customer Support Department in Irvine, California, USA at 1-800-722-3262 or 1-949-859-8999 or via fax at 1-949-859-7139.
  • Page 4 FOR YOUR SAFETY Before undertaking any troubleshooting, maintenance or exploratory procedure, read carefully the WARNINGS and CAUTION notices. This equipment contains voltage hazardous to human life and safety, and is capable of inflicting personal injury. If this instrument is to be powered from the AC line (mains) through an auto- transformer, ensure the common connector is connected to the neutral (earth pole) of the power supply.
  • Page 5: Table Of Contents

    1260-21 User Manual Table of Contents Chapter 1 ........................1-1 SPECIFICATIONS ........................1-1 Introduction..........................1-1 Specifications ........................1-3 Power Dissipation........................1-4 About MTBF .......................... 1-5 Ordering Information ......................1-6 Chapter 2 ........................2-1 INSTALLATION INSTRUCTIONS ................... 2-1 Unpacking and Inspection ..................... 2-1 Reshipment Instructions ......................
  • Page 6 1260-21 User Manual Chapter 3 ........................3-1 MODULE OPERATION ......................3-1 Operating Modes........................3-1 Operating In Message-Based Mode..................3-3 Channel Descriptors For The 1260-21 ................3-3 Reply To The MOD:LIST? Command................3-4 Operating The 1260-21 in Register-Based Mode..............3-4 Chapter 4 ........................
  • Page 7 1260-21 User Manual List of Figures Figure 1-1, The 1260-21 ......................1-2 Figure 2-1, 1260-21, Switch Block Diagram ................2-3 Figure 2-2, Front Panel Connector Pin Numbering..............2-5 Figure 3-1, Message-Based Mode of Operation............... 3-1 Figure 3-2, Register-Based Mode of Operation ................ 3-2 Figure 3-3, 1X2 Switch......................
  • Page 8 1260-21 User Manual This page was left intentionally blank.
  • Page 9: Chapter 1

    The 1260-21 is a high power, single-wire switching module that consists of twelve 1x2 switches. Each switch can handle current up to 10 Amps. The 1260-21 plug-in fits into a standard VXI chassis. Racal Instruments © 2005 Specifications 1-1...

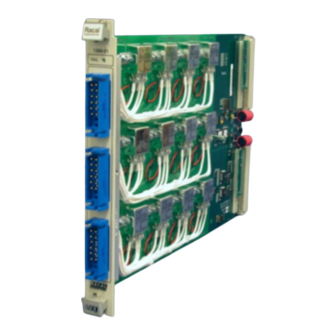

  • Page 10 1260-21 User Manual Figure 1-1, The 1260-21 Racal Instruments © 2005 Specifications 1-2...
  • Page 11: Specifications

    30g, 11 ms, ½ sine wave Vibration 0.013 in. P-P, 5-55 Hz Bench Handling 4 in., 45° Cooling See 1260-100 cooling data Temperature Operating 0°C to +55°C Non-operating -40°C to +75°C Relative Humidity 95%, non-condensing at < 30°C Racal Instruments © 2005 Specifications 1-3...
  • Page 12: Power Dissipation

    For example, if a 1260-21 module (containing 12 relays) has 3 relays closed, passing a current of 10 A, then: Total power dissipation = [(current) * (path resistance) * 3 ] + (coil power * 3) + (quiescent power) Racal Instruments © 2005 Specifications 1-4...
  • Page 13: About Mtbf

    Additionally, if fewer plug-in modules are used, more power may be dissipated by the remaining cards. By using a chassis with high cooling capacity, such as the Racal Instruments 1261B, almost any configuration may be realized. The 1260-21 MTBF is 1,500,000 hours, calculated in accordance...
  • Page 14: Ordering Information

    Option-01T (installed) OPT-405108-001 Option-01T (spare) 407531-001 Instruction Manual for Option-01T 980806-999 (Must be added w/ Option-01T installed) 1260-21 Connector Mating Kit Consists of: 407917 16-pin mating connector shells female connector pins Additional Manual 980673-065 Racal Instruments © 2005 Specifications 1-6...
  • Page 15: Chapter 2

    4. Have a qualified person check the instrument for safety before use. 1. Use the original packing material when returning the Reshipment switching module to Racal Instruments for servicing. The Instructions original shipping carton and the instrument’s plastic foam will provide the necessary support for safe reshipment.
  • Page 16: Module Installation

    The 1260-21 is a 12-channel module consisting of 12 individual Module DPDT relay switches. The relay architecture consists of 12 1x2 Configuration switches. For a block diagram of the switches used on the 1260-21, refer to Figure 2-1. Racal Instruments © 2005 Installation Instructions 2-2...
  • Page 17: Figure 2-1, 1260-21, Switch Block Diagram

    1260-21 User Manual Figure 2-1, 1260-21, Switch Block Diagram Racal Instruments © 2005 Installation Instructions 2-3...
  • Page 18: Front Panel Connectors

    J200, J201 and J202. It has one pin for each input and one for Connectors each output. See Figure 2-2 for pin numbering. Table 2-1 shows the mapping of channel numbers to connector pins. Information about available mating connectors is provided in Table 2-2. Racal Instruments © 2005 Installation Instructions 2-4...
  • Page 19: Figure 2-2, Front Panel Connector Pin Numbering

    1260-21 User Manual J200 J201 J202 Figure 2-2, Front Panel Connector Pin Numbering Racal Instruments © 2005 Installation Instructions 2-5...
  • Page 20: Table 2-1, 1260-21 Front-Panel Connections & Commands

    J201-5 CH6-2 J201-14 CH7-2 J201-6 COM 8 J202-9 COM 9 J202-1 CH8-1 J202-10 CH9-1 J202-2 CH8-2 J202-11 CH9-2 J202-3 COM 10 J202-12 COM 11 J202-4 CH10-1 J202-13 CH11-1 J202-5 CH10-2 J202-14 CH11-2 J202-6 Racal Instruments © 2005 Installation Instructions 2-6...
  • Page 21: Mating Connectors

    PLB16F0000 Connector block, 16- position. Mates with front-panel connector. Pins sold separately. Positronic FC112N2S Female contact, crimp type, for up to 12 AWG wire. Mates with front- panel connector pins. Low resistance contacts Racal Instruments © 2005 Installation Instructions 2-7...
  • Page 22: More About Maximum Current Ratings

    Slide the 1260-21 into the chassis until its connector mates with the connector on the chassis backplane. Push firmly to fully seat the connector. Tighten the two retaining screws at the top and bottom of the 1260-21 module. Racal Instruments © 2005 Installation Instructions 2-8...
  • Page 23: Chapter 3

    1260-21 module in this mode. A conceptual view of the register-based mode is shown in Figure 3-2 below. Racal Instruments © 2005 Module Operation 3-1...
  • Page 24: Figure 3-2, Register-Based Mode Of Operation

    I/O libraries such as VISA. To determine the relay settling time, refer to Relay Settling Time in the Specifications section. Consult the 1260-01T User’s Manual for a comparison of the message-based and register-based modes of operation. Racal Instruments © 2005 Module Operation 3-2...
  • Page 25: Operating In Message-Based Mode

    The default state of each 1x2 multiplexer with no relays energized is for channel 0 (of each multiplexer) to be connected to the common. The following examples illustrate the use of the channel Racal Instruments © 2005 Module Operation 3-3...
  • Page 26: Operating The 1260-21 In Register-Based Mode

    The status registers contain the Read Back bits from the coil voltage. The 1x2 switches require only one status bit each. Refer to Figure 3-3 for the relay order that comprises 1x2 switches. Racal Instruments © 2005 Module Operation 3-4...
  • Page 27 1260-21 reside at the first two odd-numbered A24 addresses for the module: (Base A24 Address of 1260-21) + 1 = Control Reg. 0 (Base A24 Address of 1260-21) + 3 = Control Reg. 1 Racal Instruments © 2005 Module Operation 3-5...
  • Page 28 Table 3-1 shows the channel assignments for each control register while Table 3-2 shows the channel assignments for each status register. Table 3-3 shows the register values for programming the 1260-21 module. Racal Instruments © 2005 Module Operation 3-6...
  • Page 29: Figure 3-3, 1X2 Switch

    XX = Switch XX = Switch R = Relay R = Relay Y = Relay # within Switch Y = Relay # within Switch ZZ = NC or NO Figure 3-3, 1X2 Switch Racal Instruments © 2005 Module Operation 3-7...
  • Page 30: Table 3-1, Control Register Channel Assignments

    Relay 0 Relay 0 Relay 0 (207R0) (206R0) (205R0) (204R0) (203R0) (202R0) (201R0) (200R0) Switch 11 Switch 10 Switch 9 Switch 8 Relay 0 Relay 0 Relay 0 Relay 0 (211R0) (210R0) (209R0) (208R0) Racal Instruments © 2005 Module Operation 3-8...
  • Page 31: Table 3-3, Registers Values

    0xxxxxxx 208-C 208-0 xxxxxxx0 xxxxxxx1 208-C 208-1 xxxxxxx1 xxxxxxx0 209-C 209-0 xxxxxx0x xxxxxx1x 209-C 209-1 xxxxxx1x xxxxxx0x 210-C 210-0 xxxxx0xx xxxxx1xx 210-C 210-1 xxxxx1xx xxxxx0xx 211-C 211-0 xxxx0xxx xxxx1xxx 211-C 211-1 xxxx1xxx xxxx0xxx Racal Instruments © 2005 Module Operation 3-9...
  • Page 32 1260-21 User Manual This page was left intentionally blank. Racal Instruments © 2005 Module Operation 3-10...
  • Page 33: Chapter 4

    1260-21 User Manual Chapter 4 PRODUCT SUPPORT Racal Instruments has a complete Service and Parts Department. Product Support If you need technical assistance or should it be necessary to return your product for repair or calibration, call 1-800-722-3262. If parts are required to repair the product at your facility, call 1-949-859-8999 and ask for the Parts Department.
  • Page 34: Support Offices

    Tel: +44 (0) 1202 872800; Fax: +44 (0) 1202 870810 Via Milazzo 25, 20092 Cinisello B, Milan, Italy Tel: +39 (0)2 6123 901; Fax: +39 (0)2 6129 3606 Racal Instruments Group Limited, Technologie Park, D-51429 Bergisch Gladbach, Germany Tel: +49 2204 844205; Fax: +49 2204 844219 Racal Instruments ©...
  • Page 35: Repair And Calibration Request Form

    3. Please give any additional information you feel would be beneficial in facilitating a faster repair time (i.e., modifications, etc.) 4. Is calibration data required? Yes No (please circle one) Call before shipping Ship instruments to nearest support office. Note: We do not accept “collect” shipments. Racal Instruments © 2005 Product Support 4-3...
