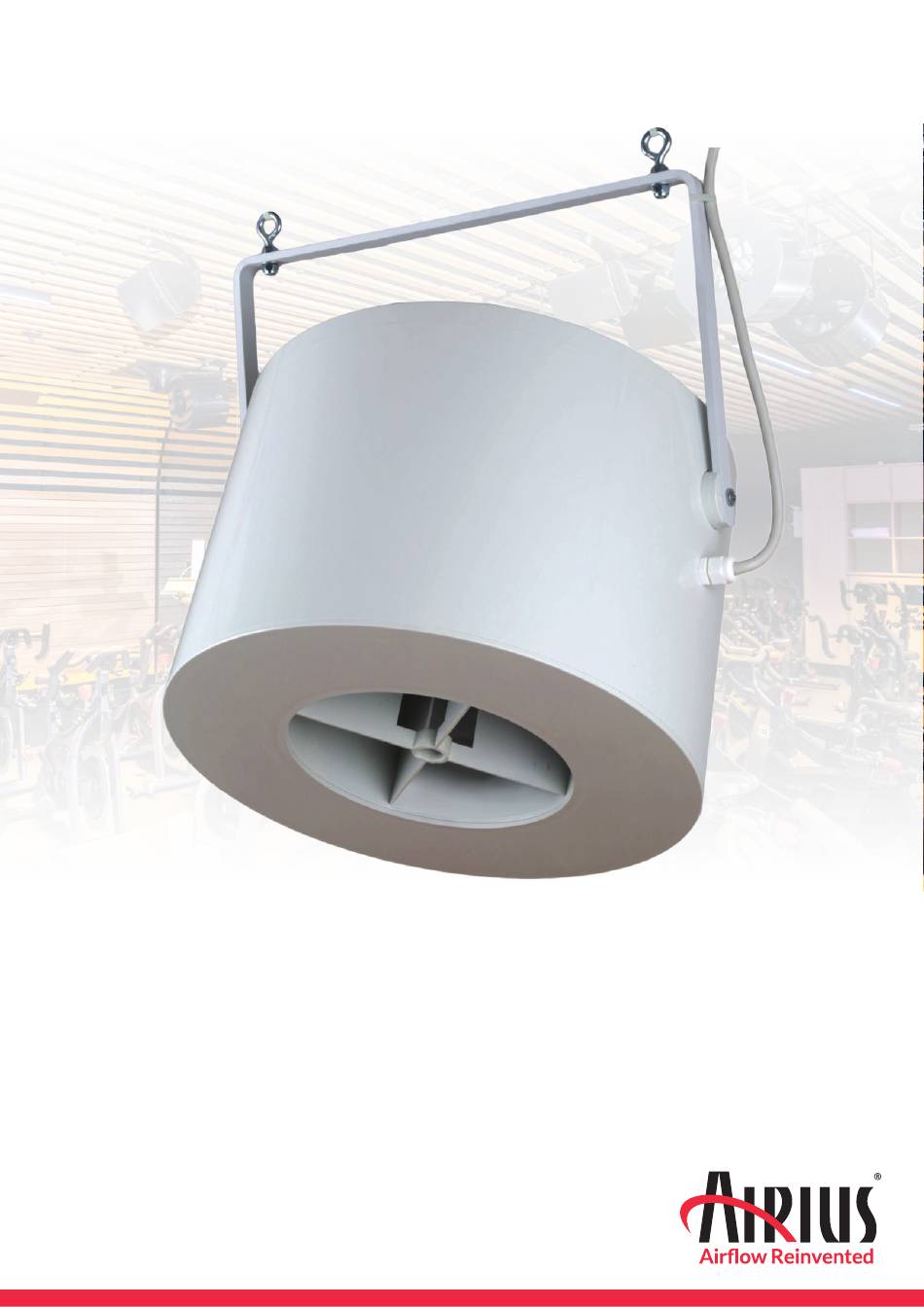

- Page 1 PRODUCT INFORMATION & INSTALLATION GUIDE 2021 Airius R20/EC Eyeball RETAIL SERIES www.airius.com.au...
-
Page 2: Warranty
Bacnet Protocol option for individual fan control PC/ABS Resin - Inc. internal fixed blade stator For horizontal installations Airius recommend the use of the Airius 5VA flame resistance rating proprietary cradle or a second cable or rod attachment to the discharge end to provide balance 1.8m steel safety leash cable (fastened to housing) -
Page 3: Velocity Profile
However it is permanently mounting in the ceiling. not imperative. For Cooling the Airius fan should be located to suit client’s require- MAINTENANCE ments. Suggested locations are from just under the ceiling or closer to the floor to ensure suitable air-cooling flow. - Page 4 R20/EC-E-230V Product Information & Installation Guide RETAIL SERIES - R20/EC Eyeball CHAIN HUNG (STRAIGHT) PLUG NOT SUPPLIED To Control Module Unistrut or Ceiling Beam Cord Secured Receptacle Rated Chains should be rated @ 26 Kgs each 240 VAC (Not supplied).
- Page 5 Optional Accessory For Wall Installations Warranty - 3 -years parts and workmanship. DESCRIPTION COLOUR OPTIONS Airius’ powder coated, 5mm, aluminum wall bracket is used with “Off White” the Air Pear Series, Designer Series 10, 15, 25, 45, or Retail Cool Gray 2C Series 20EC sized fans to mount to a vertical surface.
- Page 6 R20/EC-E-230V Product Information & Installation Guide RETAIL SERIES - R20/EC Eyeball CHAIN HUNG (ANGLED) PLUG NOT SUPPLIED To Control Module Unistrut or Ceiling Beam Cord Secured Receptacle Rated 240 VAC 240 v Plug Chains should be rated @ 26 Kgs each (single phase) (Not supplied).
- Page 7 R20/EC-E-230V Product Information & Installation Guide RETAIL SERIES - R20/EC Eyeball WALL FIXED (ANGLED) WALL FIXED (ANGLED) PLUG NOT SUPPLIED To Control Module Unistrut or Ceiling Beam Cord Secured Receptacle Rated Cable 240 VAC 240 v Plug (single phase) 300 VAC Rated Cord...
- Page 8 R20/EC-E-230V Product Information & Installation Guide RETAIL SERIES - R20/EC Eyeball PEARLINK Reduce installation cost & control your Airius fan system over 2.4Ghz WiFi DISTRIBUTED COMFORT FEATURES The PearLink control system offers total fan control from a Interface is web-based (Chrome/Firefox), iOS, or Android »...
- Page 9 R20/EC-E-230V Product Information & Installation Guide RETAIL SERIES - R20/EC Eyeball Housing: PC/ABS, Off white (cool gray 2c) Mounting: Factory installed at time of ordering. Power Consumption Idle: 16mA TX/RX: 200mA AIRIUS FAN SYSTEM Wi-Fi Characteristics 802.11b/g/n 2.4 GHz TX Power 18 dBm @ 1DSSS...
-
Page 10: Account Creation
This is your command-and-control portal for the Airius fans at your facility. You can use the web based dashboard or the the Airius PearLink mobile app, available for both iOS and Android, to operate fans to fully control the air movement in a room. -
Page 11: Provisioning Devices
1.5-1.8 mts A.F.F. Preferably next to your existing thermostat. Open the Airius App and enter your email address and password to log in. You are now ready to provision your devices. Note: the screen shots are from an Android device and might vary slightly for iOS devices. - Page 12 R20/EC-E-230V Product Information & Installation Guide RETAIL SERIES - R20/EC Eyeball > > Name the device Continue Enter the associated invoice number > > Enter the ceiling height where the Review the information and select Select, “Add new device and apply most recent profile”...
-
Page 13: Device Control
R20/EC-E-230V Product Information & Installation Guide RETAIL SERIES - R20/EC Eyeball DEVICE CONTROL The PearLink app allows for individual and group fan control. PearLink will monitor the air temperature at the fan and at the floor to provide a delta temperature. The humidity and air temperature will be logged and viewed within the app. This data can be exported as a csv file. -
Page 14: Network Migration
R20/EC-E-230V Product Information & Installation Guide RETAIL SERIES - R20/EC Eyeball NETWORK MIGRATION If you need to change your Wi-Fi network name or password for any reason, you must follow this process. If the name or password is changed before this step, the devices cannot be connected to. The only way to recover them is to revert back to the old network name and password. - Page 15 R20/EC-E-230V Product Information & Installation Guide RETAIL SERIES - R20/EC Eyeball BMS CONTROL WIRING GENERAL NOTES 0-10 V signal allows infinitely variable open loop speed control Connecting the red and yellow leads will allow EC fans to operate Blue Blue (Ground)
- Page 16 R20/EC-E-230V Product Information & Installation Guide RETAIL SERIES - R20/EC Eyeball POTENTIOMETER EC (0-10V) NON-POWERED SPEED CONTROLLER FEATURES Input Voltage: 10VDC Output Voltage: 0-10VDC OPERATION Rotating the dial will change the output voltage from 0VDC to 10VDC and change fan speed. The push button is used for on/off control.
-
Page 17: Specifications
25mm SPECIFICATIONS CONTROLLER DESCRIPTION Operating voltage 24V DC ONLY (By Others) Overview The Airius Touch Screen Controller is a programmable Mounting Surface mount backbox option room controller ideal for managing Airius EC fans. Display 3.5” Resistive touch-screen The unit has no on-board inputs & outputs, but is... - Page 18 Product Information & Installation Guide RETAIL SERIES - R20/EC Eyeball INPUT OUTPUT MODULE FOR AIRIUS TOUCH SCREEN CONTROLLER Fire Alarm Connection (By Others): UI1 Compact Modbus RTU input/output module for the Airius room controller Indoor Secondary Temperature Sensor Real-time clock Connection: U16...
- Page 19 R20/EC-E-230V Product Information & Installation Guide RETAIL SERIES - R20/EC Eyeball CONNECTIONS M/TIO DESCRIPTION General Triac Outputs 2 triac outputs are provided with fl exible confi guration options, M/TIO modules provide a compact input/output solution for Modbus allowing control of on/off thermoelectric (PWM) or fl oating RTU master controllers.
- Page 20 R20/EC-E-230V Product Information & Installation Guide RETAIL SERIES - R20/EC Eyeball WIRING DIAGRAM - 4 OR 8 FANS OR GROUPS OF IO UNIT POWER SUPPLY BLUE BLUE YELLOW EC Fan YELLOW EC Fan 0-10 Volt control cable example BLUE BLUE...
- Page 21 R20/EC-E-230V Product Information & Installation Guide RETAIL SERIES - R20/EC Eyeball AIRIUS TOUCH SCREEN CONTROLLER WITH FIRE ALARM INPUT (BY OTHERS) AND EXT TEMP SENSOR - 4 FANS IO UNIT POWER SUPPLY BLUE EC Fan YELLOW 0-10 Volt control cable example...
- Page 22 R20/EC-E-230V Product Information & Installation Guide RETAIL SERIES - R20/EC Eyeball AIRIUS TOUCH SCREEN CONTROLLER WITH FIRE ALARM INPUT (BY OTHERS) AND EXT TEMP SENSOR - 8 FANS IO UNIT POWER SUPPLY BLUE BLUE EC Fan YELLOW EC Fan YELLOW...
- Page 23 R20/EC-E-230V Product Information & Installation Guide RETAIL SERIES - R20/EC Eyeball STANDARD WALL BOX INSTALLATION Front Back Exterior Fit base unit in fl ush-mounted box. Fasten metal frame to wall box with two screws*. max 2.6 mm max 3.5 mm Interior max 6.9 mm...
-
Page 24: Installation Tips
R20/EC-E-230V Product Information & Installation Guide RETAIL SERIES - R20/EC Eyeball INSTALLATION TIPS 0.5 m 1.5 m +61 (0) 7 5645 6581 info@airius.com.au www.airius.com.au... - Page 25 Airius (Oceania) Pty Ltd P.O. Box 1812, Byron Bay, NSW 2481 +61 (0) 7 5645 6581 www.airius.com.au...
