Summary of Contents for Airius Q Series

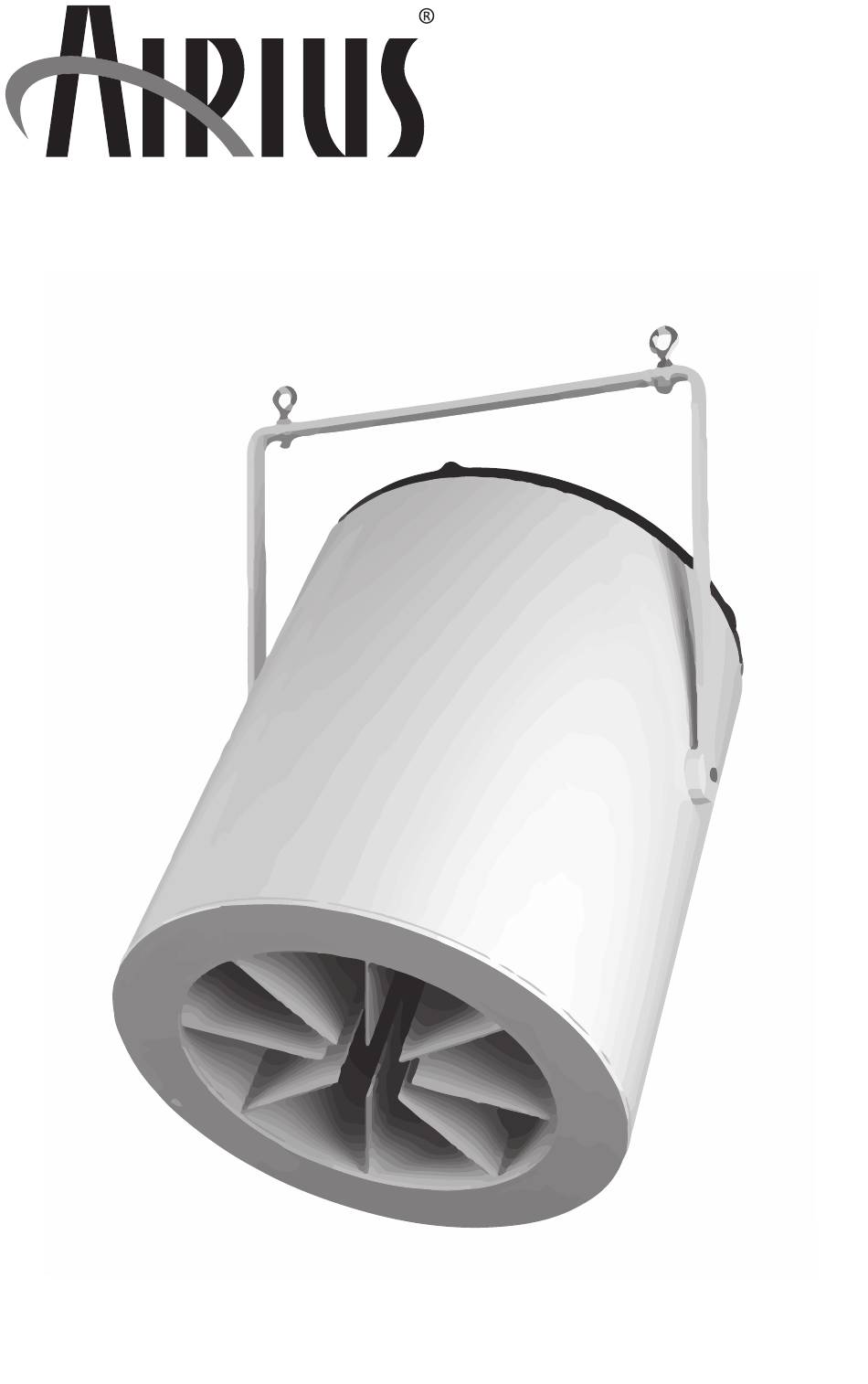

- Page 1 Q SERIES INSTALLATION, OPERATION & MAINTENANCE AIRFLOW REINVENTED...
- Page 2 Installation » About the Airius Q Series Operation » The Q Series unit is an energy-efficient air turbine, designed to continuously move a column Maintenance » of air to the floor for destratification and air circulation purposes. A typical system installation...
- Page 3 Do not carry the Q Series unit by the cord. Do register. Do not position the unit close to other not use the cord as a handle. Do not use the cord objects that will interfere with fan operation.
- Page 4 Safety Precautions Continued Pre-Installation Electrical The Q Series unit is designed to be used with only the electrical voltage identified on the label located in the nozzle and on the bottom of the ELECTRICAL WORK MUST BE PERFORMED motor. Connecting to any other voltage could...
- Page 5 Branch Circuit Protection cables, carabiners, bridle rings, beam clamps and bolts. Roof structure, building construction, The Q Series fans do not include fuses for branch electrical outlets/service and accessibility circuit protection. The branch circuit must have will define the appropriate hardware for each a dedicated circuit breaker or similar device.
- Page 6 DEFEAT this SAFETY DEVICE or modify the plug in any way. To confirm electrical continuity, if possible, plug the Q Series system into an energized outlet on 230/277VAC no plug supplied. When fitting the ground, similar to the outlet installed in the a plug always ensure that all relevant local ceiling, before permanently mounting.
- Page 7 Q Series unit, 60 lb. (27 kg.). Example - 1/4” (7 mm) diameter steel bolt is rated at 60 lb. (27 kg.) load.
- Page 8 After ensuring the Q Series system is firmly attached, remove your hands from the unit. It is then safe to plug the unit into the power source using the approved plug to confirm function and electrical continuity. NOTE: SECURE the power cord to the ceiling structure as added security.
- Page 9 Cleaning: building occupants. Caution: Stationary blades can cause injury! The Q Series is an energy-efficient air turbine, designed to continuously move a column of air to Unplug unit from power source first the floor. A typical Q Series installation includes...
- Page 10 These include new units or units rebuilt under Airius’ factory refurbish program. Airius will repair or replace such units, at Airius’ sole discretion, if there is any defect in their materials or workmanship caused by Airius during the warranty period. With respect to replacement or repair rendered, Airius warrants that the parts replaced or repaired will operate properly and be free from defects in materials and workmanship for the remainder of the original warranty period.
- Page 11 711 South Lincoln Street Longmont, Colorado 80501 Airius will return the unit(s) freight prepaid. Airius may elect to repair the same unit at customer site or offer replacement parts to facilitate repair and reduce customer down time and expense. Airius is not responsible for misuse of their product.
