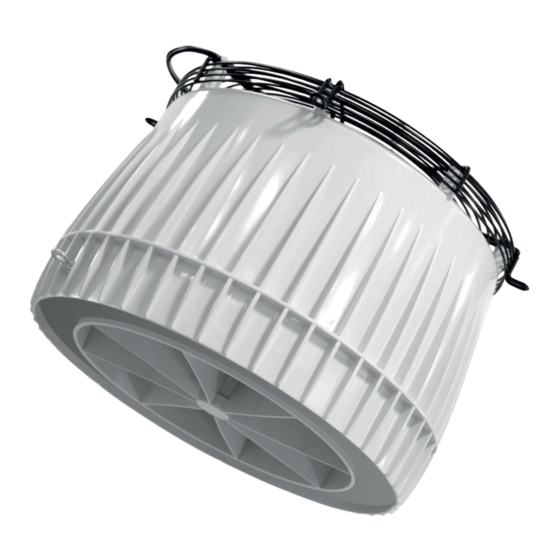

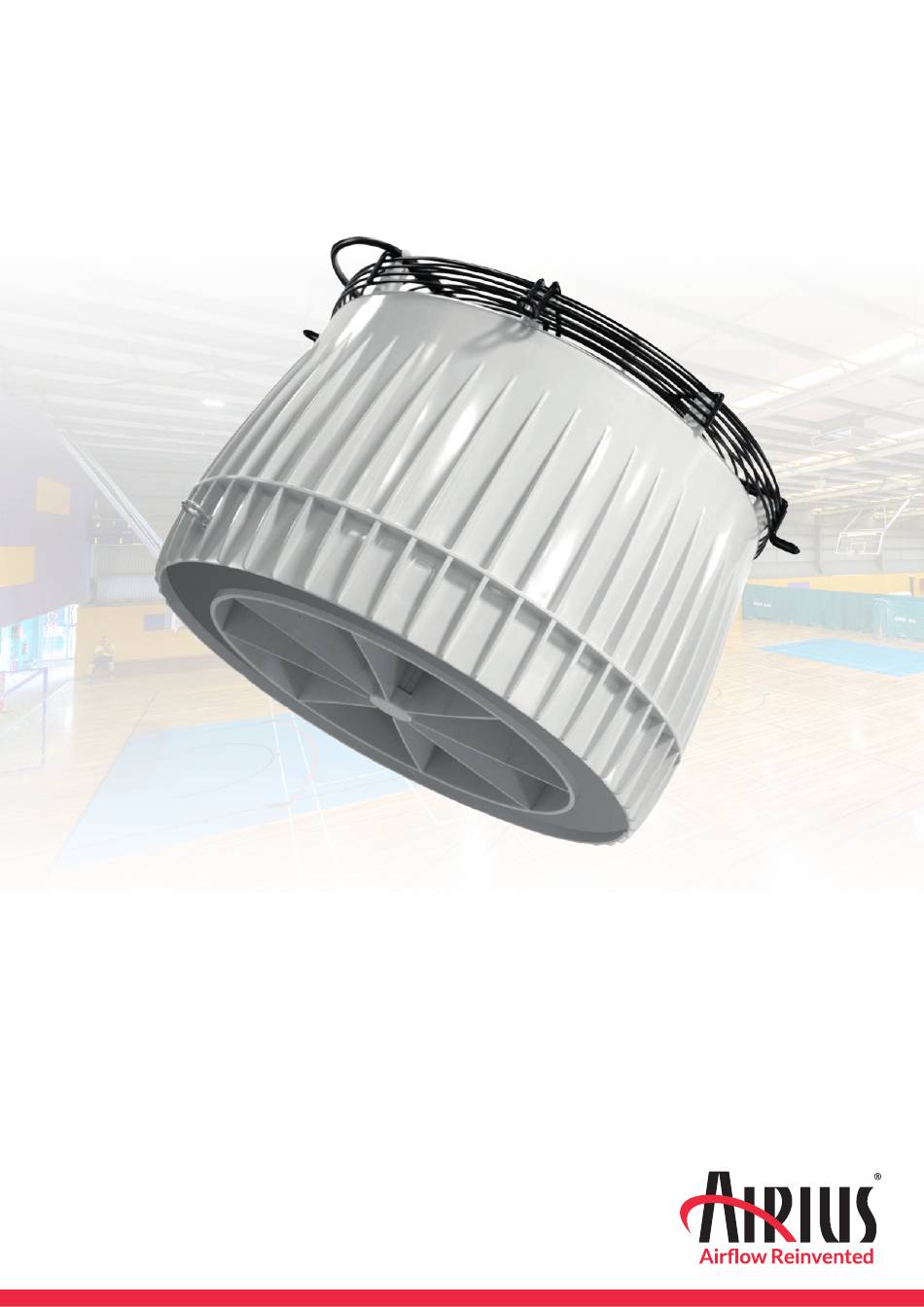

- Page 1 PRODUCT INFORMATION & INSTALLATION GUIDE 2021 Airius Model G400/EC SAPPHIRE SERIES www.airius.com.au...
-
Page 2: Warranty
HOUSING Bacnet Protocol for individual fan control PC/ABS Resin - Inc. internal fixed blade stator For horizontal installations Airius recommend the use of the Airius 5VA flame resistance rating proprietary cradle or a second cable or rod attachment to the 1.8m steel safety leash cable (fastened to housing) -
Page 3: Velocity Profile
However it is permanently mounting in the ceiling. not imperative. For Cooling the Airius fan should be located to suit client’s require- MAINTENANCE ments. Suggested locations are from just under the ceiling or closer to the floor to ensure suitable air-cooling flow. - Page 4 Chemsets or Dyna Bolts. (single phase) If hung more than 1.2 metres below the 300 VAC Rated Cord roof, Airius recommend 4 x chains attached Furnished 2m equally around the fan and splayed outwards up to 20° off vertical.
- Page 5 SS-G400/EC-230V Product Information & Installation Guide SAPPHIRE SERIES - Model G400/EC PEARLINK Reduce installation cost & control your Airius fan system over 2.4Ghz WiFi DISTRIBUTED COMFORT FEATURES The PearLink control system offers total fan control from a Interface is web-based (Chrome/Firefox), iOS, or Android »...
- Page 6 SS-G400/EC-230V Product Information & Installation Guide SAPPHIRE SERIES - Model G400/EC Housing: PC/ABS, Off white (cool gray 2c) Mounting: Factory installed at time of ordering. Power Consumption Idle: 16mA TX/RX: 200mA AIRIUS FAN SYSTEM Wi-Fi Characteristics 802.11b/g/n 2.4 GHz TX Power 18 dBm @ 1DSSS...
-
Page 7: Account Creation
This is your command-and-control portal for the Airius fans at your facility. You can use the web based dashboard or the the Airius PearLink mobile app, available for both iOS and Android, to operate fans to fully control the air movement in a room. -
Page 8: Provisioning Devices
1.5-1.8 mts A.F.F. Preferably next to your existing thermostat. Open the Airius App and enter your email address and password to log in. You are now ready toprovision your devices. Note: the screen shots are from an Android device and might vary slightly for iOS devices. - Page 9 SS-G400/EC-230V Product Information & Installation Guide SAPPHIRE SERIES - Model G400/EC > > Name the device Continue Enter the associated invoice number > > Enter the ceiling height where the Review the information and select Select, “Add new device and apply most recent profile”...
-
Page 10: Device Control
SS-G400/EC-230V Product Information & Installation Guide SAPPHIRE SERIES - Model G400/EC DEVICE CONTROL The PearLink app allows for individual and group fan control. PearLink will monitor the air temperature at the fan and at the floor to provide a delta temperature. The humidity and air temperature will be logged and viewed within the app. This data can be exported as a csv file. -
Page 11: Network Migration
SS-G400/EC-230V Product Information & Installation Guide SAPPHIRE SERIES - Model G400/EC NETWORK MIGRATION If you need to change your Wi-Fi network name or password for any reason, you must follow this process. If the name or password is changed before this step, the devices cannot be connected to. The only way to recover them is to revert back to the old network name and password. - Page 12 SS-G400/EC-230V Product Information & Installation Guide SAPPHIRE SERIES - Model G400/EC BMS CONTROL WIRING GENERAL NOTES 0-10 V signal allows infinitely variable open loop speed control Connecting the red and yellow leads will allow EC fans to operate Blue Blue (Ground)
- Page 13 SS-G400/EC-230V Product Information & Installation Guide SAPPHIRE SERIES - Model G400/EC POTENTIOMETER EC (0-10V) NON-POWERED SPEED CONTROLLER FEATURES Input Voltage: 10VDC Output Voltage: 0-10VDC OPERATION Rotating the dial will change the output voltage from 0VDC to 10VDC and change fan speed. The push button is used for on/off control.
-
Page 14: Specifications
25mm SPECIFICATIONS CONTROLLER DESCRIPTION Operating voltage 24V DC ONLY (By Others) Overview The Airius Touch Screen Controller is a programmable Mounting Surface mount backbox option room controller ideal for managing Airius EC fans. Display 3.5” Resistive touch-screen The unit has no on-board inputs & outputs, but is... - Page 15 Product Information & Installation Guide SAPPHIRE SERIES - Model G400/EC INPUT OUTPUT MODULE FOR AIRIUS TOUCH SCREEN CONTROLLER Fire Alarm Connection (By Others): UI1 Compact Modbus RTU input/output module for the Airius room controller Indoor Secondary Temperature Sensor Real-time clock Connection: U16...
- Page 16 SS-G400/EC-230V Product Information & Installation Guide SAPPHIRE SERIES - Model G400/EC CONNECTIONS M/TIO DESCRIPTION General Triac Outputs 2 triac outputs are provided with fl exible confi guration options, M/TIO modules provide a compact input/output solution for Modbus allowing control of on/off thermoelectric (PWM) or fl oating RTU master controllers.
- Page 17 SS-G400/EC-230V Product Information & Installation Guide SAPPHIRE SERIES - Model G400/EC WIRING DIAGRAM - 4 OR 8 FANS OR GROUPS OF BLUE BLUE YELLOW EC Fan YELLOW EC Fan BLUE BLUE EC Fan EC Fan YELLOW YELLOW BLUE BLUE EC Fan...
- Page 18 SS-G400/EC-230V Product Information & Installation Guide SAPPHIRE SERIES - Model G400/EC AIRIUS TOUCH SCREEN CONTROLLER WITH FIRE ALARM INPUT (BY OTHERS) AND EXT TEMP SENSOR - 4 FANS BLUE EC Fan YELLOW BLUE EC Fan YELLOW BLUE EC Fan YELLOW...
- Page 19 SS-G400/EC-230V Product Information & Installation Guide SAPPHIRE SERIES - Model G400/EC AIRIUS TOUCH SCREEN CONTROLLER WITH FIRE ALARM INPUT (BY OTHERS) AND EXT TEMP SENSOR - 8 FANS BLUE BLUE EC Fan YELLOW EC Fan YELLOW BLUE BLUE EC Fan...
- Page 20 SS-G400/EC-230V Product Information & Installation Guide SAPPHIRE SERIES - Model G400/EC STANDARD WALL BOX INSTALLATION Front Back Exterior Fit base unit in fl ush-mounted box. Fasten metal frame to wall box with two screws*. max 2.6 mm max 3.5 mm Interior max 6.9 mm...
-
Page 21: Installation Tips
SS-G400/EC-230V Product Information & Installation Guide SAPPHIRE SERIES - Model G400/EC INSTALLATION TIPS 0.5 m 1.5 m +61 (2) 6608 2736 info@airius.com.au www.airius.com.au... - Page 22 Airius (Oceania) Pty Ltd P.O. Box 1812, Byron Bay, NSW 2481 +61 (2) 6608 2736 www.airius.com.au...
