Summary of Contents for Airius PEARL S1

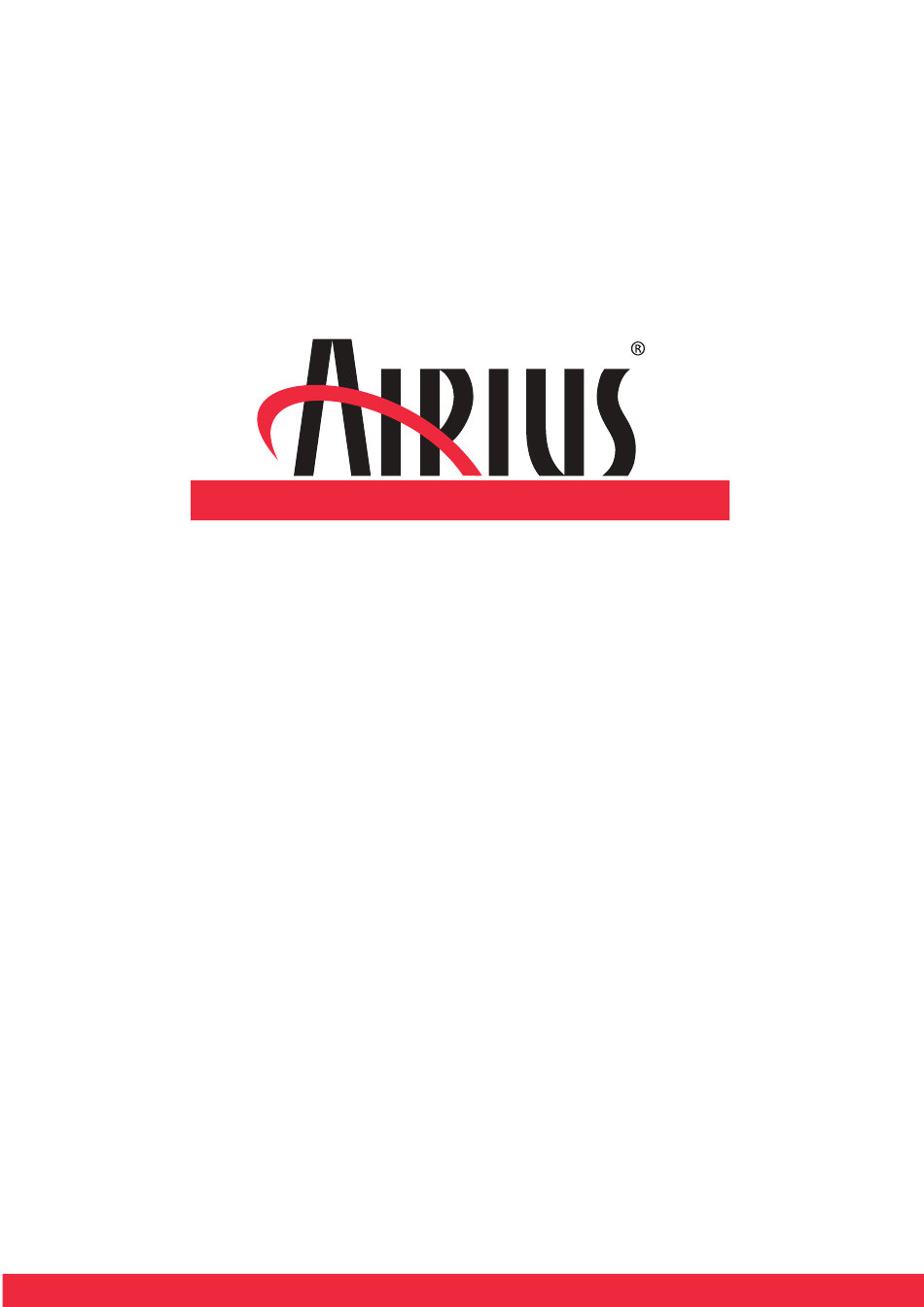

- Page 1 THE THERMAL EQUALIZER OPERATING AND INSTALLATION MANUAL FOR MODELS PEARL S1 & S2.
-
Page 2: Technical Information
RPM (Revolutions Per Minute) and the different RPM produce different rates of air flow to accommodate different heights from which the AIRIUS SYSTEM system will be installed in the ceiling. The heights are identified by the Model Number in Feet (10 feet = 3 Meters) -
Page 3: Warranty
(see exploded view - 1, next page). 2. WARRANTY 3 Year Warranty: Free replacement unit - new. Customer or Distributor to return defective units to Airius Oceania P/L carriage paid. Upon receipt, Airius Oceania P/Lwill despatch new units by return carriage paid. - Page 4 Voltage - 230 VAC / Weight - 3.75 kg / Height - 28 cms / Diameter - 28.6 cms Image not available online. The above graphic contains all the descriptions/components of the AIRIUS SYSTEM Note: ALL SCREW SIZES ARE ENGLISH THREAD with TORX ¤ HEADS ENGLISH SIZED HEX WRENCHS CAN BE SUBSTITUTED TO OPERATE SCREWS 4.
- Page 5 The AIRIUS SYSTEM uses very little AMPERAGE (less than 1 amp) thus multiple outlets may be installed on one circuit. Outlets are available in many configurations, check with the local Electrical Contractor to determine preferred type for the facility.
- Page 6 5. HANGING THE AIRIUS SYSTEM The AIRIUS SYSTEM is designed to be hung vertically as high in the ceiling of the facility as possible with the nozzle pointing to the floor for maximum thermal equalization.
- Page 7 Mezzanines - The AIRIUS SYSTEM can be hung at an angle to throw accumulated heat out to a larger space, or hang the AIRIUS SYSTEM near the mezzanine out in the larger space to remove heat and balance room temperature.
- Page 8 AIRIUS SYSTEM where it can get wet or be exposed to long-term moisture. Mounting the AIRIUS SYSTEM in a high sealed sky light is an excellent way of recovering heat. Indoor cranes and other ceiling mounted machinery DO NOT interfere with the function of these machines.
- Page 9 8. THE AIRIUS SYSTEM SAFETY INFORMATION AND WARNING! EACH AIRIUS SYSTEM HAS A POLARIZED/GROUNDED PLUG TO REDUCE THE RISK OF ELECTRICAL SHOCK (NOT FITTED ON UNITS SENT TO EUROPE/MIDDLE EAST - SEE WIRING INSTRUCTIONS). THIS PLUG CAN ONLY FIT INTO THE DESIGNED POLARIZED/GROUNDED OUTLET ONE WAY.
- Page 10 CAN BE MADE WITH A T-30 TORX DRIVER/WRENCH, OR A 5/32” HEX WRENCH MAY BE USED. OTHER TOOLS - T-20 (7/64 H) & T-25 (1/8 H) TORX. THE AIRIUS SYSTEM IS DESIGNED TO BE USED WITH ONLY THE ELECTRICAL VOLTAGE IDENTIFIED ON THE LABEL. THIS CAN BE LOCATED IN THE NOZZLE AND ON THE BOTTOM OF THE MOTOR, ANY OTHER VOLTAGE COULD DAMAGE THE MOTOR AND CREATE AN ELECTRICAL HAZARD.
- Page 11 AMMONIAS, ALCOHOLS, OR OTHER CHEMICALS, TO CLEAN ANY PART OF THE AIRIUS SYSTEM THE PERFORMANCE AND RESULTS OF THE AIRIUS SYSTEMS® SYSTEM ARE SUBJECT TO MANY VARIABLES SUCH AS, BUT NOT LIMITED TO, THE INTERIOR ENVIRONMENT, EXTERIOR ENVIRONMENT, CONDITION OF BUILDING STRUCTURE, HVAC SYSTEM PERFORMANCE AND/OR ELECTRICAL SERVICE AND THUS ACTUAL RESULTS MAY VERY.
