Manual

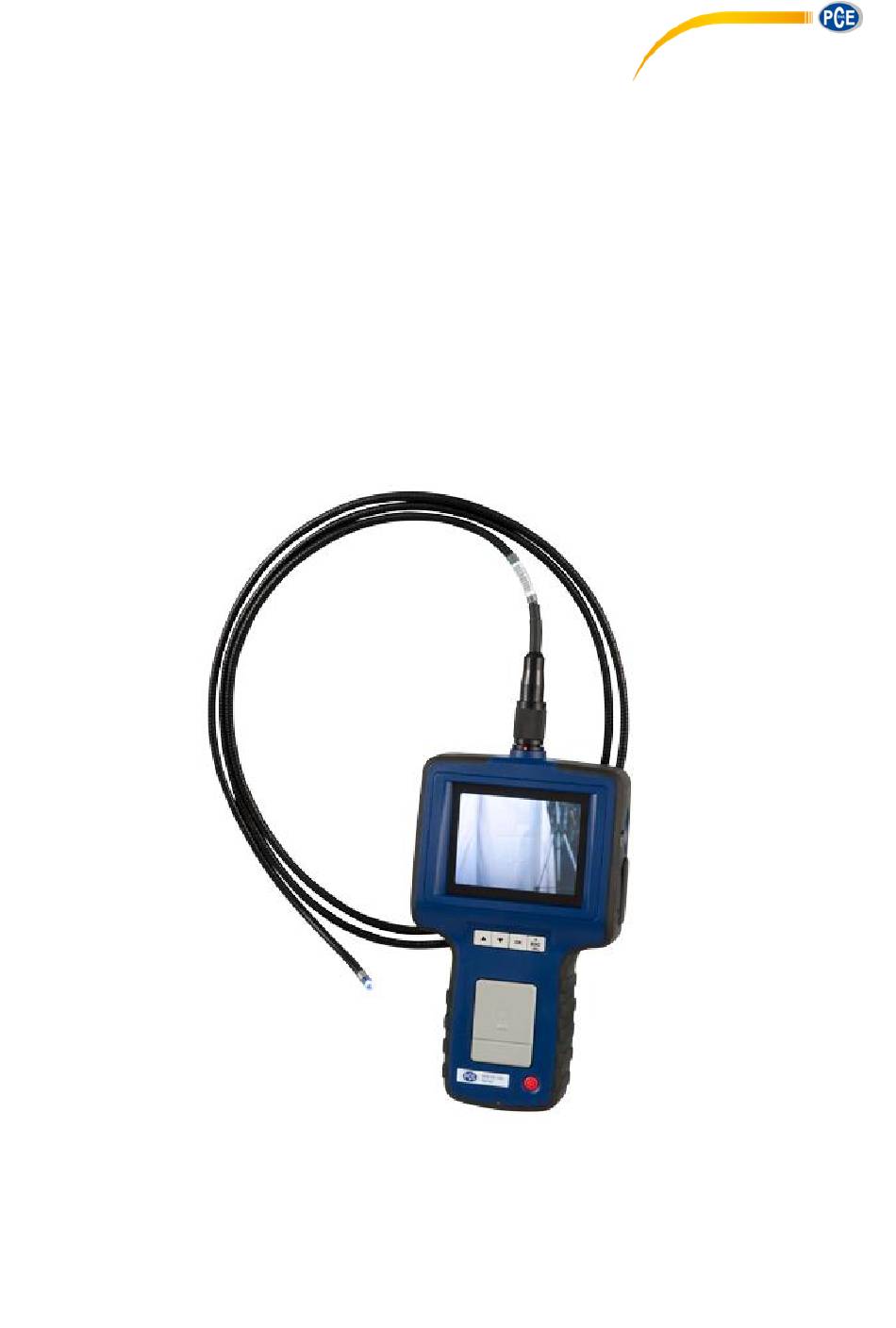

Video endoscope PCE-VE 3xxN Series
Version 2.1
Date of creation: 21.04.2016
Date of last change: 05.09.2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCE-IVE 320N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for PCE Instruments PCE-IVE 320N

  • Page 1 PCE Americas Inc. PCE Instruments UK Ltd. 711 Commerce Way Units 12/13 Suite 8 Southpoint Business Park Jupiter Ensign way FL-33458 Hampshire / Southampton United Kingdom, SO31 4RF From outside US: +1 From outside UK: +44 Tel: (561) 320-9162 Tel: (0) 2380 98703 0...
  • Page 2: Table Of Contents

    10 PCE-VE 390N ............................. 28 10.1 Safety instructions ........................... 28 10.2 Technical specifications ........................... 28 10.3 System description ..........................29 10.4 Getting started ............................29 11 Disposal ............................. 31 12 Contact ............................... 31 12.1 PCE Instruments UK ..........................31 12.2 PCE Americas ............................31...
  • Page 3: Safety Notes

    Please read this manual carefully and completely before you use the device for the first time. The device may only be used by qualified personnel and repaired by PCE Instruments personnel. There is no warranty of damages or injuries caused by non-observance of the manual.
  • Page 4: Specifications

    Manual Specifications Technical specifications General specifications Sensor CMOS Resolution videos / pictures 640 x 480 Frame rate 30 fps Lighting Automatic White balance Fixed Field of view 67 ° PCE-VE 380N / PCE-VE 390N: 150.8 ° 1.5 … 10 cm Depth of field PCE-VE 380N / PCE-VE 390N:10 …...
  • Page 5: Delivery Contents

    Manual Delivery contents 1 x endoscope PCE-VE 3xxN or HR (one of the models) 1 x 8 GB SD card 1 x USB cable 1 x mains adaptor 1 x carrying case (PCE-VE 390 N: + carrying belts) 1 x instruction manual System description Function keys ▲...
  • Page 6: Getting Started

    Manual Getting started Connect the camera cable to the display unit and screw it tightly. Make sure that the indication on the connector is on the upper side (see picture above). After that, press and hold the power button for approx. 5 seconds to turn on the device. Now the display shows the following: SD card capacity Battery status...
  • Page 7: Settings

    Manual Settings Press the OK button in standard viewing mode to enter the settings menu. Here you have the following options:  DELETE ALL FILES  AV OUTPUT  DATE / TIME  LANGUAGE  TV SYSTEM  AUTO POWER OFF Reset To set the device back to factory default settings, press the reset button on the back of the device.
  • Page 8: Camera Cable (Pce-Ve 3Xxhr Or Optional)

    Manual HR camera cable (PCE-VE 3xxHR or optional) Safety notes In addition to the general safety notes of the PCE-VE 3xxN device, please mind the following safety notes to prevent damage and injuries when using the HR camera cable.  To avoid dangerous situations, make sure that the probe does not get in touch with inflammable liquids or gases.
  • Page 9: Technical Specifications

    Manual  Do not crash the probe head.  Make sure that the camera does not get in contact with the following liquids: lead-free petrol, diesel oil, machine oil, brake fluid, transmission oil and water.  Do not screw the accessories on too tightly. Only screw it slightly until it is fixed.
  • Page 10: System Description

    Manual System description 1. Probe: to guide the camera 2. Camera head: for illumination and capturing 3. Assembly ring: to attach accessories 4. Protection ring: to protect the thread 5. Red cap: protects the camera when not in use 6. Boost key: for better illumination in dark environments 7.
  • Page 11: Getting Started

    Manual Getting started Connection Step 1: Connect the main unit with the connector and fix it with the screw mechanism. Step 2: Switch on the system. You should now see a picture in the display. Attachment of the accessories Mirror Step 1: Unscrew the thread protection ring.
  • Page 12: Operation

    Manual Magnetic hook Step 1: Turn the assembly ring down to the bottom. Step 2: Screw the magnetic hook on until it snaps in. Climbing ball Step 1: Remove the assembly ring. Step 2: Screw the climbing ball on until it snaps in. Operation Boost key Use this key in a dark environment.
  • Page 13 Manual Rotation key You can use this key to turn the image by 90 ° four times, for instance, when trying to read an inscription completely. Light key When using the mirror attachment, this key improves the vision which will not be impeded by particles, dust, etc.
  • Page 14: Articulating Camera Cable (Pce-Ve 350N / Hr / N3 / Hr3 Only Or Optional)

    Manual Articulating camera cable (PCE-VE 350N / HR / N3 / HR3 only or optional) Safety notes In addition to the general safety notes of the PCE-VE 3xxN device, please mind the following safety notes to prevent damage and injuries when using the pivoting camera head. ...
  • Page 15: System Description

    Manual System description Camera cable Camera head Gooseneck Operating unit Rotary switch for gooseneck Connecting cable Connector Locking lever Getting started Connect the connecting cable to the display unit of the endoscope and screw it tightly. Make sure that the indication on the connector is on the upper side.
  • Page 16: Operation

    Manual Operation 1. By using the rotary switch, you can pivot the camera head. Turn the switch in a clockwise motion to pivot the camera head to the right or in a counter-clockwise motion to pivot the camera head to the left.
  • Page 17: Camera Cable With 360° Articulating Camera Head (Pce-Ve 370Hr3 Or Optional)

    Manual HR camera cable with 360° articulating camera head (PCE-VE 370HR3 or optional) Safety notes In addition to the general safety notes of the PCE-VE 3xxN device, please mind the following safety notes to prevent damage and injuries when using the HR camera cable with 360° articulating camera head. ...
  • Page 18 Manual Mirror Step 1: Unscrew the thread protection ring. Step 2: Screw the assembly ring down to the bottom. Step 3: Screw the mirror attachment onto the thread until the thread is completely covered. Step 4: Align the lateral LED opening of the mirror attachment in a way that the LEDs are uncovered. Step 5: Turn the assembly ring upwards in order to fix the mirror attachment.
  • Page 19: Operation

    Manual Operation Hold the device with one hand and use your thumb for operating the joystick and the function keys. With your index finger, you can use the boost key. Use the joystick to adjust the swivelling angle and direction of the camera head. Boost key Use this key in dark environments to lighten up the image.
  • Page 20 Manual Rotation key Use this key to rotate the image by 90 °, for instance, when trying to read an inscription completely. Light key Use this key in combination with the mirror attachment to improve the vision which will not be impeded by particles, dust, etc.
  • Page 21: Pce-Ve 380N

    Manual PCE-VE 380N Safety notes In addition to the general safety notes of the PCE-VE 3xxN device, please mind the following safety notes to prevent damage and injuries when using the camera cable and the accessories of the PCE-VE 380N. ...
  • Page 22: System Description

    Manual System description PCE-VE 380N Connection to display unit Support for display unit Handle Camera head Support for camera head Cable measuring device No function Cable measuring device ON/OFF/RESET button m/ft button Display backlight button Battery compartment...
  • Page 23: Getting Started

    Manual Camera cable Camera head Semi-flexible camera cable Connection Camera cable Mounting ring Getting started Battery replacement Transmitting unit The battery compartment of the transmitting unit is located at the back of the unit. To open it, you have to loosen a screw first.
  • Page 24 Manual Cable measuring device The battery compartment of the cable measuring device is located at the front, right below the function keys. To open it, you have to loosen a screw first. After that, you can open the battery compartment and replace the batteries.
  • Page 25: Operation

    Manual The PCE-VE 380N can also be used in horizontal position. Operation Pulling out the cable 1. Before pulling out the camera cable, loosen the cable drum fixing first. 2. Pull out the camera cable horizontally. Do not pull it out in an angle larger than 45° to the camera head support.
  • Page 26 Manual 3. Once you have reached the desired cable length, fix the cable drum to prevent it from rolling out any further. Coiling up the cable 1. Hold the camera head horizontally and carefully coil up the cable. 2. When the camera cable is coiled up completely, place the camera head in the camera head support.
  • Page 27 Manual Cable measuring device To turn on the device, press and hold the OF/OFF button for 3 seconds. You can reset/restart the device at any time by pressing and holding the ON/OFF button for 1 second. To switch the measuring unit between m and ft, press the “m/ft” button. Press the backlight button to activate the display backlight.
  • Page 28: Pce-Ve 390N

    Manual Cleaning 1. Remove the display unit from the support. 2. Put the protecting hood on the connector of the camera cable. 3. Wash the cable drum with water and let it dry for a few minutes. 4. If necessary, dry the cable drum with a dry cloth before putting it back into the carrying case. 10 PCE-VE 390N 10.1 Safety instructions ...
  • Page 29: System Description

    Manual 10.3 System description Carrying system 1. Neck strap 2. Carrying system 3. Hip belt 10.4 Getting started Inserting the display unit Insert the display unit into the carrying system as seen in the picture above. Use the connecting cable to connect the display unit to the camera tube, Roll up the camera tube on the carrying system.
  • Page 30 Manual Attaching and wearing the carrying straps Step 1 / 2:  Attach the neck strap to one of the upper supports, put it around your neck and attach the other end to the other upper support of the carrying system. ...
  • Page 31: Disposal

    In order to comply with the EU directive 2012/19/EU we take our devices back. We either re-use them or give them to a recycling company which disposes of the devices in line with law. If you have any questions, please contact PCE Instruments. 12 Contact If you have any questions about our range of products or measuring instruments please contact PCE Instruments.
