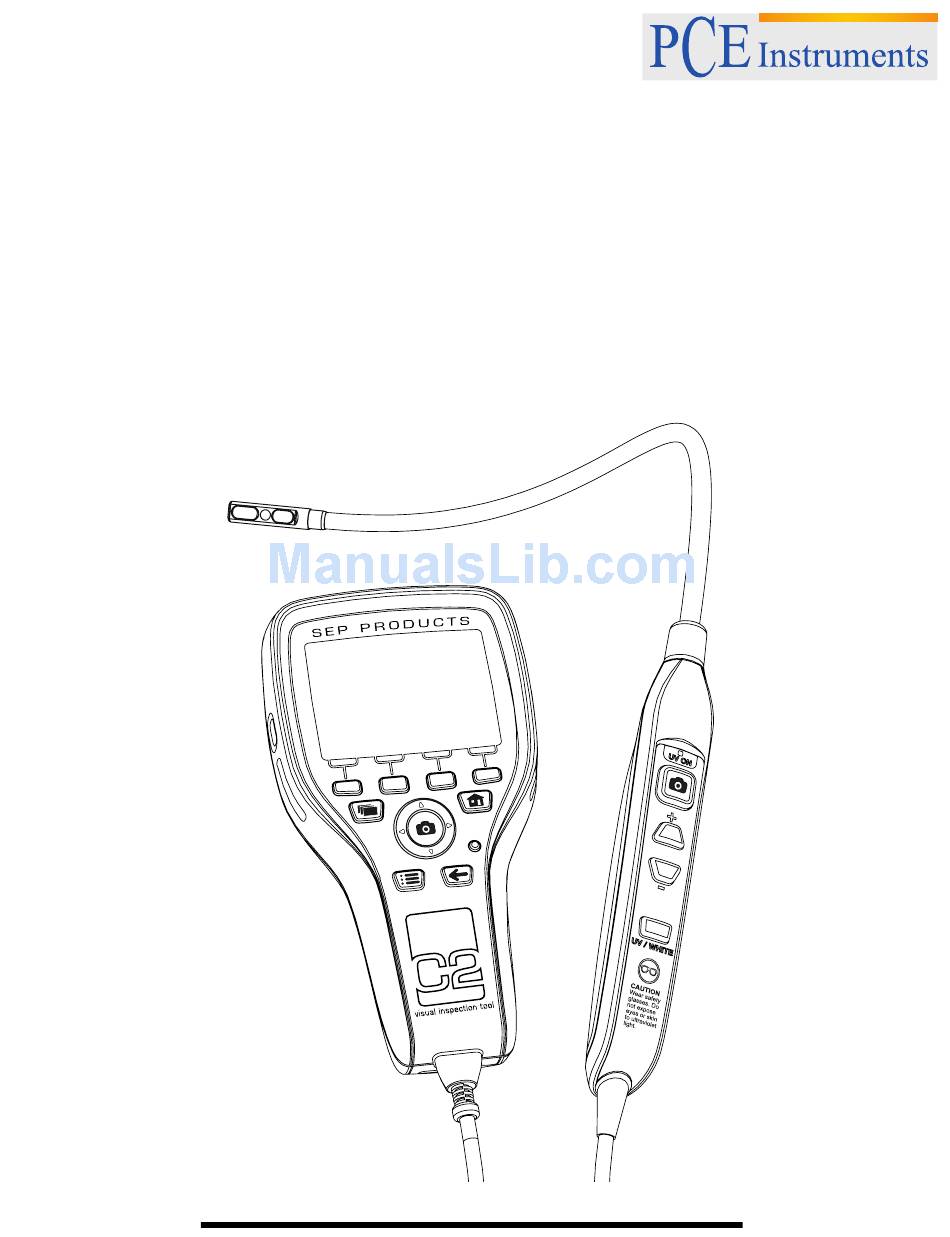

- Page 1 PCE Deutschland GmbH Im Langel 4 D-59872 Meschede Deutschland Tel: 02903 976 99 0 Fax: 02903 976 99 29 info@pce-instruments.com www.pce-instruments.com/deutsch Inspektionskamera C2 Camera UV-LED Visual Inspection Tool Operator’s Manual...
- Page 2 Description The C2 Camera displays live color video to a LCD screen from an imaging sensor and lighting source connected to a flexible cable. It can be used to look into confined or concealed areas. The C2 Camera and its intellectual properties are covered under United States Patent No.
- Page 3 Keep the work area clean and well lit. • • Do not operate the C2 Camera in explosive atmospheres, or in the presence of flammable liquids, gases, or heavy dust. Electrical tools can create sparks which may ignite the dust or fumes.
- Page 4 The Video Display and Controller Unit 10. Low Battery indicator 11. 3.5” Video Screen 1. Shock-Resistant 320 x 240 pixels Body TFT LCD, 24 bit RGB 2. Power Button 12. SD Card Slot 3. Mini USB Port 13. Menu Buttons 4.
- Page 5 The Camera Wand and Controller Imager Head Camera and Lights 21” Flexible Camera Lens 2 White and 4 camera cable 640 x 480, 24 bit UV LED lights RGB wide-angle lens with auto-focus & depth of field - 2cm to Infinity 21.
- Page 6 Feature Instructions - Numbers refer to diagrams on pages 3 and 4. 1. Shock Resistant Body. Formed for durability and easy gripping. 2. Power Button. Push in to turn on and off. 3. Mini USB Port. For downloading image files to your computer via USB cable. 4.
-
Page 7: Operating Instructions
24. Toggle Switch. Press to switch between using UV and white lights. Operating Instructions Numbers refer to diagrams of the C2 Camera. 1. Insert SD card into the Video Display Unit (VDU), (12). 2. Plug 6-Pin Data Cord (9) from wand into VDU at heel of handle. - Page 8 Camera Safety • Do not submerse any portion of the C2 Camera into any liquid. • Do not insert the C2 Camera wand into anything or anywhere that may contain a live electrical charge. • WALLS: Shut off the circuit breaker to the whole house before using the C2 Camera to inspect inside walls that may contain live electrical circuitry.
- Page 9 Please follow all applicable regulations. Camera Use and Care • Do not operate the C2 Camera unless this Operators Manual has been read and understood completely. • Do not immerse the video display unit in water. Store in a dry place.
- Page 10 Maintenance Instructions Remove the battery from the unit before performing maintenance. The C2 Camera has been designed to require little maintenance. In order to maintain its performance, always follow these guidelines: 1. Handle the device with care. It is not shock-proof and should not be banged or dropped.
- Page 11 C2 Camera repair facility. This warranty and your remedies thereunder are solely as stated in this manual. In no event shall C2 Camera be liable for special, indirect, inci- dental or consequential damages, nor for any damages arising out of delay in shipment or production.
- Page 12 Warranty Information Registration is required for warranty validation and service. Register online at C2Camera.com. You may also mail the folowing information to: Sound Environmental Products, PO Box 23, Puyallup, WA 98371. Your company: _______________________________________________ Your contact information: _______________________________________ Date of purchase: _____________________________________________ Serial Number: _______________________________________________ Model Number: _______________________________________________ Store where purchased: ________________________________________...
