- Page 1 User Manual Industrial Borescope PCE-VE 270 Series User manuals in various languages (français, italiano, español, português, nederlands, türk, polski, русский, 中文) can be found by using our product search on: www.pce-instruments.com Last change: 5 January 2021 v1.0 © PCE Instruments...
-
Page 2: Table Of Contents
On / off ..........................4 Settings ..........................4 Image settings ........................6 Image / video ........................7 Camera setting ......................... 7 Outputs ....................8 USB ..........................8 HDMI ..........................8 Troubleshooting ..................8 Warranty ....................9 Disposal ....................9 © PCE Instruments... -
Page 3: Safety Notes
We expressly point to our general guarantee terms which can be found in our general terms of business. If you have any questions please contact PCE Instruments. The contact details can be found at the end of this manual. © PCE Instruments... -
Page 4: Specifications
400 x 400 px 400 x 400 px 400 x 400 px resolution HLC / BLC Protection class IP 67 IP 67 IP 67 -10 … 50 °C -10 … 50 °C -10 … 50 °C Temperature range © PCE Instruments... -
Page 5: Delivery Scope

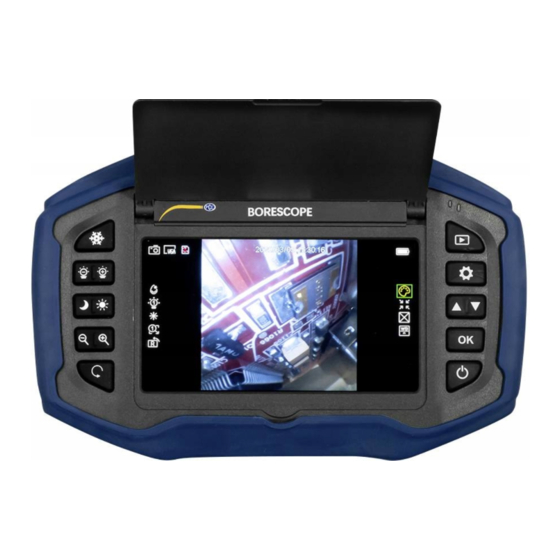

On / Off Freeze display ② ⑦ Camera LED brightness ③ ⑧ Up / Down Highlight compensation / backlight compensation ④ ⑨ Settings Zoom ⑤ ⑩ Open memory Mirror / rotate image ⑪ ⑫ Toggle image Toggle video © PCE Instruments... -
Page 6: Preparation
Use the arrow keys ③ to select the option "Language". Confirm the selection with the ② "OK" key. Use the arrow keys ③ to select the desired language. Confirm the selection with the ② "OK" key. Press the key ④ "Settings" to exit setup mode. © PCE Instruments... - Page 7 Confirm the selection with the ② "OK" key. Use the arrow keys ③ to select "Yes" (format SD card) or "No" (do not format). Confirm the selection with the "OK" key ②. Press the key ④ "Settings" to exit setup mode. © PCE Instruments...
-
Page 8: Image Settings
With the "OK" key ② you can switch between the modes without or with grid in 3 grid sizes (2 x 4, 8 x 4, 16 x 8). The grid setting is not adopted for image and video recordings. © PCE Instruments... -
Page 9: Image / Video
The LEDs on the camera can be adjusted to the lighting conditions in 5 brightness levels with the ⑦ "Brightness" key. 5.5.3 Highlight compensation / backlight compensation The highlight compensation / backlight compensation can be adjusted to the conditions with the key ⑧ "Backlight compensation / background light suppression". © PCE Instruments... -
Page 10: Outputs
SD card is not or incorrectly Format or replace SD card format the SD card". formatted or not compatible Instrument crashes Disturbed video signal Reset: press and hold the On / Off key for 8 seconds, then switch the unit back on. © PCE Instruments... -
Page 11: Warranty
For countries outside the EU, batteries and devices should be disposed of in accordance with your local waste regulations. If you have any questions, please contact PCE Instruments. © PCE Instruments... - Page 12 PCE Instruments contact information Germany France Spain PCE Deutschland GmbH PCE Instruments France EURL PCE Ibérica S.L. Im Langel 4 23, rue de Strasbourg Calle Mayor, 53 D-59872 Meschede 67250 Soultz-Sous-Forets 02500 Tobarra (Albacete) Deutschland France España Tel.: +49 (0) 2903 976 99 0 Téléphone: +33 (0) 972 3537 17...
