Panasonic NETWORK TELECOM KX-DT546 Reference Manual

PANASONIC REFERENCE GUIDE – NETWORK TELECOM

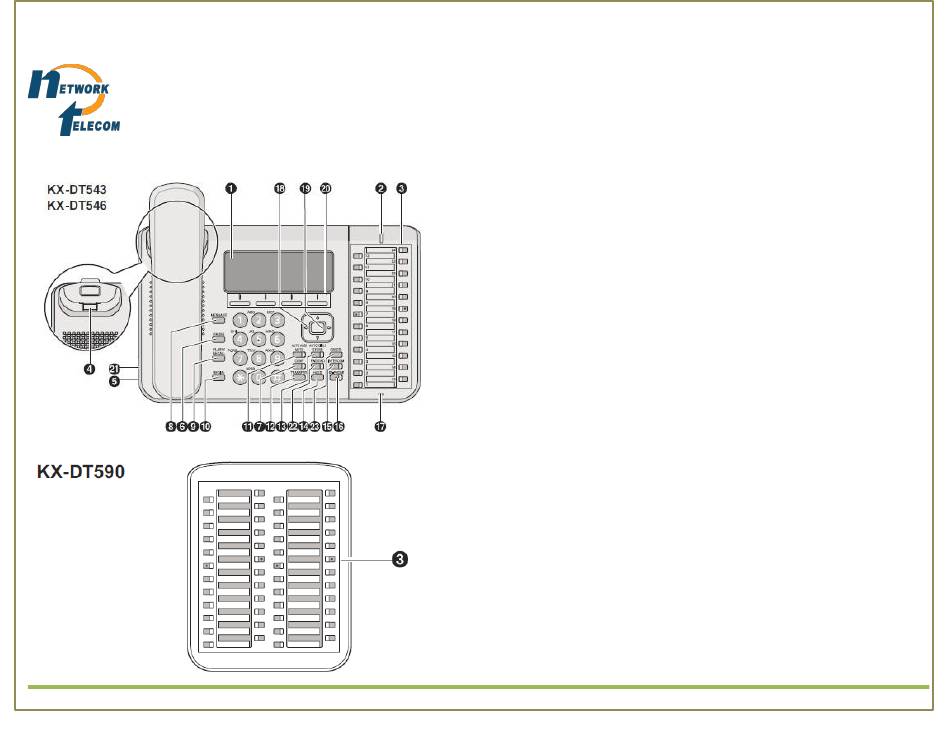

1. LCD SCREEN
2. MESSAGE LAMP: When you have a message it will light up the lamp red
3. FLEXIBLE CO BUTTONS: Used to access a line or perform a programmed function
4. HANDSET HOOK: Keeps the handset stable when the phone is mounted on the wall
5. HEADSET JACK: Jack to plug in a headset
6. PAUSE: Used to insert a pause when storing a number
7. CONF: Used to establish a multiple party conversation
8. MESSAGE: Used to leave a message waiting indication or call back the party who left the
message waiting indication
9. FLASH/RECALL: Used to disconnect the current call and make another call immediately
10. REDIAL: Used to redial the last dialed number
11. AUTO ANS / MUTE: Used to receive an incoming call in hands-free mode or mute
12. TRANSFER: Used to transfer a call to another party
13. AUTO DIAL/STORE: Used for System/Personal Speed Dialing or program changes
14. HOLD: Used to place a call on hold
15. INTERCOM: Used to make or receive intercom calls
16. SP-PHONE (Speakerphone): Used for performing hands-free operations
17. MICROPHONE: Used for hands-free conversations
18. NAVIGATOR KEY: Used to adjust the volume or display contrast or select desired items
19. ENTER: Used to assign the selected item
20. SOFT BUTTONS: S1-S4 are used to select the item displayed on the bottom line of the display
21. EHS (Electronic Hook Switch) JACK:
22. FWD/DND: Used to switch Call Forwarding or Do Not Disturb on your extension
23. CANCEL: Used to cancel the selected item
Page 1
NETWORK TELECOM – Panasonic KX-DT543/546/590 Telephone
