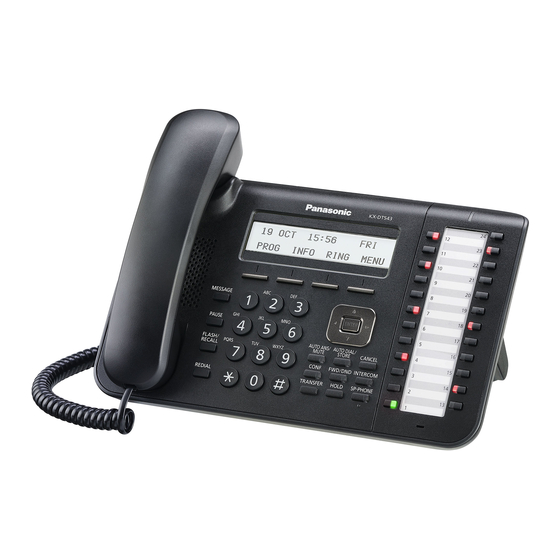

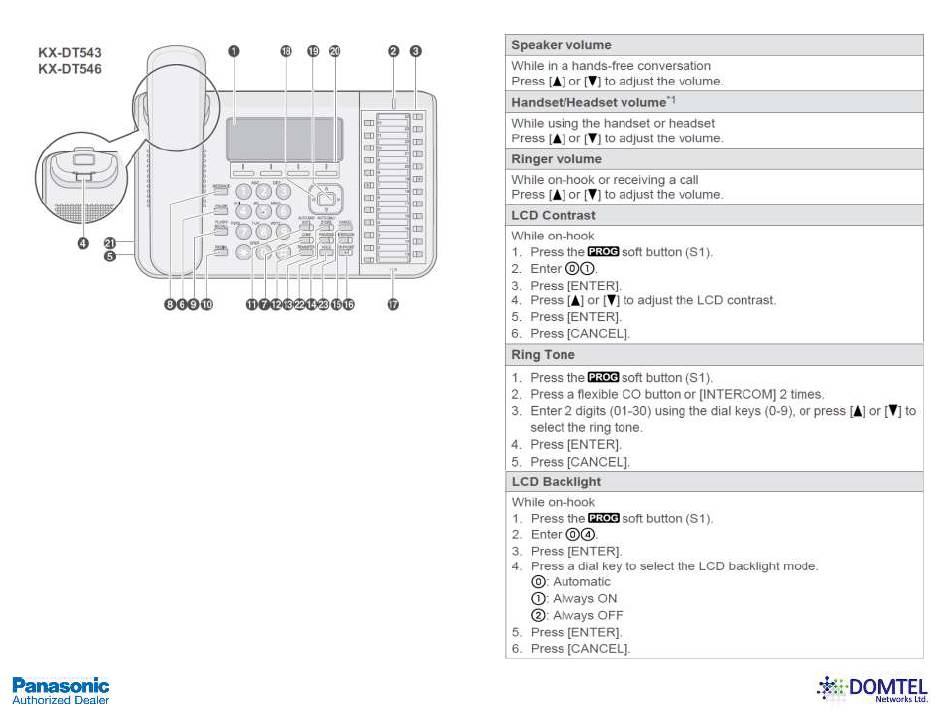

PANASONIC KX-DT543 / DT346 - QUICK REFERENCE CARD
1
Display
2
Lamp –Green Flash: Internal Call; Red Flash: External Call; Solid Red: Message Waiting.
3
Flexible Buttons –Used for features; status and direct selection of extension or voice
mailbox; call at Incoming Call Distribution group; or to seize an outside line.
4
Headset Hook - Flip if phone is wall mounted.
5
Headset Jack
6
PAUSE – Used to insert pause in stored telephone number.
7
CONF (Conference) – Used for multi-party call
8
MESSAGE – Leave message waiting or call back an extension.
9
FLASH/RECALL – Used to hold the current call make another call.
10 REDIAL – Redial the last dialed number
11 AUTO ANS/MUTE – To set auto-answer in hands-free mode; or mute microphone.
12 TRANSFER – To transfer a call to another party.
13 AUTO DIAL/STORE – To program System and Personal Speed-Dial numbers.
14 HOLD – Places a call on hold
15 INTERCOM – Used to make or receive intercom calls
16 SP-PHONE – For hands-free, speakerphone, operation.
17 Microphone – Used for hands-free, speakerphone operation.
18 Navigator Key –Adjust the volume, display contrast, or select items from menus.
19 ENTER – Used to assign the selected item.
20 Soft-Buttons – Dynamic function keys, used to display options.
21 EHS (Electronic Hook Switch) Jack – Connects to select wireless headsets.
22 FWD/DND - Switch Call Forwarding (Solid Light) or Do Not Disturb (Slow Flash) status.
23 CANCEL – Used to cancel or exit operation.
BEFORE USING THE TELEPHONE SET
OTTAWA: 613-228-2888 | KITCHENER: 519-584-0795
www.domtel.com/panasoniclibrary
March 2015
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Panasonic KX-DT543
Summary of Contents for Panasonic KX-DT543
- Page 1 March 2015 BEFORE USING THE TELEPHONE SET PANASONIC KX-DT543 / DT346 - QUICK REFERENCE CARD Display Lamp –Green Flash: Internal Call; Red Flash: External Call; Solid Red: Message Waiting. Flexible Buttons –Used for features; status and direct selection of extension or voice mailbox;...
- Page 2 Message Waiting Lamp Device Status For other menu options please refer to Consultative Transfer Call Transfer Assign Telephone Numbers Panasonic TVM User Manual. Other Features Abort Transfer Hang Up Some features are administrator enabled. Revert to Caller CALL FORWARDING & DO-NOT-DISTURB (FWD/DND)
