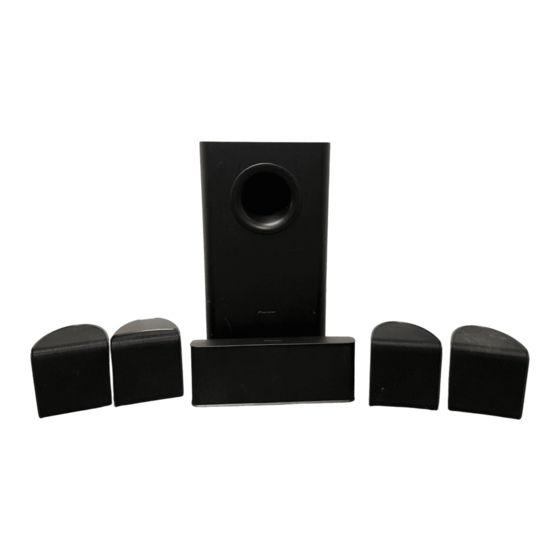

- Page 1 HTP-072 Home Cinema Package S-22W-P Subwoofer S-11A-P Speaker System Discover the benefits of registering your product online at http://www.pioneer.co.uk (or http://www.pioneer.eu). Operating Instructions...
- Page 2 After you have finished reading the instructions, put them away in a safe place for future reference. These operating instructions have has been written for joint use with the S-22W-P and S-11A-P models. Please consult those portions of the manual indicated for your model.
-
Page 3: Table Of Contents
5.1 channel surround sound. Troubleshooting ......... 9 Features S-22W-P • Compact Design and Deep Bass Sound • Phase Control Technology S-11A-P • Round shape enclosure • Phase Control Technology 1 Front left speaker 2 Center speaker Accessory Items... - Page 4 Satellite speakers (S-11A-P) Installation precautions • Labels located on the rear of each speaker • Do not place heavy or large objects on top indicate whether they are designed for front of the speaker. Doing so could provoke the or surround use.
- Page 5 • When the subwoofer is combined with amplifier may result in malfunction or fire. satellite speakers in a total system, the • The S-11A-P incorporates autoregression sound characteristics produced are like technology to protect the speakers. If the those shown in the accompanying graph,...
-
Page 6: Connections And Use
Connections and Use • These speaker terminals carry HAZARDOUS LIVE voltage. To prevent the Connection risk of electric shock when connecting or disconnecting the speaker cords, Before making or changing the disconnect the power cord before touching connections, switch off the power and any uninsulated parts. - Page 7 Wall-mounting the front and surround speaker system (S-11A-P) Attaching the brackets • When attaching the speakers to brackets, always use the furnished brackets for wall mounting. • Make sure to tighten the supplied screw as securely as possible when attaching the bracket to the back of the speaker.
-
Page 8: Specifications
Speaker ..........................16 cm cone type Nominal impedance ...........................6 Outline Dimension............... 230 mm (W) x 418 mm (H) x 358 mm (D) Weight (without package) ........................5.1 kg S-11A-P Front speakers / Surround speakers Enclosure Front speakers ....................Closed-box bookshelf type Surround speakers .................. -
Page 9: Troubleshooting
