Europa 16-DIW features
• Indirect - direct light
distribution.
• T5 , Twin tube and T8
lamping options.
• Three distinct light
distributions - direct, indirect
and indirect/direct.
• Die formed steel perforated
housings.
• Nominal 3' & 4' long
illuminated sections.
• Optional slotted perforated
pattern.
• Precision die cast end caps.
• 1" Articulated joiners
between sections.
Europa 16-IW features
• Semi - indirect light
distribution
• T5 and T8 lamping options.
16-IW
742
COOPER LIGHTING
16DIW

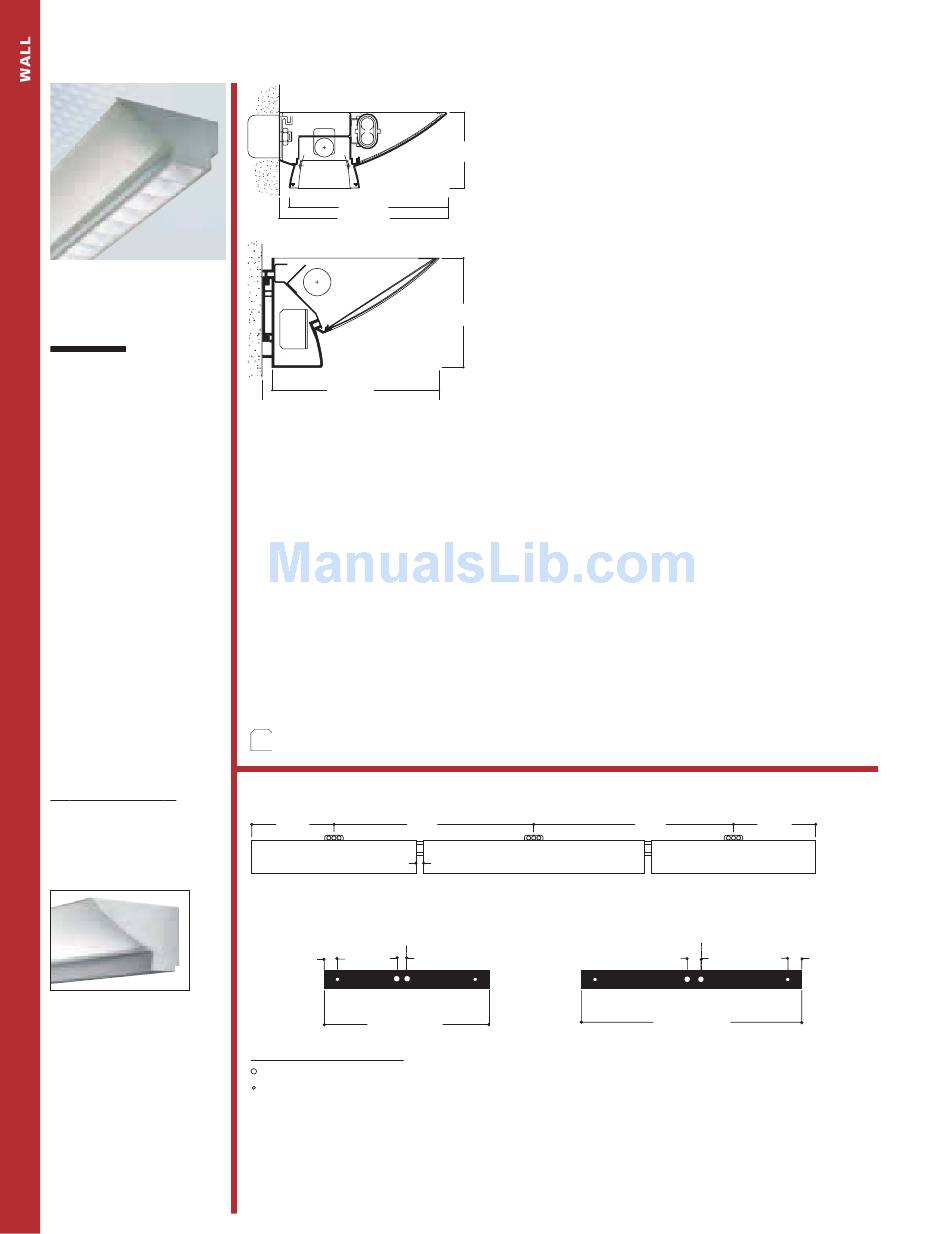

7-11/16" [195mm]
8-3/16" [208mm]
16IW
S
6-1/8" 156mm]
Construction
Extruded aluminum housing, 20-gauge steel front
shield with staggered rounded hole pattern backed
by white acrylic diffuser. Nominal 3' or 4'
illuminated sections.
End Caps
Die-cast aluminum.
Electrical
120, 277, 347 or Universal Voltage electronic ballast.
Fixtures and electrical components certified to UL
and CUL standards.
Finish
Durable, low gloss, white, powder coated acrylic
finish.
Mounting
Wall mounted.
S
= Slim Line Ballast only.
M O U N T I N G I N F O R M AT I O N
18-3/16" 42-3/8"
3FT BOR
M O U N T I N G H O L E PAT T E R N
C L
1-1/4" [32mm]
5-5/16" [135mm]
3ft. Row
36-5/8" [930mm]
MOUNTING HOLE LEGEND
7/8" DIAMETER K.O.
3/8" DIAMETER MOUNTING HOLES
NOTES: For complete product data, refer to the Neo-Ray Specification Binder. Specifications and dimensions subject to change without notice. Products may be
modified for use in international markets. Please contact your Cooper Lighting Sales Representative for availability and ordering information.
ORDERING INFORMATION:
Sample number: 16IW-1T5-56-2EB-SI-RP
