OWNER'S MANUAL

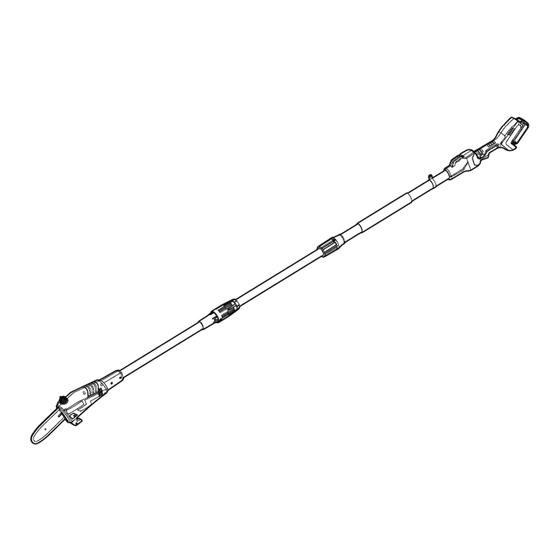

8-Inch 20V Lithium-ion Pole Saw
With (1) 20V 2.0Ah Lithium-ion Battery
Copyrights. All Rights Reserved.
Model LPS40820-1
BATTERY MUST BE CHARGED BEFORE
FIRST USE. TWO TO THREE INITIAL
CHARGING/DISCHARGING CYCLES MAY
BE REQUIRED TO ACHIEVE MAXIMUM
RUN TIME/CAPACITY.
Your pole saw has been engineered and manufactured to our high standard for dependability, ease of operation, and
operator safety. Properly cared for, it will give you years of rugged, trouble-free performance.
WARNING: To reduce the risk of injury, the user must read and understand the owner's manual before
using this product.
DO NOT RETURN THIS PRODUCT TO THE STORE. OPERATING, ASSEMBLY, PART,
SERVICE QUESTIONS? GO TO AMERICANLAWNMOWER.COM OR CALL
1-800-633-1501 BETWEEN 8:00AM-5:00PM EST FOR ASSISTANCE.
ADD OIL TO OIL RESERVOIR BEFORE FIRST USE
Thank you for your purchase.
SAVE THIS MANUAL FOR FUTURE REFERENCE
CA Compliant
Charger Included
(Model No.
CHL82000-1)
Advertisement
Table of Contents
Related Manuals for Yardworks LPS40820-1
Summary of Contents for Yardworks LPS40820-1
- Page 1 OWNER’S MANUAL 8-Inch 20V Lithium-ion Pole Saw With (1) 20V 2.0Ah Lithium-ion Battery Copyrights. All Rights Reserved. Model LPS40820-1 BATTERY MUST BE CHARGED BEFORE FIRST USE. TWO TO THREE INITIAL CHARGING/DISCHARGING CYCLES MAY BE REQUIRED TO ACHIEVE MAXIMUM RUN TIME/CAPACITY.
-
Page 2: Important Safety Warnings
(GFCI) protected supply. Use of a GFCI reduces the • risk of electric shock. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. LPS40820-1... -
Page 3: General Safety
WARNING: To protect yourself from electrocution maintain a min of 50ft (15m) from overhead electrical likes. DO NOT FORCE POLE SAW—It will do the job better and with less likelihood of a risk of injury at the rate for which it was designed. LPS40820-1... - Page 4 Any part that is damaged should be properly repaired or replaced. Call our customer service help line at 1-800-633-1501 for assistance. Always wear ear plugs or mufflers to protect your hearing. Regular users should have hearing checked regularly as chain saw noise can damage hearing. LPS40820-1...
-
Page 5: Packing List
FEATURES PRODUCT SPECIFICATIONS LPS40820-1 Input ……………………………………………………. 20 V/2.0Ah, DC only Bar Length …………………………………………….. 8” Bar (M1430833-1041TL) Weight ………………………………………………….. 8.6 lbs. Total Extended Length ……………………………….. 9 ft. 4 in. Oil capacity………………………………………………..75 ml Battery Pack Lock-off Button Trigger Switch Rear Handle Locking Collar... -
Page 6: Attaching The Shoulder Strap
WARNING: Before performing any maintenance, make sure NOTE: When replacing the guide bar and chain, use only the battery pack has been removed, failure to heed this identical replacement parts. warning could result in serious personal injury. LPS40820-1... - Page 7 NOTE: Do not over-tension the chain as this will lead to excessive wear and will reduce the life of the bar and chain. Overtensioning also reduces the amount of cuts you will get per battery charge. LPS40820-1...
- Page 8 To reduce the risk of electrocution, never use near any electrical manual. power lines. Contact with or use near power lines may cause serious Keep hands away from chain. injury or electric shock resulting in death. Keep hands on handles. Don’t overreach. LPS40820-1...
- Page 9 If you force the cut, damage to the bar, chain, or first cut (from the underside of the limb) increases. motor can result. Remove long branched in several stages. LPS40820-1...
-
Page 10: Chain Maintenance
WARNING: Improper chain sharpening increases the potential of kickback. WARNING: Failure to replace or repair damaged chain can cause serious injury. WARNING: The saw chain is very sharp, always wear protective gloves when performing maintenance to the chain. LPS40820-1... -
Page 11: Charging The Battery Pack
CHARGING THE BATTERY PACK Charge the battery pack only with Yardworks 20V Chargers When fully charged, the battery can be safety stored in temperatures down to –4° degrees F for a period of up to four weeks, before Allow at least 80 minutes of charge time before initial use of the requiring charging. -
Page 12: Maintenance
- Replace damaged bar and chain with identical replacement parts. CALL US FIRST !! Call us first with questions about operating or maintaining your pole saw at 1.800.618.7474 between 8:00 a.m. – 5:00 p.m. Eastern Standard Time, or get assistance on AMERICANLAWNMOWER.COM. LPS40820-1... -
Page 13: Parts And Service
20V Charger LCS20-BCK-1 10”/8” Bar Assembly Kit CALL US FIRST !! Call us first with questions about operating or maintaining your pole saw at 1.800.618.7474 between 8:00 a.m. – 5:00 p.m. Eastern Standard Time, or get assistance on AMERICANLAWNMOWER.COM . LPS40820-1... - Page 14 LPS40820-1 YARDWORKS WARRANTY POLICY • 2 Year limited warranty on all Yardworks 20V lithium ion power tools from date of purchase when used for per- sonal, household, or family use. • 2 Year limited warranty on all Yardworks 20V lithium ion batteries and chargers from date of purchase when used for personal, household, or family use.
