Randell 51395PO Specifications

RanSpec Remote Recessed Coldwall Refrigerator
model 53333PO
53360PO
533102PO 533114PO
Description:
Remote refrigerator storage units with mechanically cooled
pan opening. These units are offered in variety of lengths to
meet your specific base storage or pan storage requirements.
The mechanically cooled pan opening uses Randell's exclusive
design technologies, such as our Exclusive Refrigerated Pan
Opening Thermostat allowing customers to make adjustments to
the opening temperatures (independent of the base).
Specifications:
CABINET EXTERIOR: Top to be one piece of die-formed 16 gauge
stainless steel with 2 1/2" nosing. Backsplash to be coved
cornered, with 45˚ return at top and overall height of 6 3/4".
Ends at top fitted with recessed heavy duty steel bars for field
bolting units together, producing a hairline seam. Exterior body to
be corrosion resistant steel. Door opening frames are ABS and
contain magnetic strip for positive seal of door gaskets. Work
surface to be at 36" work height. Legs to be 6" high stainless
steel with adjustable bullet foot. Legs mounted to full length
channel frame assembly which is integrally welded to bottom
of body assembly. Legs can be moved left to right to avoid floor
obstacles during installation.
CABINET INTERIOR: Base interior to be ABS thermoplastic at ends
only. Stainless steel interior liner to be coved cornered to form
bottom, back and top. Unit insulation to be CFC free foamed in
place urethane.
DOORS: Door fronts to be 22-gauge stainless steel exterior front
with 16 gauge stainless steel door pulls/handles. The interior
liner is vacuumed formed ABS with integral gasket retainer for
easy cleaning and accepts Randell's Exclusive Press Fit Gasket
System. Doors are mounted on concealed hinges.
REFRIGERATION: Refrigerant to be specified by customer
(Specification based on R-404a refrigerant). System is a
balanced heavy duty system set-up to accept hook-up to a
single compressor system. The base is cooled by an independent
blower coiled operating on its own expansion valve and
thermostat and operates through a dedicated solenoid valve.
The pan opening is provided with its own thermostat (located in
the compressor housing) making it easily adjustable for specific
ambient conditions without effecting the balance of the system.
An on/off switch for the pan opening is provided. Optional
electric condensate evaporator.
1055 Mendell Davis Drive, Jackson, MS 39272
888-994-7636, unifiedbrands.net
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.
53336PO 53339PO
53369PO 53372PO
models 53000PO
53348PO 53351PO
53375PO 53378PO

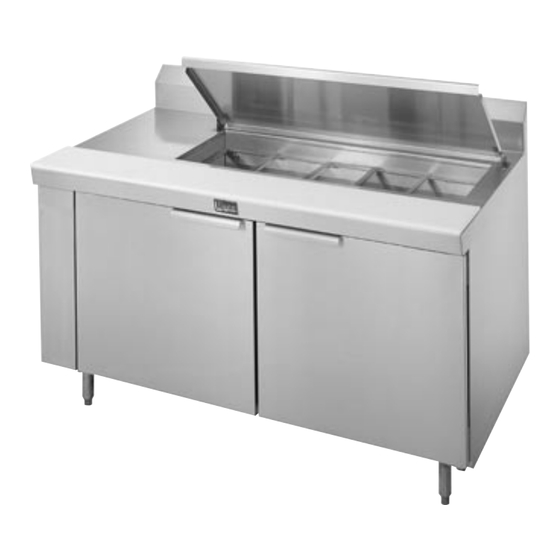

model 53354PO shown with
optional finished end
Standard Features:
• Low profile 2" recess pan design provides easy reach and optimal
pan temperatures & reliability
• Full Length Poly Cutting Board
• Front breathing compressor housing with directed air flow-
Randell Exclusive
• Easy maintenance Press-Fit gaskets- A Randell Exclusive
• Pan opening thermostat- A Randell Exclusive
• Drain in pan opening for easy cleaning
• Hinged Removable stainless steel covers
• Foamed in place urethane insulation providing superior insulation
and durability
• 6" high adjustable legs, moveable left to right if needed
• Available up to 16' under one common assembly
• Adapter bars are standard to accommodate a compliment of
1/6 size pans
Options & Accessories:
Hinged slide-back covers
Lift-off (removable) night covers
Stainless Steel Ends
Stainless Steel Back
Laminate fronts, ends and back options
Casters in lieu of legs
Export voltages
Over-shelving storage options
Wide pan opening
53354PO 53357PO
53381PO 53387PO
33°F to 40°F 33°F to 41°F
Randell RanSpec, Page 20a
PP SPEC0135 Rev. A
Revised 07/07
18°F to 22°F
