Randell RanSpec 51338 Specifications

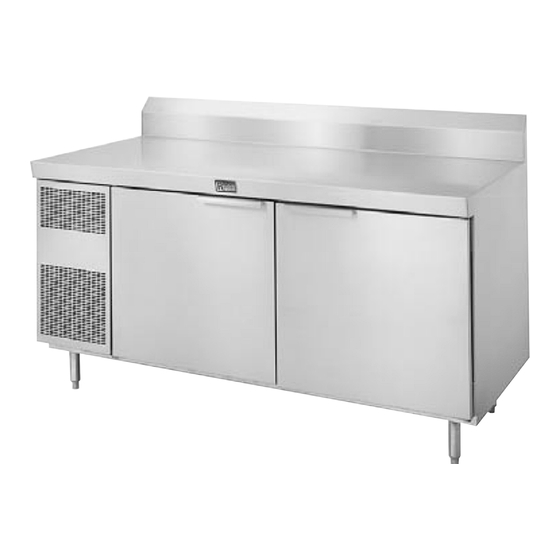

RanSpec SC Worktop Refrigerator
model 51338
51365
51395
Description:
Self-contained refrigerated worktop unit with 16 gauge
reinforced stainless steel top, and integral backsplash with
45˚ return. Stainless steel doors on concealed hinges. CFC
free, R-134a refrigeration system. Evaporator blower coil with
expansion valve supplied and installed. 6" high adjustable and
movable legs.
Specifications:
CABINET EXTERIOR: Top to be one piece of die-formed 16 gauge
stainless steel with 2 1/2" nosing. Backsplash to be coved
cornered, with 45˚ return at top and overall height of 6 3/4".
Ends at top fitted with recessed heavy duty steel bars for field
bolting units together, producing a hairline seam. Hinged louver
panel to be stainless steel. Exterior body to be corrosion resistant
steel. Door opening frames are ABS and contain magnetic strip
for positive seal of door gaskets. Work surface to be at 36" work
height. Legs to be 6" high stainless steel with adjustable bullet
foot. Legs mounted to full length channel frame assembly which
is integrally welded to bottom of body assembly. Legs can be
moved left to right to avoid floor obstacles during installation.
CABINET INTERIOR: Base interior to be ABS thermoplastic at ends
only. Stainless steel interior liner to be coved cornered to form
bottom, back and top. One baked enamel finished shelf provided
behind each door. Unit insulation to be CFC free foamed in place
urethane.
DOORS: Door fronts to be 22-gauge stainless steel exterior front
with 16 gauge stainless steel door pulls/handles. The interior
liner is vacuumed formed ABS with integral gasket retainer
for easy cleaning and accepts Randell's Exclusive Press Fit
Gasket system. Doors are mounted on concealed hinges. One
removable wire shelf is supplied behind each door.
REFRIGERATION: Refrigeration system utilizes "CFC free" R-134a
refrigerant. Condensing unit sized and installed for proper cooling
in housing at left end. Interior fitted with Randell evaporator blower
coil for cooling base. Blower coil fitted with expansion valve for
fast recovery and thermostatic control for field adjustability. Unit
totally prewired and to be supplied with 8' cordset (NEMA 5-15P)
for 115V operation. Hot gas condensate evaporator.
1055 Mendell Davis Drive, Jackson, MS 39272
888-994-7636, unifiedbrands.net
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.
51341 51344
51368 51377
models 51000
51347 51356
51380 51383
model 51362 shown with
optional finished end
Standard Features:
• Available under one piece top with other modular equipment
up to 16' in length
• 6" high legs—adjustable and movable
• Foamed in place "CFC free" urethane insulation
• Refrigeration system utilizes "CFC free" R-134a refrigerant,
expansion valve for fast recovery, and thermostatic control
for field adjustability
• 45˚ integral stainless backsplash is standard. 90˚ stainless
backsplash is optional.
• Front breathing louver design allows sealing to wall & curb
mounting without special requirements
Options & Accessories:
Patented Drawer Cartridge Systems - Exclusive
Randell Feature + 3 years parts & labor warranty!
No Backsplash for dual sided / Cafeteria Operation
Tray racks for sheet pans (33" dp., 24" doors only)
Cutting boards
Stainless Steel Ends
Stainless Steel Back
Laminate fronts, ends and back options
Casters in lieu of legs
Export voltages
Over-shelving storage options
Compressor on right option
51359 51362
51386 51389
33°F to 40°F
Randell RanSpec, Page 14a
PP SPEC0129 Rev. A
Revised 08/07
33°F to 41°F
