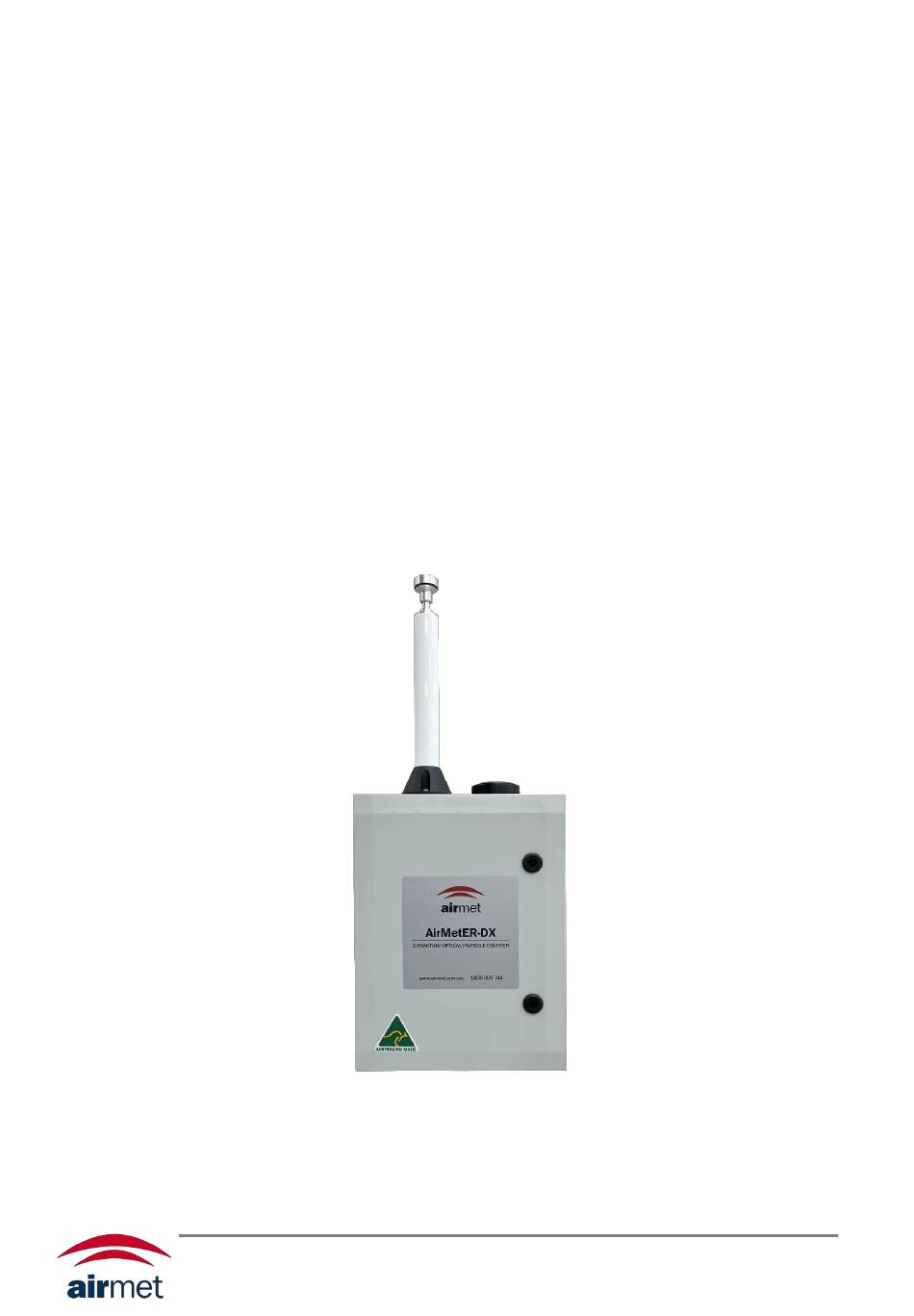

airmet AirMetER-DX User Manual

2-fraction particulate monitor
Hide thumbs Also See for AirMetER-DX:

Advertisement

Quick Links

AIR-MET SCIENTIFIC
AirMetER-DX
2-FRACTION PARTICULATE
MONITOR
User Manual
Before operating the unit, please read this user manual thoroughly and retain for future reference
Edition 7 | June 2023
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AirMetER-DX and is the answer not in the manual?

Questions and answers

Summary of Contents for airmet AirMetER-DX

  • Page 1 AIR-MET SCIENTIFIC AirMetER-DX 2-FRACTION PARTICULATE MONITOR User Manual Before operating the unit, please read this user manual thoroughly and retain for future reference Edition 7 | June 2023...
  • Page 2: Table Of Contents

    CONTENTS Copyright Notice ................................. 3 Warnings, Cautionary Statements & Important Information ..................3 Warranty & Service ..............................4 1. Overview ................................. 5 2. Monitor Assembly ..............................6 Hardware V.2 ................................6 Hardware V.3 ................................7 3. Detector Labeling ..............................8 4.
  • Page 3: Copyright Notice

    COPYRIGHT NOTICE These help materials or any part thereof may not, without the written consent of Air-Met Scientific, be copied, reprinted, or reproduced in any material form including but not limited to photocopying, transcribing, transmitting, or storing it in any medium or translating it into any language, in any form or by any means, be it digitally, electronic, mechanical, xerographic, optical, magnetic, or otherwise.
  • Page 4: Warranty & Service

    Air-Met Scientific maintains instrument service facilities nationwide. Should your instrument require service, you may contact us on 1800 000 744 or at service@airmet.com.au. Alternatively, instrument service may be booked by completing our online service request form at the following URL: https://www.airmet.com.au/services/book-a-service...
  • Page 5: Overview

    1. OVERVIEW The AirMetER-DX is a remote area dust monitor for the simultaneous detection and measurement of particulate matter PM and PM size fractions. Housed in a weatherproof IP66 rated polycarbonate enclosure, the AirMetER-DX is ideal for continuous round the clock outdoor monitoring and has data logging capacity at a minimum of 365 days at one-minute intervals. It has a built-in log and forward capability to capture one week of operation in the event of a network disruption.
  • Page 6: Monitor Assembly

    2. MONITOR ASSEMBLY HARDWARE V.2...
  • Page 7 HARDWARE V.3...
  • Page 8: Detector Labeling

    Each detector is identified with the use of two labels. The labels contain the part and serial number information (Figure 3.1). The labels can be located on the inside surface of the instrument door and on top of the particulate module. MODEL: AirMetER-DX SERIAL NO.: ER0917010 ICCID: 69852470001478955472 Figure 3.1 –...
  • Page 9: Installation

    40-105mm in diameter. An adjustable spanner or flat- blade screwdriver may be utilised to either tighten or release the pipe clamp to suit the intended structure diameter. Care should be taken during installation to ensure the AirMetER-DX is level and firmly secured. Figure 4.1 – Mounting Brackets...
  • Page 10: Location & Mounting Of Monitor

    LOCATION & MOUNTING OF MONITOR Air-Met Scientific recommends the monitor is pole or tripod mounted in an open area, free from buildings and other obstructions that may have an influence on measurements. Figure 4.3 – External and Mounting-Point Dimensions (mm)
  • Page 11: Livesense Cloud Portal

    By default, this station will be setup with an activity alarm ‘Comms Alarm’ and basic graphical widgets on your dashboard. Should you wish to modify your platform, please refer to Air-Met Scientific’s ‘LiveSense User Guide’ for a complete overview of basic and more advanced functions available. For further assistance or troubleshooting, contact engineeredsolutions@airmet.com.au 11 11...
  • Page 12: Maintenance

    Specified maintenance and calibration intervals are recommendations only. A maintenance plan suitable for the application should be discussed internally. Alternatively, Air-Met Scientific can assist with this through a service agreement. Only trained technicians should attempt any disassembly or repairs on the AirMetER-DX.
  • Page 13: Troubleshooting

    TROUBLESHOOTING ISSUE SOLUTIONS 1. Is the pump plugged in at the top as displayed in Figure: 6.5? No air flow at the exhaust 2. Is the dust filter blocked and need replacement? 3. Trace the tubing from the heated inlet > particulate sensor module >...
  • Page 14: Filter Exhange

     121-5866 – Pneumatic silencer The pneumatic silencer is installed on AirMetER-DX instruments manufactured before February 2023. This only requires replacement when polluted or damaged. It is recommended that the dust filter be exchanged no less than annually. The filters should be monitored and inspected at regular intervals in new applications to gain an insight into how long the filters last before discolouration.
  • Page 15: Tsp Head Cleaning

    FLOW RATE CALIBRATION Attach a 0.4-5L/m rotameter (320-4A5) to the inlet of the AirMetER-DX. The flowmeter should indicate 2L/m ±5%. Should this be out of tolerance, check to ensure there are no leaks and that there is pressure when blocking the heated inlet.
  • Page 16: Frequency Tables

    FREQUENCY TABLES CALIBRATION FREQUENCY TABLE DESCRIPTION CALIBRATION FREQUENCY Particulate Sensor Yearly Pump Module Yearly (additionally when the dust filter is replaced or the heated inlet is removed) FILTER REPLACEMENT TABLE FILTER DESCRIPTION PART NUMBER REPLACEMENT FREQUENCY Dust Filter 9933-05-CQ Yearly Pneumatic Silencer 121-5866 Only when polluted or damaged...
  • Page 17: Annual Calibration

    ANNUAL CALIBRATION In order for the AirMetER-DX module to be calibrated, it must be returned to the Air-Met Scientific Head Office in Melbourne. For a guide on how to remove the AirMetER-DX or pump modules, please refer to our Module Removal / Replacement quick guide or Service Guide.
  • Page 18: Field K Factor Adjustment

    7. FIELD K FACTOR ADJUSTMENT Field calibration (K Factor Adjustment) of the AirMetER-DX is an important process to ensure data accuracy with respect to the location of the instrument. Field calibration should not be considered a substitute for factory calibration.
  • Page 19: Performance

    8. PERFORMANCE AirMetER-DX / Dusttrak 8530 PM Correlation R² = 0.9501 AirMetER-DX / Dusttrak 8530 PM Correlation R² = 0.9058...
  • Page 20: Spare Parts & Accessories

    9. SPARE PARTS & ACCESSORIES ITEM PART NUMBER Tripod TF-TRI-AM Remote Power System AMS/200S/170B/15M/9C or AMS/200S/150B/15M/9C TSP Head 10085 Cyclone Head AE10-2 Heated Inlet 10090-2 Power Supply (240V) LPF-60-12-AUP Pneumatic Silencer 121-5866 Dust Filter 9933-05-CQ Pump TM30A-D12-V7004 Meteorological Sensors Upon Request Luer Fittings and Tubing Upon Request Particulate Sensor...
  • Page 21: Specifications

    10. SPECIFICATIONS GENERAL Power Requirement 12VDC Rated Power Operating Temperature 0°C to 50°C Operating Humidity 0 to 95% non-condensing Operating Pressure 860 to 1100 hPa Particulate Sensor Operating Life 2 years (when operated below 40°C) Datalogging (optional) 3 years of logs onboard with unique file name creation every 24 hours Alarm Indicator (optional) Onboard dedicated alarm relay for PM and PM...
  • Page 22: Contact Information

    Postal Address P.O. Box 133 Nunawading VIC 3131 Australia Phone: 1800 000 744 +61 3 8878 3300 Fax: 1800 000 774 +61 3 8878 3344 Web: www.airmet.com.au Email: sales@airmet.com.au Air-Met Scientific Pty Ltd, Australia © 2023 Air-Met Scientific All rights reserved.
