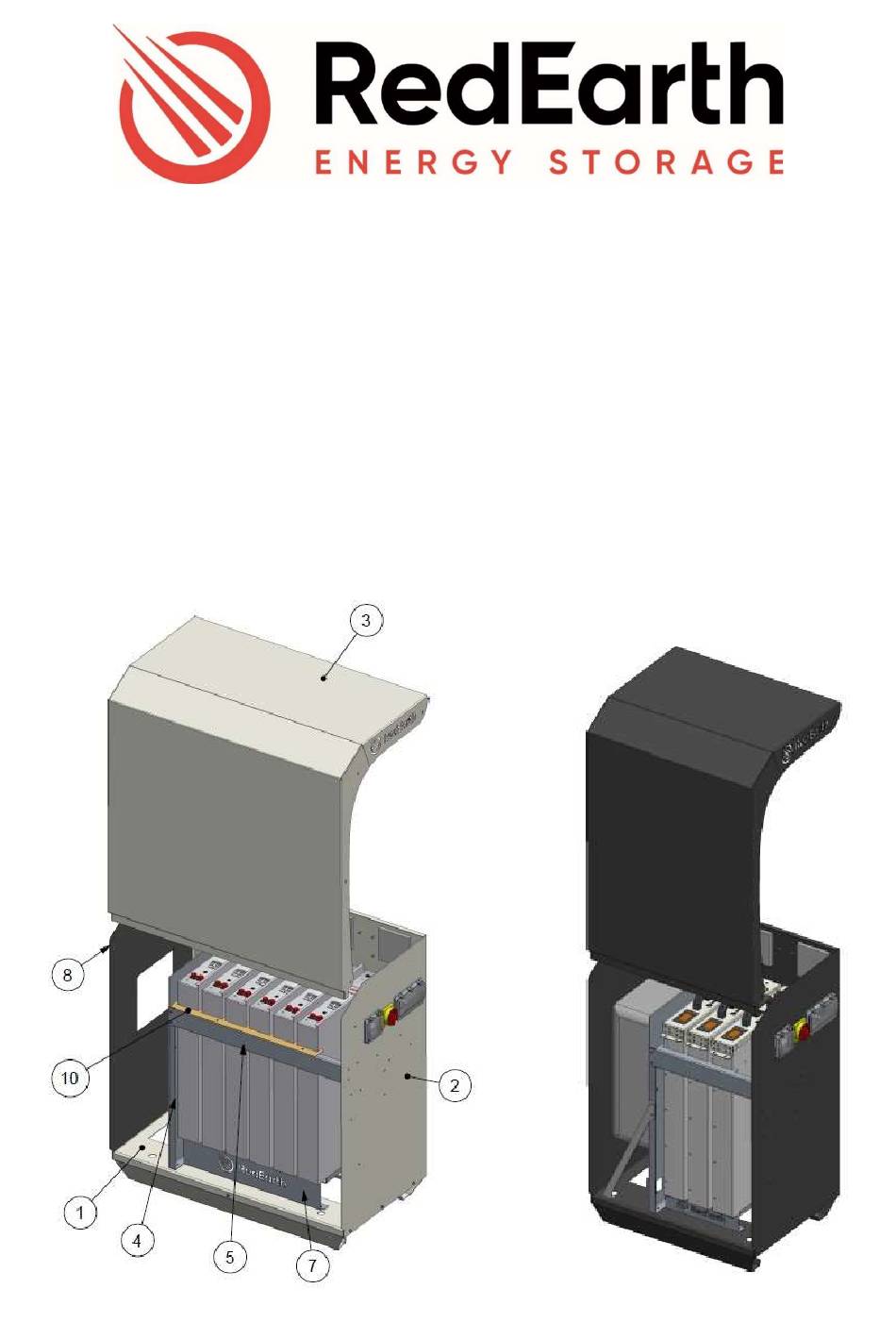

Page 1: Sunrise 1-Phase
SunRise 1-phase Home Battery System Model: SRS-1xx NS & SRM-1xx NS Installation Manual... - Page 2 SunRise 1ph NS – Installation Manual RedEarth Energy Storage Ltd 15 Fienta Place Darra, Brisbane QLD 4076 Australia Tel: 1800 733 637 Email: support@redearth.energy Web: www.redearth.energy SunRise 1ph NS Install Version 1.0 Page 2 of 32 Issue Date 30/06/2022...
-
Page 3: Table Of Contents
SunRise 1ph NS – Installation Manual Table of Contents SunRise 1-phase ..........................1 Model: SRS-1xx NS & SRM-1xx NS ......................1 Safety ..............................4 SunRise Overview ..........................5 Dimensions and clearance/positioning information ................6 Summary of connections ........................7 Internal Components description ......................8 Installation –... -
Page 4: Safety
DO NOT use water. Note: MSDS document is provided with the system and can be found at www.redearth.energy Do not use a damaged battery. Batteries should only be disposed of at an appropriate recycling centre. -
Page 5: Sunrise Overview
The SunRise system can also easily be retrofitted to an existing PV solar system that may already be installed at the home. All batteries added later must be of the same make and model and supplied by RedEarth to maintain the customer’s warranty. A maximum of 6 batteries can be added into the SRS-1xx (Maxi) totalling 24.6kWh nominal and a maximum of 3 batteries can be installed into the SRM-1xx (Mini) totaling 12.3kWh nominal.. -
Page 6: Dimensions And Clearance/Positioning Information
SunRise 1ph NS – Installation Manual Dimensions and clearance/positioning information SunRise Weight, size and IP rating: SRS-1xx Maxi 339kg with 6x TROPPO Lithium batteries (42kg per battery) 87kg complete without batteries 1040H x 969W x 544D [mm] SRS-1xx Maxi ... -
Page 7: Summary Of Connections
SunRise 1ph NS – Installation Manual Summary of connections A typical complete installation of the SunRise Home Battery will require the electrical connection of the following items: 1. Meter (supplied) installed in the MSB and connected to the SunRise system via Cat5/6 cable or similar. -
Page 8: Internal Components Description
SunRise 1ph NS – Installation Manual Internal Components description Opening the SunRise RedEarth’s SunRise Home Battery System can be internally accessed by removing the lid. To do this, remove the nine (9) screws with a Philips screwdriver (PH2), lift and pull the cover away from the unit and place in a safe location. - Page 9 This is where the batteries are located. A complete set will have 6x RedEarth Troppo-4841 Lithium Batteries in the SunRise-Maxi (SunRise Mini will have 3x RedEarth Troppo Batteries). Note that the battery modules are usually shipped separately. They are connected in parallel using the battery cables that are already pre-wired in the system.
- Page 10 SunRise 1ph NS – Installation Manual Parts Kit box: (see image at right) o Sungrow meter (with CT) for installation in the switch board o Stickers and Traffolytes required for the installation o 2x MC4 connector pairs – for terminating the PV array strings o 1x M16 Gland for the comms...
-
Page 11: Installation - 8 Steps For Installation And Customer Handover
The SunRise system is designed to be easy to install. It includes prewired connection points and comprehensive labelling and parts kit to simplify the installation. Technical support is available directly from RedEarth during installation if required. 8 steps to complete the SunRise installation: Transporting –... -
Page 12: Step 2- Positioning
SunRise 1ph NS – Installation Manual Step 2- Positioning The SunRise is designed as a freestanding weatherproof system (IP43). It is rated for the following Environmental Condition – Rated maximum ambient operating temperature 50degC for outdoor unconditioned without solar effects. According to AS4777.2:2020. -
Page 13: Step 3 - Solar Installation
SunRise 1ph NS – Installation Manual Step 3 - Solar Installation PV Racking & Panels should be designed and installed in accordance with AS/NZS 5033 and the latest CEC Installation guidelines. Caution should be taken in selecting PV panels and the wiring method to ensure Open Circuit Voltage (V ) and Short Circuit Current (I ) ratings are not exceeded. -
Page 14: Step 4 Electrical Connections
MC4s in the system. Battery The SunRise has been tested and commissioned at the RedEarth factory. If the batteries have been removed for transportation/positioning, follow the procedure below to correctly wire in the batteries. -
Page 15: Grid & Eps
SunRise 1ph NS – Installation Manual 3. Reinstall the cross bar to secure the batteries from falling over. 4. Ensure the MAIN BATTERY BREAKER on the right side of the SunRise is turned OFF. 5. Plug the battery cables into the batteries, being careful that red goes to red and black goes to black. -
Page 16: Auxiliary Remote Earth Fault Alarm Option
SunRise 1ph NS – Installation Manual Earth connection must be made to the same switchboard as the power cables There is no need for a separate neutral for EPS as the connection is maintained internally. This system complies to IEC 62109-2 clause 13.9 for earth fault monitoring. -
Page 17: Msb & Meter
SunRise 1ph NS – Installation Manual MSB & Meter In the switch board, three tasks must be done for a complete Sunrise Installation: Separation of the circuits into non-essential and essential circuits (EPS) Installation of the Sungrow meter and CT ... -
Page 18: Step 5 Understanding The Turn On/Shutdown Procedure
SunRise 1ph NS – Installation Manual Step 5 Understanding the Turn ON/SHUTDOWN Procedure Before starting up the SunRise confirm the following items have been completed, The PV cables have the correct polarity and are correctly connected to the MC4s provided. ... - Page 19 SunRise 1ph NS – Installation Manual The Shutdown Procedure is the reverse of the “turn on” procedure and is shown below. This procedure can be found on the traffolyte label on the RHS of the unit. 1 Turn OFF all AC circuit breakers (#1). 2 Switch OFF the SOLAR D.C.
-
Page 20: Step 6 Commissioning The System
The SunRise is commissioned and tested in RedEarth’s factory to confirm correct operation of the system prior to shipment. The RedEarth settings can be accessed via the Local-mode login on the iSolarCloud APP. The installer will need to confirm inverter settings and complete on-site parameter adjustments (e.g., Export limitation, connection to the customer’s Wi-Fi or changing Australia A to B or C depending on where the... - Page 21 SunRise 1ph NS – Installation Manual f) The Local Access login details are shown at right. This is only for admin access by the installer. The USER login details are shown in the User Manual. Account admin Password pw8888 3. Confirm initial configuration and selection of regional settings and other settings at commissioning For compliance with AS/NZS 4777.2:2020 confirm that Australia Region A/B/C for the grid code is set correctly.
- Page 22 SunRise 1ph NS – Installation Manual After successful installation, the LCD screen on the front of the inverter will display as below. If dashes appear instead of numbers, the installation is incorrect and must be fixed. Generating a summary page of initial setting at end of commissioning: To comply with the AS4777.2:2020 Section 7.3.8 (shown below) a summary of the final settings, as shown above, can be saved when you are in Local mode and logged in as the admin, and kept for future reference.
- Page 23 SunRise 1ph NS – Installation Manual 4. Test the operation of the complete system prior to handover to the customer: This includes confirming that the system; is generating PV, charging the batteries, and supplying the loads also, that the By-pass switch works, by actually switching to By-pass mode and confirming the operation.
- Page 24 The SunRise system can operate in all DRM modes from 0 to 8 as listed below. These are activated by adding a DRED device. The image at right shows the DRM terminal within the Sungrow inverter. Contact RedEarth if required. SunRise 1ph NS Install Version 1.0 Page 24 of 32...
-
Page 25: Step 7 Activating Remote Monitoring & Communications
Step 8 Customer Handover Handover to customer 1. Confirm that the customer has downloaded the RedEarth EMU APP (or Switchdin APP) and is logged-in, otherwise provide the customer’s contact details to RedEarth to complete onboarding the customer at a later time. -
Page 26: Services & Options Available For Your Sunrise
SunRise 1ph NS – Installation Manual Services & Options available for your SunRise As a RedEarth SunRise system owner you have the choice of joining our customer community. You just need to register your contact details with RedEarth. You can receive regular relevant communications from RedEarth. -
Page 27: Appendix A - Single Line Diagrams
SunRise 1ph NS – Installation Manual Appendix A – Single Line Diagrams Single Line Diagram - Power SunRise 1ph NS Install Version 1.0 Page 27 of 32 Issue Date 30/06/2022... - Page 28 SunRise 1ph NS – Installation Manual Single Line Diagram - Communications SunRise 1ph NS Install Version 1.0 Page 28 of 32 Issue Date 30/06/2022...
- Page 29 SunRise 1ph NS – Installation Manual Single Line Diagram – Main Switchboard SunRise 1ph NS Install Version 1.0 Page 29 of 32 Issue Date 30/06/2022...
-
Page 30: Appendix B - Technical Specifications
SunRise 1ph NS – Installation Manual Appendix B - Technical Specifications Technical Specifications – SunRise System PV Input MPP Voltage Range 125V – 560V Max. Input Voltage (V 600V Max. Input Current 11/11A Short Circuit Current (I 15/15A Battery Battery type Lithium-Ion Phosphate or Battery Ready Nominal Energy Capacity 4.1kWh per Troppo (4.1 / 8.2 / 12.3 / 16.4 / 20.5 / 24.6) - Page 31 SunRise 1ph NS – Installation Manual Technical Specifications – SunRise System SunRise 1ph NS Install Version 1.0 Page 31 of 32 Issue Date 30/06/2022...
- Page 32 SunRise 1ph NS – Installation Manual Troppo-4841 Battery specifications Short-circuit Current (I 0.4 kA 0.8 kA 1.2 kA 1.6 kA 2.0 kA 2.4 kA UN Number 3481 SunRise 1ph NS Install Version 1.0 Page 32 of 32 Issue Date 30/06/2022...
