RedEarth HoneyBadger User Manual
Home battery system – off-grid victron with troppo-4841 lithium batteries
Hide thumbs
Also See for HoneyBadger:
- Installation manual (32 pages) ,
- User manual (19 pages) ,
- Installation manual (20 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for RedEarth HoneyBadger
Summary of Contents for RedEarth HoneyBadger
- Page 1 HoneyBadger Home Battery System – Off-grid Victron with Troppo-4841 Lithium batteries User Manual...
- Page 2 Electrical installations-Safety of battery systems for use with power conversion equipment The HoneyBadger must only be installed by suitably qualified personnel who have read and are familiar with its operation and hazards. The battery provided with this system must be charged only by the Victron inverter and MPPT.
- Page 3 A direct connection from the customers router to the HoneyBadger is also possible. Note: The HoneyBadger is not designed to act as a main switch board for the premises, as it does not include space for additional main & customer circuit breakers or RCDs. The MEN link and Earth connection need to be in place at the premises as required.
- Page 4 According to AS/NZS 5139. Note: if the system is >300mm off the wall then this does not apply. The HoneyBadger is rated for outside installation. It should be installed in a shaded area. HoneyBadger User Version 2.0...

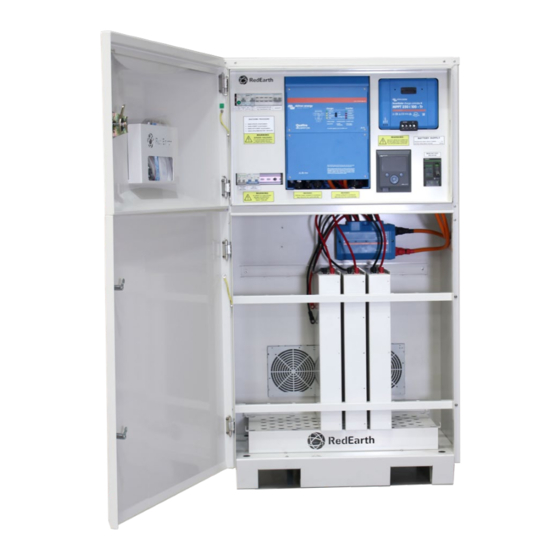

- Page 5 HoneyBadger Overview The HoneyBadger – overview of operation Your HoneyBadger has two sections. The top area contains the inverters, MPPT’s and all of the electrical switch gear. The bottom section is pre-wired for up to eight of RedEarth’s 4.1kWh Troppo batteries.
- Page 6 The AC Breakers include a two-pole breaker for connecting a generator as well as a By-pass switch to use if the HoneyBadger has a problem and the load is to be run off the generator alone. Each switch has an identification label directly below it. These are shown below.
- Page 7 Monitoring display: This display allows monitoring of the system status as well as some parameter changes. Additional detailed instructions on the monitoring display are available from Victron at https://www.victronenergy.com/upload/documents/Manual- Color-Control-GX.0.3-EN.pdf HoneyBadger User Version 2.0 Page 7 of 18 Issue Date 10/09/2022...
- Page 8 The bottom compartment can hold up to eight of RedEarth’s 4.1kWh Troppo batteries. Passive ventilation is provided via the vents in the base of the HoneyBadger and through the vents in the top rear of the compartment. Ensure that these are not blocked by other material.
- Page 9 HoneyBadger User Manual How to Turn ON / Shutdown my HoneyBadger Turn ON procedure In the battery compartment switch on the battery switch on the top of each lithium battery. The display and LED light on each battery will illuminate.
- Page 10 To setup monitoring via the EMU App follow the steps below. Using your mobile phone, scan the QR code sticker attached on the inside of the top door of your HoneyBadger. It looks like this: Scanning the code will automatically take you to the RedEarth customer portal for system registration, as shown below.
- Page 11 HoneyBadger User Manual Download RedEarth’s EMU app Click on the Google Play or App Store icons to download the RedEarth EMU app. Open the EMU app and create and account using the email you just registered via the QR code.
- Page 12 After receiving the invitation email from Victron, follow the prompts to setup your account. Happy monitoring in the VRM portal. Contact details for RedEarth can be found on the last page of this manual. HoneyBadger User Version 2.0 Page 12 of 18...
- Page 13 4. Turn ON generator AC breaker; 5. Manually start generator. In By-Pass mode your loads will be run directly off your generator. Contact RedEarth during office hours to help resolve your problem. Q: My Generator is turning on too frequently and/or staying on for too long. What does this mean? A: If connected to the auto-start, there are several reasons that it might be turning on.
- Page 14 Maintenance and End of Life Maintenance Schedule Weekly Check the RedEarth EMU app to monitor the operation of your HoneyBadger system Check the earth fault alarm is green “all OK” Monthly Clear any vegetation or overgrowth around the HoneyBadger ...
- Page 15 HoneyBadger User Manual Services and options available for your HoneyBadger As a RedEarth HoneyBadger system owner you have the choice of joining our customer community. You just need to register your contact details with RedEarth. You can receive regular relevant communications from RedEarth.
- Page 16 HoneyBadger User Manual HoneyBadger User Version 2.0 Page 16 of 18 Issue Date 10/09/2022...
- Page 17 HoneyBadger User Manual RedEarth Energy Storage Ltd 15 Fienta Place Darra, Brisbane QLD 4076 Australia Tel: 1800 733 637 Email: support@redearth.energy Web: www.redearth.energy HoneyBadger User Version 2.0 Page 17 of 18 Issue Date 10/09/2022...
- Page 18 HoneyBadger User Manual HoneyBadger User Version 2.0 Page 18 of 18 Issue Date 10/09/2022...
