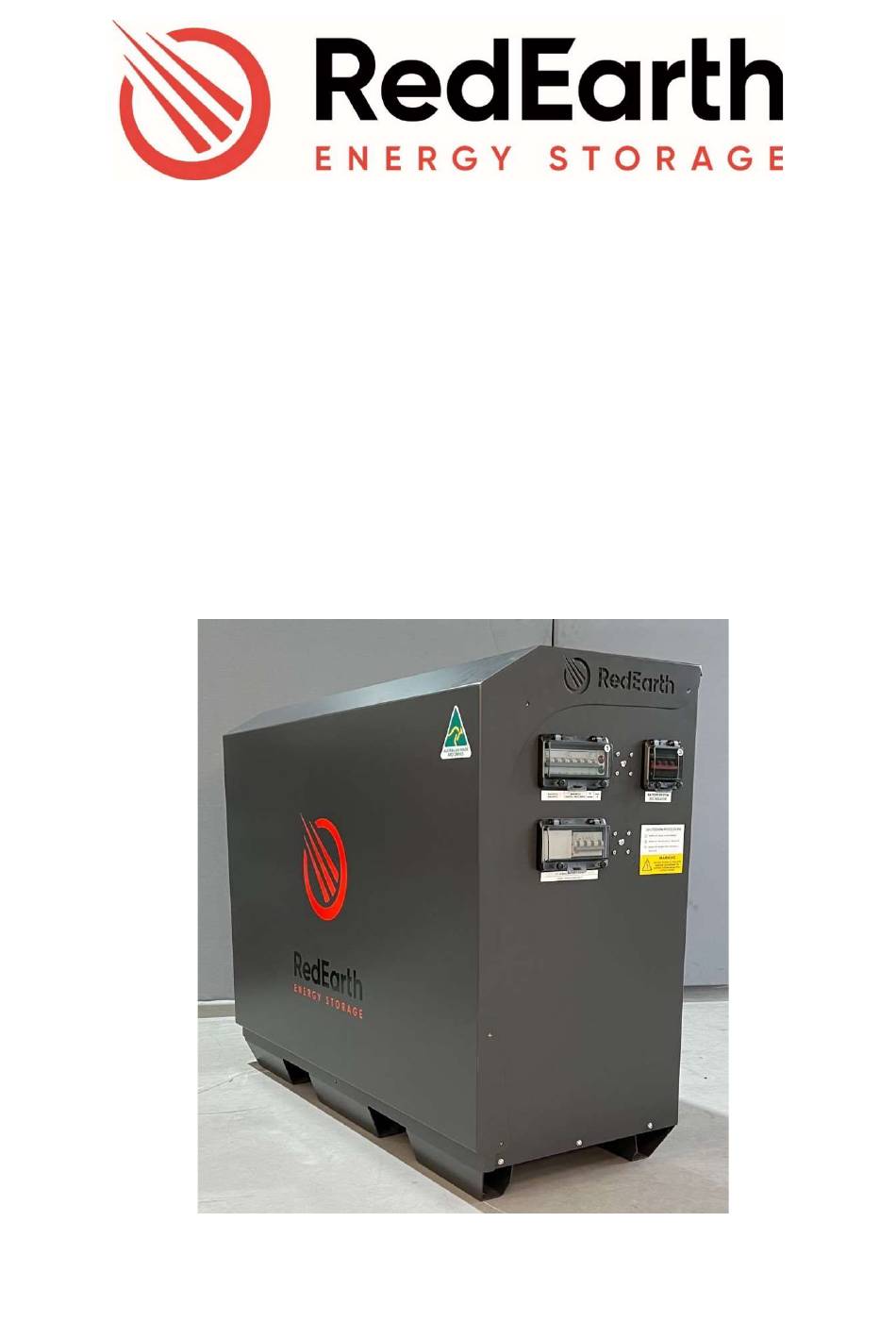

- Page 1 SunRise 3-phase Home Battery System Model: SRS-3xx NS User Manual...
- Page 2 In our efforts towards constant product enhancement, this document is subject to change at any time. Please visit www.redearth.energy and download the appropriate and latest version of this manual. Working on the inside of the SunRise system is restricted to qualified personnel.
- Page 3 All batteries added later must be of the same make and model and supplied by RedEarth to maintain your warranty. A maximum of 9 batteries can be added into the system totalling 31.95kWh. Battery size has the following effects on system operation, ...
- Page 4 SunRise 3ph NS – User Manual Dimensions and clearance/positioning information SunRise Weight, size and IP rating: 414kg with 9x Lithium batteries (32kg per battery) 126kg complete without batteries 99kg complete without batteries and inverter Dimensions: 1050 H x 1322 W x 537 D [mm] IP rating: IP43 Positioning information summary:...
- Page 5 Sunrise Overview The SunRise – overview of operation RedEarth’s SunRise Home Battery System is designed to be fully autonomous and provide solar and battery power in the most efficient way possible. The SunRise has three groups of switches on the right-hand side of the unit and also two PV isolators attached to the wall next to the unit.
- Page 6 SunRise 3ph NS – User Manual How to Turn ON / Shutdown your SunRise Turn ON procedure NOTE: All devices listed below are located on the RHS of the unit and can be also identified by the number affixed to the clear covers of the switches. (Numbers 1 to 4) To turn ON the unit you must follow the steps below: 1 Switch ON the BATTERY SYSTEM D.C.
- Page 7 SunRise 3ph NS – User Manual How to Turn ON / Shutdown my SunRise Shutdown Procedure The shutdown procedure is the reverse of the “turn on” procedure and is shown below. This procedure can be found on the RHS of the unit. 1 Turn OFF all AC circuit breakers (#1);...
- Page 8 SunRise 3ph NS – User Manual How my SunRise Operates Normal operation - Grid available: The SunRise is setup to provide power in the most optimal way to reduce your use of electricity from the grid. The priorities are to power the home loads from the PV (solar) first, then from the battery and finally from the grid.
- Page 9 Note that if the conditions are overcast or it is raining then the solar panels will not generate as much electricity as normal. Monitoring your RedEarth EMU app will show you the % of battery capacity remaining (unless the mobile phone network is also not operating) Once the batteries are empty, the SunRise will turn off and you will lose power on the EPS loads.
- Page 10 Shutdown Procedure (explained in this manual) and operate the system in Bypass mode (as explained below) and contact your installer. If they are not available, contact RedEarth. BYPASS OPERATION In the By-Pass operation mode the SunRise battery will be completely bypassed and the grid will provide power directly to all house loads, including the EPS (backup) loads.
-
Page 11: Monitoring Your System
Entering the information requested will help you to get the most from your investment in RedEarth’s PPP. After completing the warranty registration, you can easily create an account on the RedEarth EMU app with the same email and start viewing your system straight away. - Page 12 SunRise 3ph NS – User Manual Click on the Google Play or App Store icons to download the RedEarth EMU app. Create your account and RedEarth will immediately send a confirmation email to your email account. Click on the confirmation email and enter your electricity tariff, ...
- Page 13 A: If your essential loads do not have power but your non-essential loads do have power then you have a problem with the SunRise system. Turn the BYPASS switch on the RHS of the SunRise into the “Down” position as explained on pp10 above. Your essential loads should now have power. Contact RedEarth’s technical support on 1800 733 637 SunRise 3ph NS User Version 1.0...
- Page 14 SunRise 3ph NS – User Manual Steps to view Initial Grid Info and Parameter Settings The information below is provided to comply with AS4777.2:2020 Section 7.3.8 where you can check the parameter settings of the SunRise system in read-only mode. There are two ways to access this information, either via Local Mode which requires you to be next to the SunRise system and login via Local Mode, OR remotely via the iSolarCloud website or APP Local Mode access:...
- Page 15 SunRise 3ph NS – User Manual 2. Confirm initial configuration and selection of regional settings and other settings at commissioning The screen shots below from the APP show the sequence to reach the System Parameters setting page where the software version can be seen Access via iSolarCloud: Instructions for viewing the inverter software version and the selected regional settings and any variations to the default inverter settings in read-only mode, as per AS477.2:2020 section 7.3.8.
- Page 16 SunRise 3ph NS – User Manual Step 2: Click on your system. Step 3: Click on Settings. Step 4: Here you can read the grid settings, region and firmware version of your system. SunRise 3ph NS User Version 1.0 Page 16 of 20 Issue Date 30/06/2022...
- Page 17 Maintenance and End of Life Maintenance Schedule Weekly Check the RedEarth EMU app to note the operation of your SunRise system Check the PV earth fault lamp (RED lamp) is not illuminated on the side of the SunRise Monthly ...
- Page 18 SunRise 3ph NS – User Manual Services and options available for your SunRise As a RedEarth SunRise system owner you have the choice of joining our customer community. You just need to register your contact details with RedEarth. You can receive regular relevant communications from RedEarth.
- Page 19 SunRise 3ph NS – User Manual RedEarth Energy Storage Ltd 15 Fienta Place Darra, Brisbane QLD 4076 Australia Tel: 1800 733 637 Email: support@redearth.energy Web: www.redearth.energy SunRise 3ph NS User Version 1.0 Page 19 of 20 Issue Date 30/06/2022...
- Page 20 SunRise 3ph NS – User Manual SunRise 3ph NS User Version 1.0 Page 20 of 20 Issue Date 30/06/2022...
