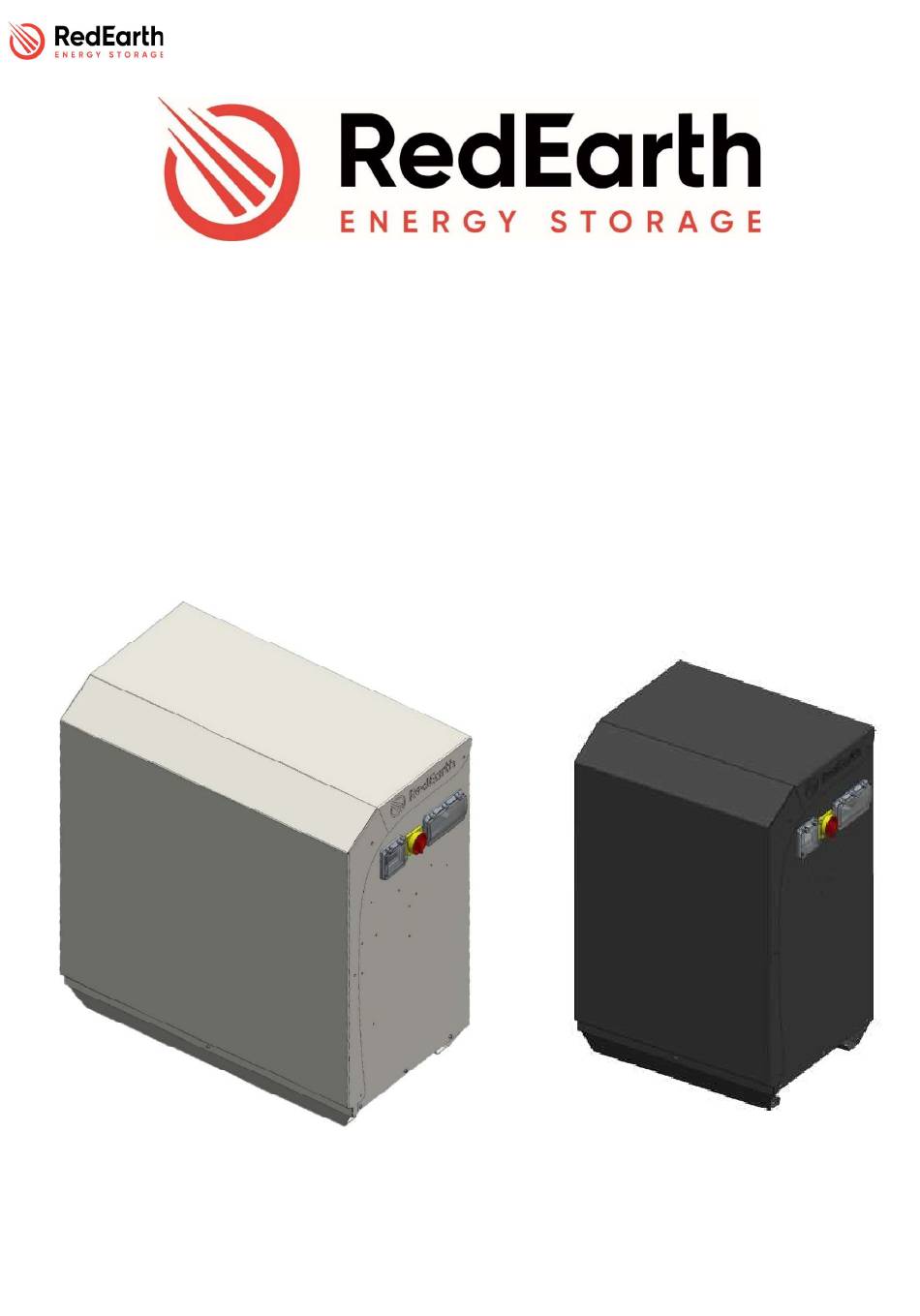

- Page 1 SunRise 1ph NS – User Manual SunRise 1-phase Home Battery System Model: SRS-1xx & SRM-1xx User Manual SRS-1xx (Maxi) SRM-1xx (Mini) SunRise 1ph NS User Version 1.0 Page 1 of 14 Issue Date 30/06/2022...
- Page 2 If equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. In our efforts towards constant product enhancement, this document is subject to change at any time. Please visit www.redearth.energy and download the appropriate and latest version of this manual. RedEarth Energy Storage Ltd...
- Page 3 All batteries added later must be of the same make and model and supplied by RedEarth to maintain your warranty. A maximum of 6 batteries can be added into the SRS-1xx (Maxi) totalling 24.6kWh nominal and a maximum of 3 batteries can be installed into the SRM-1xx (Mini) totaling 12.3kWh nominal..
- Page 4 SunRise 1ph NS – User Manual Dimensions and clearance/positioning information SunRise Weight, size and IP rating: SRS-1xx Maxi 339kg with 6x TROPPO Lithium batteries (42kg per battery) 87kg complete without batteries 1040H x 969W x 544D [mm] SRS-1xx Maxi ...
- Page 5 Sunrise Overview The SunRise – overview of operation RedEarth’s SunRise Home Battery System is designed to be fully autonomous and provide solar and battery power in the most efficient way possible. The SunRise has two groups of switches on the right-hand side of the unit and one PV isolator attached to the wall next to the unit.
- Page 6 SunRise 1ph NS – User Manual How to Turn ON / Shutdown my SunRise Turn ON procedure NOTE: all devices listed below are located on the RHS of the unit and can be also identified by the numbers affixed to the clear covers of the switches. (Numbers 1 to 4) To turn ON the unit you must follow the steps below: 1 Switch ON the BATTERY SYSTEM D.C.
- Page 7 SunRise 1ph NS – User Manual How my SunRise Operates Normal operation - Grid available: The SunRise is setup to provide power in the most optimal way to reduce your use of electricity from the grid. The priorities are to power your home from the PV (solar) first, then from the battery and finally from the grid.
- Page 8 Note that if the conditions are overcast or it is raining then the solar panels will not generate as much electricity as normal. Monitoring your RedEarth EMU app will show you the % of battery capacity remaining (unless the mobile phone network is also not operating) Once the batteries are empty, the SunRise will turn off and you will lose power on the EPS loads.
- Page 9 Shutdown Procedure (explained in this manual) and operate the system in Bypass mode (as explained below) and contact your installer. If they are not available, contact RedEarth. BYPASS OPERATION In the By-Pass operation mode the SunRise battery will...
-
Page 10: Monitoring Your System
Entering the information requested will help you to get the most from your investment in RedEarth’s PPP. After completing the warranty registration, you can easily create an account on the RedEarth EMU app with the same email and start viewing your system straight away. - Page 11 SunRise 1ph NS – User Manual Click on the Google Play or App Store icons to download the RedEarth EMU app. Create your account and RedEarth will immediately send a confirmation email to your email account. Click on the confirmation email and enter your electricity tariff, ...
- Page 12 A: If your essential loads do not have power but your non-essential loads do have power then you have a problem with the SunRise system. Turn the BYPASS switch on the RHS of the SunRise into the “Down” position as explained on pp9 above. Your essential loads should now have power. Contact RedEarth’s technical support on 1800 733 637 SunRise 1ph NS User Version 1.0...
- Page 13 Maintenance and End of Life Maintenance Schedule Weekly Check the RedEarth EMU app to note the operation of your SunRise system Check the PV earth fault lamp (RED lamp) is not illuminated on the side of the SunRise Monthly ...
- Page 14 SunRise 1ph NS – User Manual Services and options available for your SunRise As a RedEarth SunRise system owner you have the choice of joining our customer community. You just need to register your contact details with RedEarth. You can receive regular relevant communications from RedEarth.
