Cooper Lighting Metalux EIM Series Specification Sheet

COOPER LIGHTING - METALUX
EIM SERIES
4 ' o r 8 ' I n d u s t r i a l
2 , 3 o r 4 L a m p s
E N V I R O N M E N TA L
I N D U S T R I A L
• Equipped with energy
saving ballasts/complies
with federal energy
efficiency standards
• Die formed channels
• Advanced reflector design
prevents debris
accumulation
• Heavy duty apertured,
(EIM) or closed Top, (ECIM)
reflector
• Deep draw full width
reflector ribs add rigidity
• Metal clad lampholders
with spring loaded sockets
• Baked white enamel finish
• Apertured reflector (EIM)
standard with 20% uplight
• Porlux and Silverlining
finishes available
(3)
• Wire guards available for
special applications
• UL/CUL Listed. Suitable for
damp locations.
452
COOPER LIGHTING
D E S C R I P T I O N
The EIM Series is an energy
efficient family of industrials that
features premium performance
and durability. The EIM
incorporates heavy duty,
embossed, reflectors that
precisely direct and effectively
control light. The EIM reflector
has an inward flange developed
to prevent debris accumulation
in special applications. The
versatile EIM can be installed
using various mounting
methods and numerous options
and accessories are available.
The EIM can be utilized in simple
task and area lighting to the
most demanding specialized
industrial applications with
environmental requirements.
O R D E R I N G I N F O R M AT I O N
S A M P L E N U M B E R : E I M - 2 3 2 - 1 2 0 V - E B 8 1 - U
(2)
Silver
Tandem
Reflector
Blank=4'
SS=
Length
Silver-
8T=8' Length
Lining
Reflector
Series
EIM=Apertured
Reflector
ECIM=Closed Top
Reflector
Lamp Spacing
Blank=Standard Spacing
N=Narrow Spacing for 2 Lamp Only
(10% uplight)
(1)
NOTES: Products also available in non-US voltages and frequencies for international markets.
(3)
Silver lining not available on fixtures with HO, VHO or PG.
For complete product data, reference the Fluorescent Specification binder. Specifications & dimensions subject to change without notice. Consult your Cooper Lighting
Representative for availability and ordering information.
®

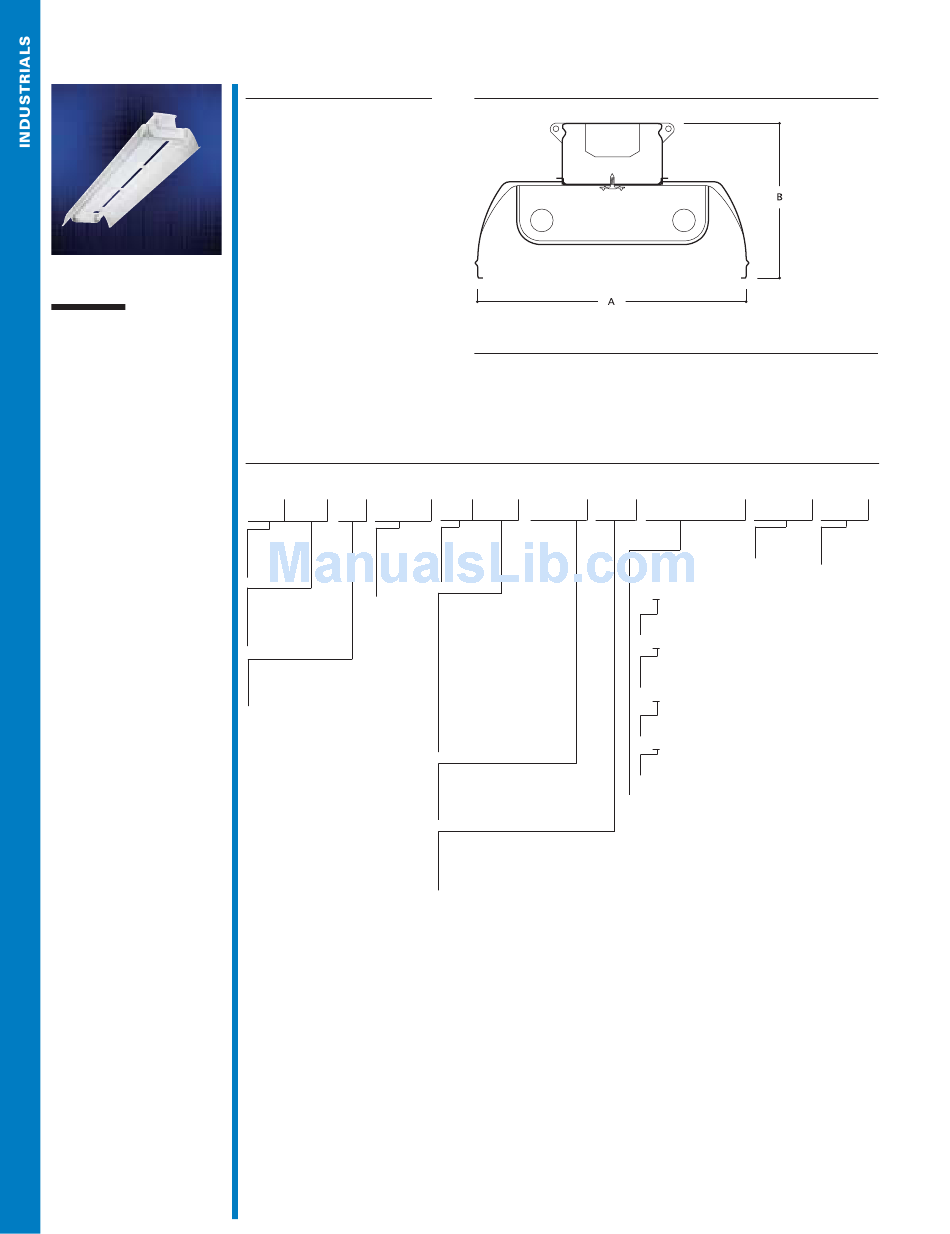

D I M E N S I O N S
NOMINAL LENGTH A
4', 8' 13" (330mm)
Number
of Lamps
2, 3 or 4
Lamps
(Not included)
Wattage (Length)
40=34/40W T12 (48")
32=32W T8 (48")
48=40W T12 (48") SL
48HO=60W T12 (48") HO
48HO=44W T8 (48") HO
48VHO=110W (48") VHO
96=60/75W T12 (72") SL
96=59W T8 (96") SL
96HO=95/110W T12 (96") HO
96HO=86W T8 (96") HO
96VHO=185/215W (96") VHO
96PG=185/215W (96") PG
(1)
Voltage
120V=120 Volt
277V=277 Volt
347V=347 Volt
(2)
UNV=Universal Voltage 120-277
Options
GL=Single Element Fuse
GM=Double Element Fuse
Emergency - for EM installed, see
EM options table
(2)
Not available when specifying emergencies, voltage must be specific.
B
6 7/8" (175mm)
Options
(See Options
Section)
(1)
Ballast Type
Blank=Standard Magnetic Ballast
LE3=T12 Magnetic Energy Saving
EB8 = T8 Electronic Instant Start.
Total Harmonic Distortion < 10%
No. of Ballast
1, 2 or 3
EB8 /PLUS= T8 Electronic Instant Start.
High Ballast Factor >1.13. Total
No. of
Harmonic Distortion < 20%
Ballast
1, 2 or 3
ER8 = T8 Electronic Program Rapid Start.
Total Harmonic Distortion < 10%
No. of Ballast
1, 2 or 3
EB2 =T12 Electronic Rapid Start.
No. of Ballast
1 or 2
(For complete details on generic or to specify
manufacturer's ballast see pg. 469)
Packaging
U=Unit Pack
4B=4 Bulk
