Installation and Assembly - Double Stack Box Accessory
IMPORTANT! Read entire instruction sheet before you start installation and assembly.
Before you begin, mak e sure all parts shown are included with your product.

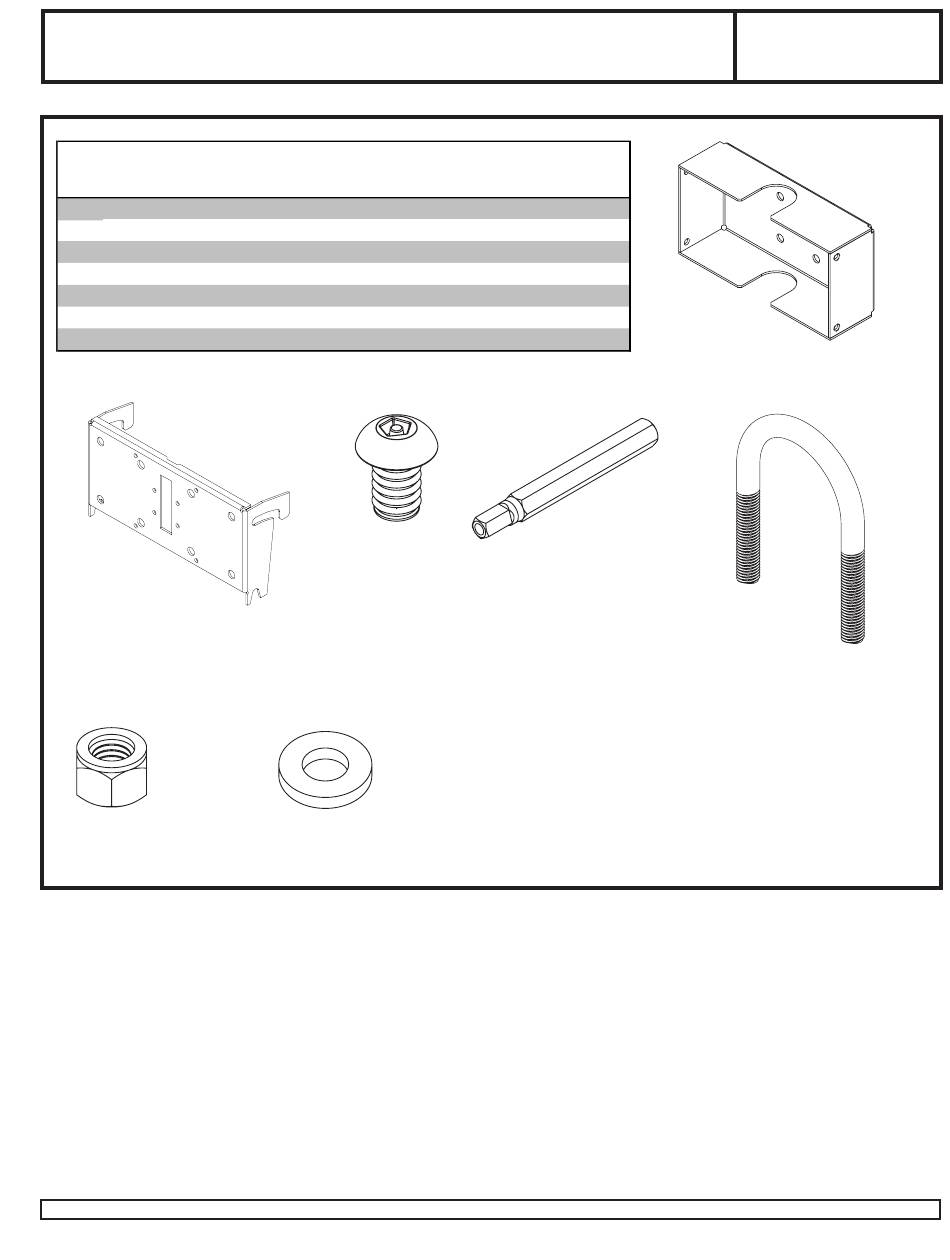

Parts List
Description
A
mounting box
B
tilt bracket
C
M10 x 15 mm penta-pin screw
D
penta-pin driver
E
u-bolt
F
nylock nut
flat washer
G
NOTE: Some parts may appear slightly different than illustrated.
B
F
Visit the Peerless Web Site at www.peerlessmounts.com
C
G
A
Qty. Part#
1
124-1841
1
200-1552
8
520-9263
1
520-9260
2
560-1060
4
530-9310
4
540-9454
D
1 of 3
ISSUED: 07-27-07 SHEET #: 124-9093-2 02-25-08
For customer care call 1-800-729-0307 or 708-865-8870.
Model:
MIS-ACC201
E
Advertisement
Table of Contents
Related Manuals for peerless-AV MIS-ACC201
Summary of Contents for peerless-AV MIS-ACC201
- Page 1 Installation and Assembly - Double Stack Box Accessory Model: MIS-ACC201 IMPORTANT! Read entire instruction sheet before you start installation and assembly. Before you begin, mak e sure all parts shown are included with your product. Parts List Description Qty. Part#...
- Page 2 WARNING • Installer must verify that the ceiling will safely support the combined weight of all attached equipment and hardware. Securely fasten mounting box (A) to support pipe (not included) using two u-bolts (E), four flat washers (G) and four nylock nuts (F). fig 1.1 SUPPORT PIPE (NOT INCLUDED) BY HAND, insert four M10 x 1.5 x 15 mm penta-pin screws (C) into threaded holes in the sides of ceiling arm...
- Page 3 Installation of Plasma Screens and 30" or Larger LCD Screens NOTE: Refer to adapter plate instruction sheet for attachment of adapter plate to plasma before proceeding with step 2. Attach tilt bracket (B) to adapter plate using four M10 x 15 mm penta-pin screws (C) in accordance with appropriate drawing below.
