Summary of Contents for peerless-AV MIS164T

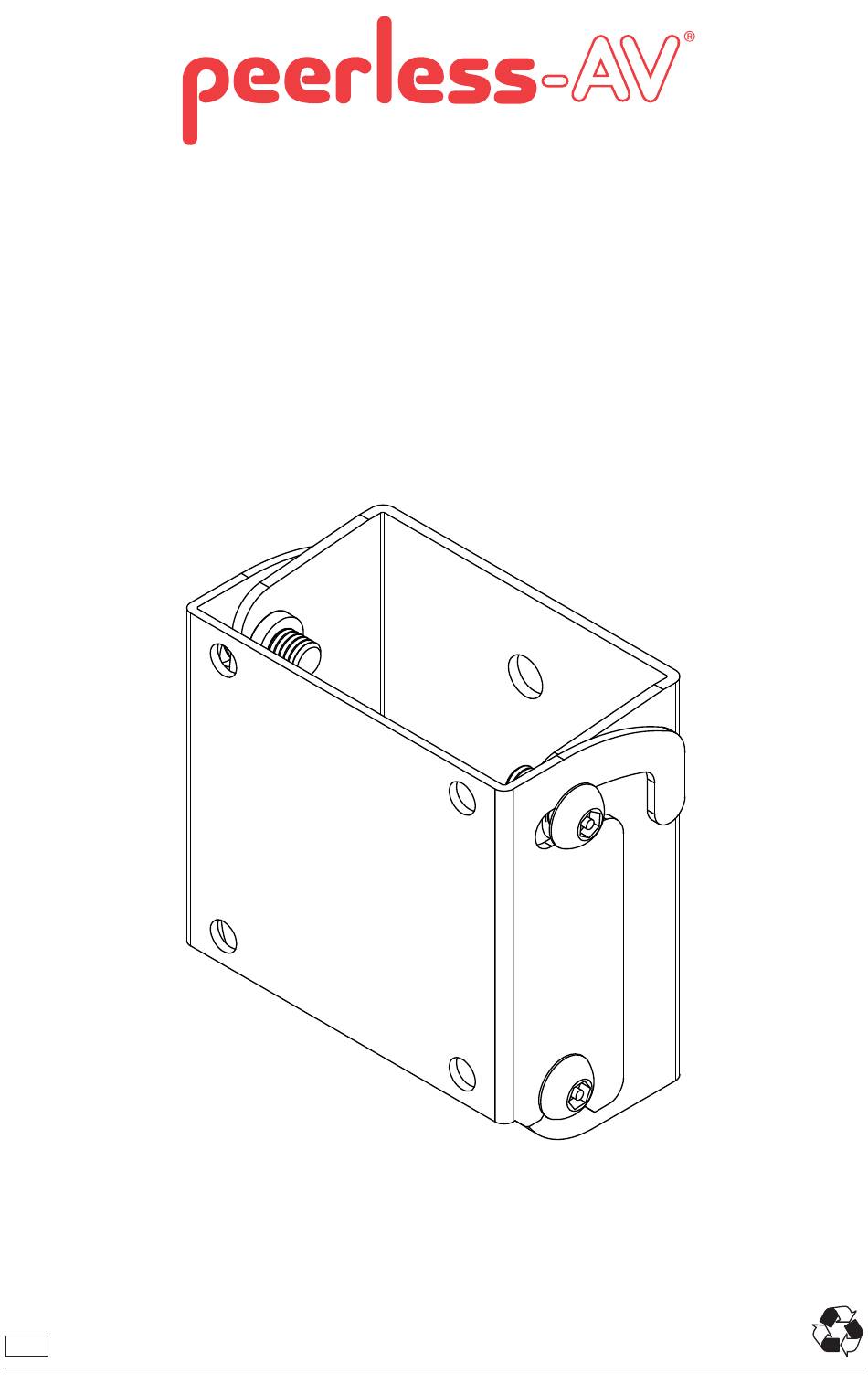

- Page 1 MIS164T For Samsung DBD10 2015-01-20 #:203-9485-1...
- Page 2 WARNING ENG - This product is designed to be installed on wood stud, solid concrete or cinder block walls. Hardware is included for wood stud, solid concrete and cinder block installation. Before installing make sure the supporting surface will support the combined load of the equipment and hardware. Screws must be tightly secured. Do not overtighten screws or damage can occur and product may fail.
- Page 3 Parts (Before beginning, make sure you have all parts shown below). Parts List Description Part # A wall plate 125-1531 B tilt bracket 125-1532 C M4 x 8mm serrated washer head socket pin screw 510-1005 D concrete anchor 590-0320 E #14 x 2.5" wood screw 5S1-015-C03 F M6 x 12mm socket pin screw 520-1050...
- Page 4 Wood stud wall. Concrete/Cinder block. Pared de madera. Concreto/Bloque de hormigón. Mur en bois. Béton/bloc de béton. Holzwand. Beton/Porenbetonstein. Houten muur. Beton/B2-blokken. Parete di legno. Calcestruzzo solido/forato. ČEŠ Dřevěná stěna. ČEŠ Betonový/škvárový blok. Drevená stena. Betónový/škvarový blok. Parede de madeira. Betão/bloco de cimento.
- Page 5 1a-1 Use stud fi nder to locate and mark stud center lines. 1a-2 Level wallplate. Mark mounting holes on stud center lines. 2015-01-20 #:203-9485-1...
- Page 6 1a-3 2.5" (64mm) 5/32" 5/32" (4mm) (4mm) Drill mounting holes into supporting surface (2.5" (64mm) minimum depth required). Mounting hole must center on stud. 1a-4 Level wallplate. Install using wood screws provided. 3/8" (10mm) Maximum 80 in. • lb (9 N.M.). E (2) 2015-01-20 #:203-9485-1...
- Page 7 WARNING ENG - When installing Peerless wall mounts on a concrete wall, the wall must be at least 8" thick with a minimum compressive strength of 2000 psi. When installing Peerless wall mounts on a cinder block wall, the cinder blocks must meet ASTM C-90 specifi...
- Page 8 1b-3 Insert anchor fl ush to concrete. D (2) 1b-4 Level wallplate. Install using concrete anchors and wood screws provided. 3/8" (10mm) Maximum 80 in. • lb (9 N.M.). E (2) 2015-01-20 #:203-9485-1...
- Page 9 NOTE: Screws should be fl ush with inside of hole as shown below. F (4) C (4) 2015-01-20 #:203-9485-1...
- Page 10 Tighten. F (4) 2015-01-20 #:203-9485-1...
- Page 11 This page was intentionaly left blank. 2015-01-20 #:203-9485-1...
-
Page 12: Limited Five-Year Warranty
® This warranty gives specifi c legal rights, and you may also have other rights which vary from state to state. Peerless-AV Peerless-AV Europe Peerless-AV de Mexico 2300 White Oak Circle Unit 3 Watford Interchange, Ave de las Industrias 413...
