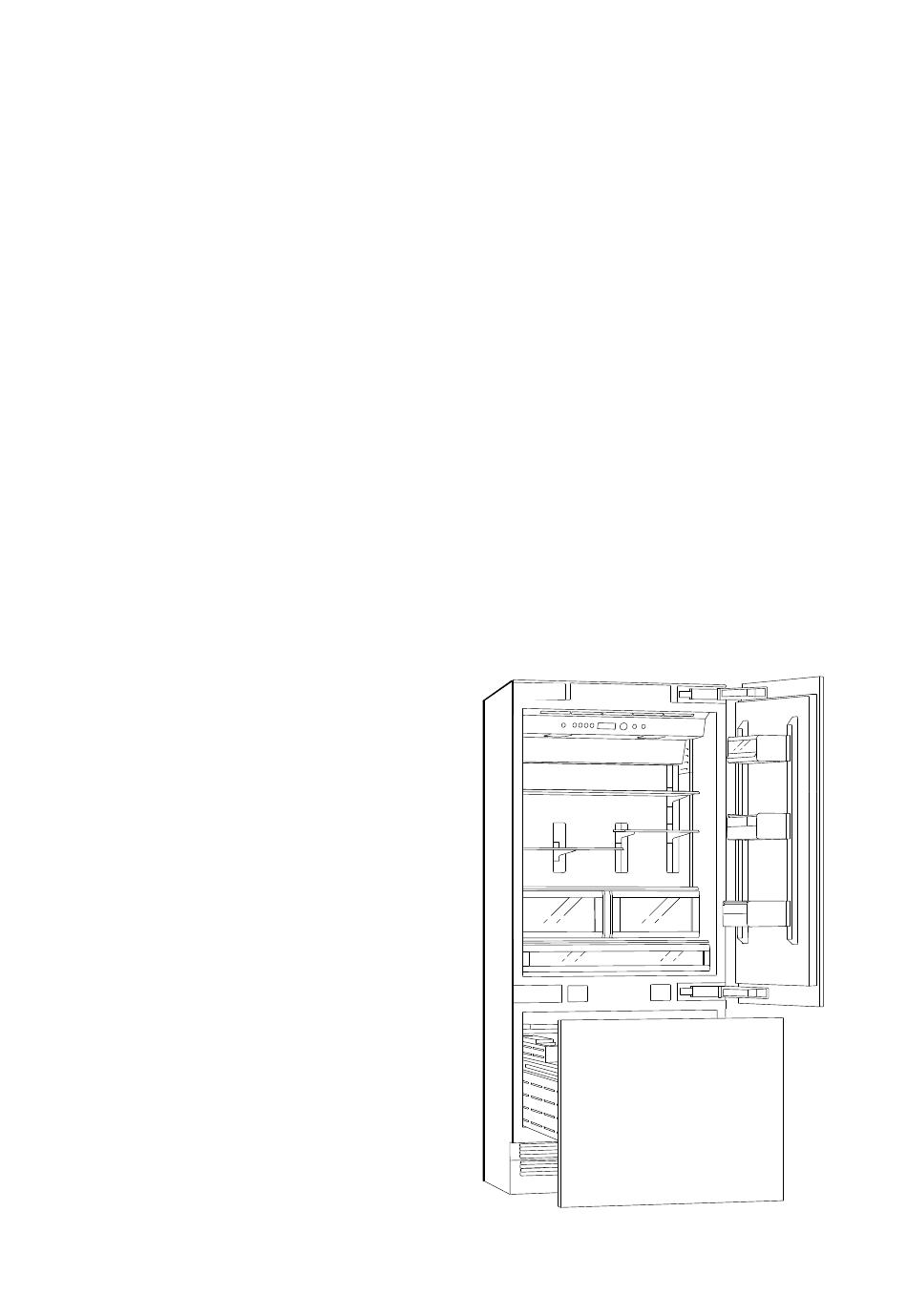

- Page 1 Gaggenau Installation instruction RB 472 RB 492...
-
Page 2: Table Of Contents
Table of Contents Attaching the anti-tipping Safety and warning information ......brackets to the wall ....... 12 Attaching alternative anti-tilt device ..13 Installation Possibilities ........Attaching the edge protectors ..... 13 Stand alone appliance ..........Attaching the fastening sheet (lateral) Side-by-Side set up ........... - Page 3 Fasten the finger protector ....25 Attaching the covers ....... 25 Fitting the air separator......26 Tensioning the hinge springs (refrigerator compartment) ....26 Special installation steps ........27 Changing over the door hinges ....27 Side-by-Side set up ........29 Preparing the water connection ....
-
Page 4: Safety And Warning Information
Safety and warning information ã Caution These mounting instructions are designed to help you install your new appliance. Setting up and mounting this appliance requires The manufacturer cannot be held liable for mounting extensive expertise in various trades (mechanics, which has been improperly carried out. We recommend carpentry, plumbing, electrics). -
Page 5: Installation Possibilities
Installation Possibilities Stand alone appliance with dividing Various installation possibilities are available. These are only limited by the kitchen design and the wall finger protector function. Stand alone appliance Side-by-Side set up – When measuring the dividing wall for model 4, pay attention to the thickness of the furniture front to be mounted in order to avoid damage when opening doors at the same time. -
Page 6: Installing The Appliance
Installing the appliance Installation location Installation niche It is important to keep to the stated dimensions of the ã Caution: installation niche with a view to trouble-free fitting, and The appliance is very heavy. Data relating to the the subsequent appearance of the kitchen furniture frontage. -
Page 7: Electrical Connection
Electrical connection Water connection The socket must be near the appliance and also freely ã Warning: accessible following installation of the appliance. Connect the appliance to a cold water pipe only. The appliance complies with the protection class I. The water may be connected only by a competent fitter Connect the appliance to 220–240 V/50 Hz alternating according to the local regulations of the appropriate current via a correctly installed socket with protective... -
Page 8: Dimensions Of The Installation Niche
Dimensions of the installation niche Appliance 756 mm 762 mm 908 mm 914 mm Important: The lateral niche walls must be completely even and free from bumps. If the niche is formed as a separate part, the side walls must be completely even up to a depth of at least 100 mm and free from bumps. -
Page 9: Tools And Accessories Which Are Needed
Tools and accessories which are needed Tools Scope of delivery – Installation manual Rechargeable screwdriver – Operating instructions – Installation accessories T20 Torx-bit magnetic Additional accessories holder Installation accessories for Side-by-Side installation For permanent connection of two appliances, T20 Torx screwdriver e.g. -
Page 10: Check The Installation Niche
Installation instructions Removing the packaging The following Installation instructions describe mounting steps for various appliance models. Warning: Therefore, deviations may occur from that shown in the diagrams. – The appliance could tilt over when unpacking. – The appliance could tilt over when the Reference is made to specific mounting steps for appliance door is opened. -
Page 11: Transporting The Appliance
Transporting the appliance Installation preparation ã Unpack installation materials and accessories. Warning: To simplify installation, the packages are identified with The appliance is very heavy. Handle it carefully, labels A, B, C and D corresponding with the manual as otherwise people helping to lift it could be hurt sections. -
Page 12: Attaching The Anti-Tipping Brackets To The Wall
Attaching the anti-tilt brackets to the wall ã Warning: Ensure that in the wall area there are no electrical wires or pipes which could be damaged by pipes. Risk of injury or damage! ã Warning: When installing or working with floor anchors always use protective glasses and other protective equipment or protective clothing –... -
Page 13: Attaching Alternative Anti-Tilt Device
Attaching alternative anti-tilt Attaching the edge protectors device To protect the edges of the installation cavity, it is recommended to attach edge protection made of Important note: a suitable material. If the anti-tilt brackets cannot be securely attached, Attach the edge protection with the adhesive tape which a wooden beam can be used above the appliance as was used to attach the accessories to the appliance. -
Page 14: Sliding The Appliance Into The Installation Niche
Sliding the appliance into the installation niche ã Protect the mains lead from getting wedged under Caution: or behind the appliance. Be careful when sliding the appliance into the Recommended procedure: installation niche. Do not damage the water connection or power cord. a) Tie a piece of string onto the power cord and guide the string forwards over the appliance. -
Page 15: Adjusting The Appliance In The Niche
Adjusting the appliance in the The assembly gauge (b) is used to set this height correctly. The upper edge of niche the gauge must be in alignment with the mark on the appliance. Notes: – To ensure that the appliance functions correctly, Unscrew the height-adjustable feet at the front of it must be set level with a spirit level. -
Page 16: Fastening The Appliance To The Side Wall Of The Installation Niche
Fastening the appliance to the side If there enough room on the top of the appliance fix the the lateral bars of the fastening sheets (above) wall of the installation niche to the side of the niche. Screw on the bars of the fastening sheets (lateral) with the cabinet parts located next to them. -
Page 17: Checking That The Finger Guard Moves Easily
Checking that the finger guard These is a special installation step. Instructions are provided after moves easily section D. It is now essential to check that the finger guard moves – Water connection see “Connecting easily. At a later time any required corrections will be the appliance to the water supply”. -
Page 18: Fastening The Plinth Strip
Fastening the plinth strip Aligning the base cover Place base cover on the appliance (do not screw Note: on). Never cover the ventilation cracks in the base panelling. Measure the difference in depth A between the Risk of damage to the appliance. base panelling and the base strip of the adjacent Nominal dimensions to be observed: lower cabinets. -
Page 19: Switching The Appliance On For The First Time
Switching the appliance on for the When attaching the metal strip to the furniture doors, watch first time out for the maximum possible length of the screws and the position of the drill holes. Always carry out screwing The appliance should now be switched on for the first jobs on the most stable part of the furniture door. -
Page 20: Fastening The Adjusting Rib To The Furniture Door (Refrigerator Compartment)
Fastening the adjusting rib to the Fastening the fixing rib to the furniture door furniture door (refrigerator compartment) (refrigerator compartment) Measure distance A between the adjusting rail and Note: the furniture parts above. The fixing ribs are pre-assembled for stainless steel doors. -
Page 21: Fastening The Adjusting Rib To The Furniture Door (Freezer Compartment)
Lengthen the markings to the parallels using an Tightly screw the adjusting rib. angle of contact. Apply the fixing ribs (b) and mark out the holes. Pre-drill the holes. Screw on the fixing ribs (b). Notes: – Attach the adjusting rib with at least 10 screws on the furniture door. -
Page 22: Mounting The Furniture Door (Freezer Compartment)
Transfer the position of the fastening screws on the 11. Mounting the furniture door outer edge of the appliance door to the furniture (freezer compartment) door and mark. Note: Now attach the door handles which should have been screwed from behind! Remove fixing bracket (a) from the appliance door. -
Page 23: Mounting The Furniture Door (Refrigerator Compartment)
Hang furniture door with the adjusting rail onto the 10. Screw nuts onto the threaded rods of the adjusting threaded rods (1.). rail and tighten! This way, the lateral adjustment of the door is fixed. Lower furniture door and push the fixing brackets down over the fastening screws on the appliance door (2.). -
Page 24: 13. Screw On The Lower Fixing Angle
Hang furniture door with the adjusting rail onto the 10. Screw nuts onto the threaded rods of the adjusting threaded rods (1.). rail and tighten! This way, the lateral adjustment of the door is fixed. Lower furniture door and push the fixing brackets down over the fastening screws on the appliance door (2.). -
Page 25: Fasten The Finger Protector
Fasten the finger protector Attach the finger protector with the screws on the fixing brackets. When positioning the finger protector at the door, ensure that the fixing holes in the cover strip correspond with the boreholes in the fixing brackets. Mark now the bottom edge of the finger protector and shorten accordingly. -
Page 26: Fitting The Air Separator
Fitting the air separator Only in the case of individual appliances: Screw on the angle (a) for fastening the cover ribs. Using the air separator, air which is supplied and drawn from the appliance is fed seperately, in order to avoid reduced operating capacity. -
Page 27: Special Installation Steps
Special installation steps Changing over the door hinges Unscrew the door. (1.) and remove (2.). ã Warning: Before carrying out any work to the door hinges, release the spring pressure – risk of injury! Note: It is easier to change over the door hinges if the appliance is placed on its back (place transport pallet underneath). - Page 28 Swap the screw for the fixing bracket to the other Tighten the screw. In addition, set the screw from I side. to 0. Attach the hinges to the appliance. Exchange the hinges crosswise! 10. Attach the hinge covers. Screw the door to the hinges.
-
Page 29: Side-By-Side Set Up
Side-by-Side set up Unscrewing the base panelling. If a Side-by-Side set up of two appliances is envisaged, connect the two appliances to one another now. Unpack the installation accessories for Side-by- Side installation and check that none of the accessories is missing. Keep ready the anti-tilt brackets as an installation aid. - Page 30 Screw the connection clamps from the installation Push the appliances together until the angle accessories for Side-by-Side installation to the side brackets interlock. of both appliances. Note the position of the clamps! Insert pins through the angle brackets. 10. Push front of appliances completely together. Screw the angle brackets from the installation accessories for Side-by-Side installation to the handle side of both appliances.
-
Page 31: Preparing The Water Connection
Preparing the water connection 12. Press appliances completely together by gripping the installation aids with water pump pliers. (only for appliances which require a water connection) 13. When the appliances have been pushed completely together, push the bar from above Note: through the connection clamps. -
Page 32: Connecting The Appliance To The Water Supply
Connecting the appliance to the water supply Note: Do not kink the connection pipe when bending it, otherwise there is a risk of leaks and water damage. Remove the plugs from the appliance connec- tion (1.). Lay the water hose such that it ends at the appliance connection (2.). - Page 33 Gaggenau Hausgeräte GmbH Carl-Wery-Straße 34 D- 81739 München www.gaggenau.com 8001 070 103 Subject to alterations. en (9704 )
